89. 3RD and 4TH Clutch Accumulator Housing Assemble

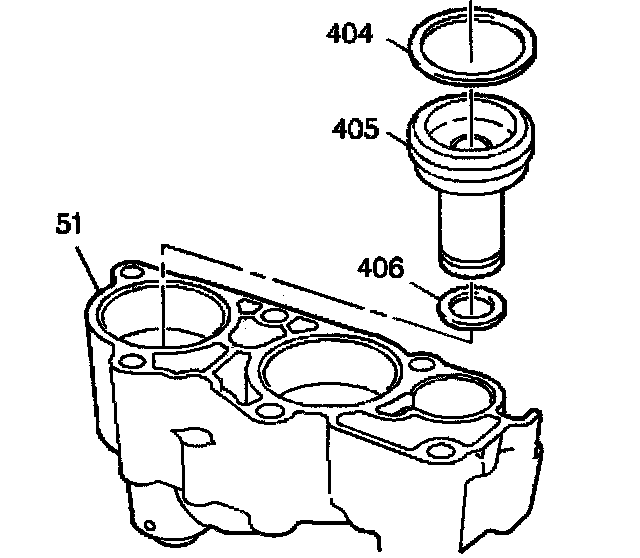

1. Install the 3rd clutch accumulator piston inner (406) and outer (404) seals. Lubricate the 3rd clutch accumulator piston. seals (404, 406) with DEXRON III automatic transmission fluid.
2. Install the 3rd clutch accumulator piston (405).





3. Install the 4th clutch accumulator piston seal (404). Lubricate the 4th clutch accumulator piston seal (404) with DEXRON III automatic transmission fluid.
4. Assemble the 4th clutch accumulator piston pin (408) with the 4th clutch accumulator piston (407).
5. Install the 4th clutch accumulator piston assembly.
6. Install the 4th clutch accumulator piston pin retainer ring (402).
