75. Transmission Oil Pump Body Flatness Check
75. Transmission Oil Pump Body Flatness Check

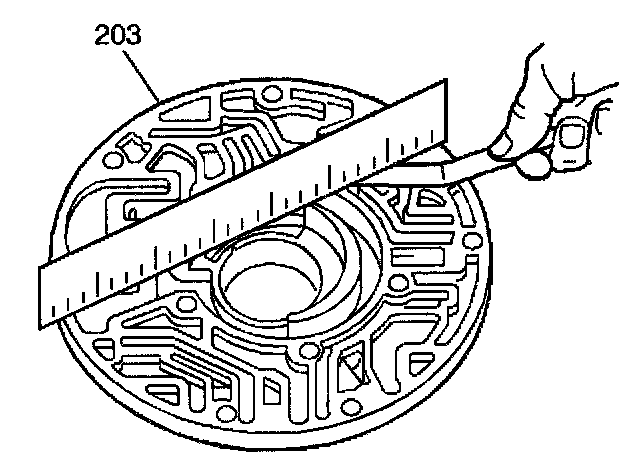

Inspect the oil pump body (203) face with a straight edge and a feeler gauge to ensure flatness.
