45. Manual 2-1 Band Installation

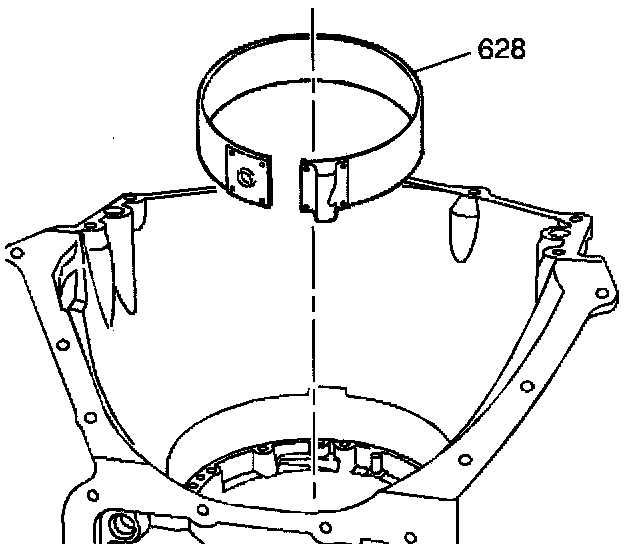

Install the manual 2-1 band (628) into the transmission case. Inspect for proper alignment with the anchor pin and inspect for freedom of movement.
