22. Direct Clutch Assembly Removal

^ Tools Required
- J 38733 Direct Clutch Assembly Remover/Installer

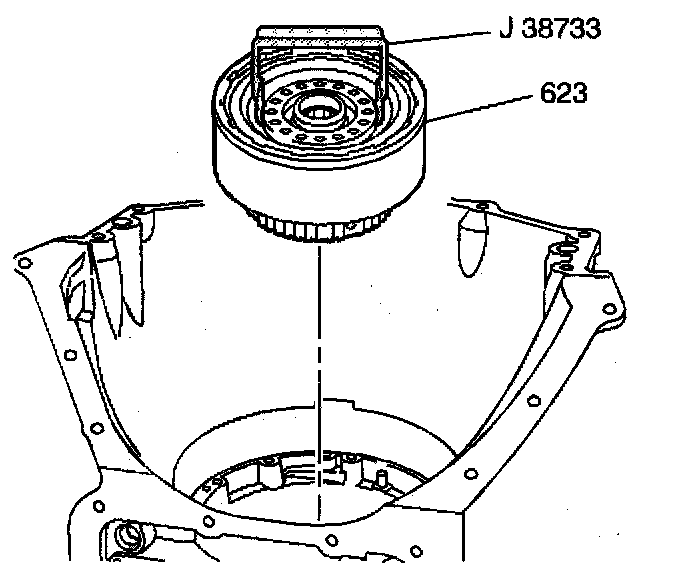

Remove the direct clutch housing assembly (623) using the J 38733.
