4L60-E/4L65-E Automatic Transmission
>>
Repair Instructions
>>

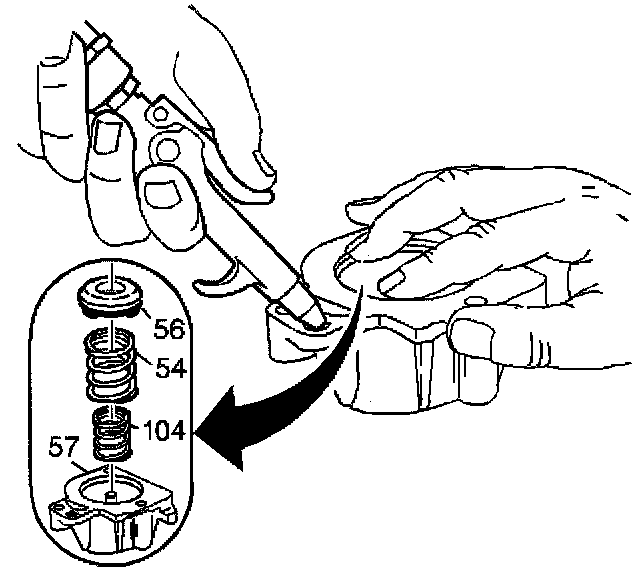

76. 1-2 Accumulator Disassemble
76. 1-2 Accumulator Disassemble
1.
Blow air into the 1-2 accumulator housing (57) to remove the 1-2 accumulator piston (56).
2.
Remove the 1-2 inner (104) and outer (54) accumulator springs.
