Automatic Transmission-4L60-E

Removal Procedure

^ Tools Required
- J29714-A Servo Cover Depressor

1. Raise the vehicle. Refer to Vehicle Lifting.

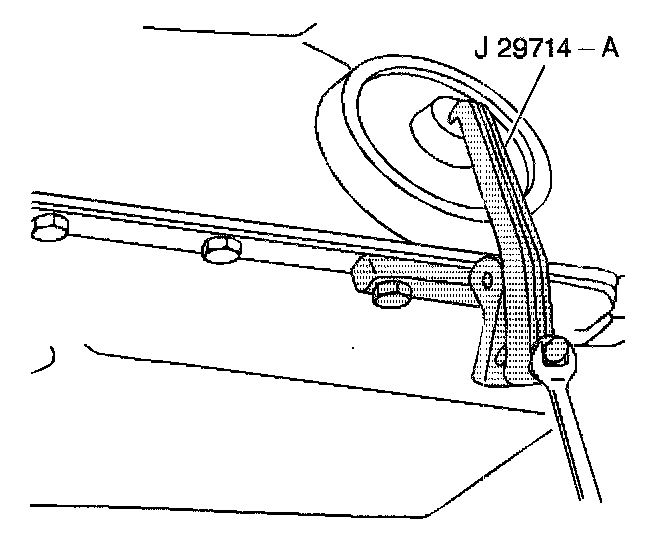

2. Install the J29714-A.
3. Tighten the bolt in order to compress the servo cover.
4. Remove the servo cover retaining ring.
5. Remove the J29714-A.

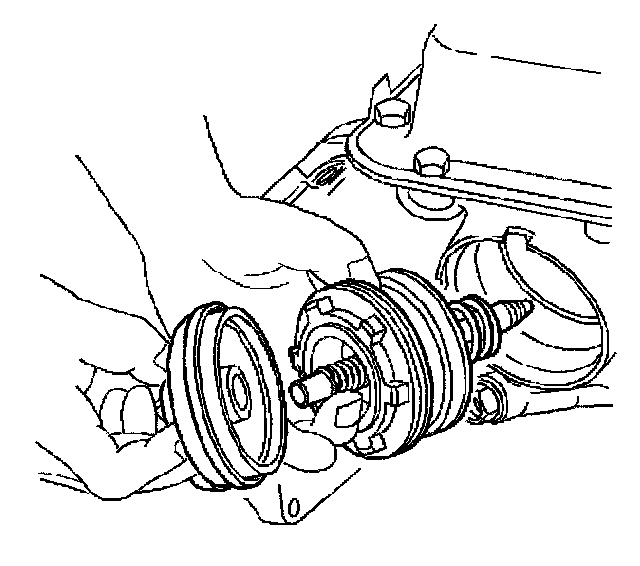

6. Remove the servo cover and the O-ring seal. If the servo cover seems to be hung up on the seal, cut and remove the O-ring seal before removing the cover.
7. Remove the 2-4 servo assembly.

Installation Procedure

^ Tools Required
- J29714-A Servo Cover Compressor

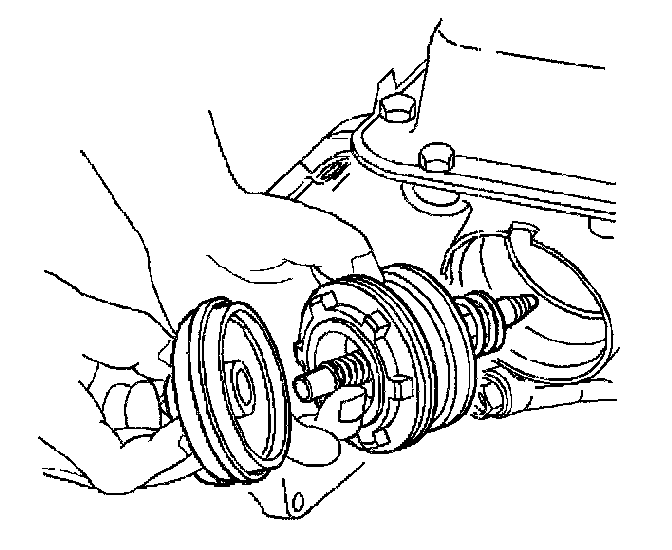

1. Install the 2-4 servo assembly into the 2-4 servo bore.
2. Install the J29714-A.





3. Tighten the bolt in order to compress the servo cover.
4. Install the servo cover retaining ring.
5. Remove the J29714-A from the oil pan flange.

Notice: Refer to Fastener Notice in Service Precautions.

6. Install the oil pan bolt.
^ Tighten the oil pan bolt to 11 Nm (97 inch lbs.).
7. Lower the vehicle.
8. Check the automatic transmission fluid level. Refer to Fluid Capacity.
