Trim Covers, Shift Lever Seal - Assemble

ASSEMBLY PROCEDURE

- Tools Required

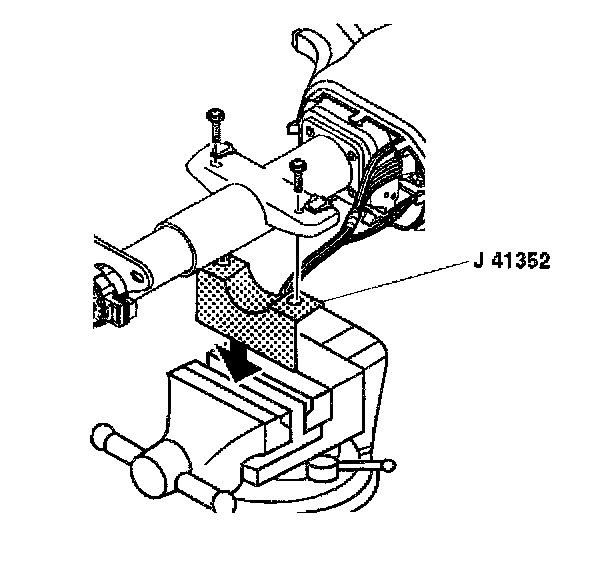

- J 41352 Modular Column Holding Fixture

1. Install the upper shroud (2) onto the steering column.

NOTICE: Refer to Fastener Notice in Service Precautions.

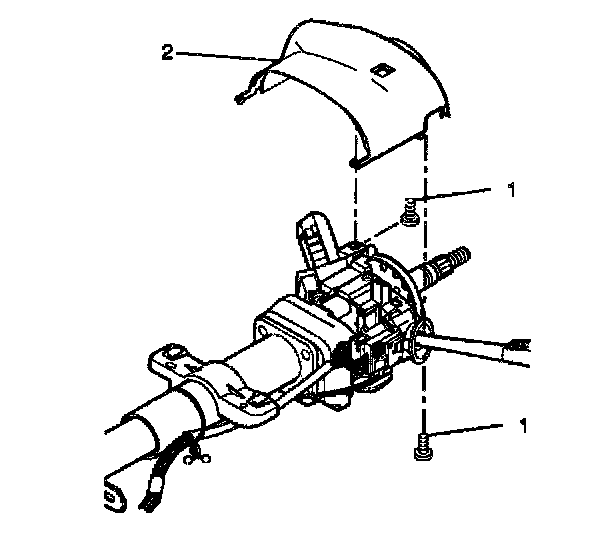

2. Screw the 2 TORX(R) head screws (1) into the upper shroud (2).
- Tighten the 2 TORX(R) head screws to 1.5 Nm (13 inch lbs.).





3. Install the shroud protector (1) onto the lower shroud (2).

IMPORTANT: The shift lever seal must be seated in the shrouds.

4. Install the lower shroud onto the upper shroud.
5. Match the tab slots on the lower shroud with the locking tabs on the upper shroud.
6. Tilt the lower shroud up.





7. Slide the lower shroud forward until the locking tabs snap into the tab slots.

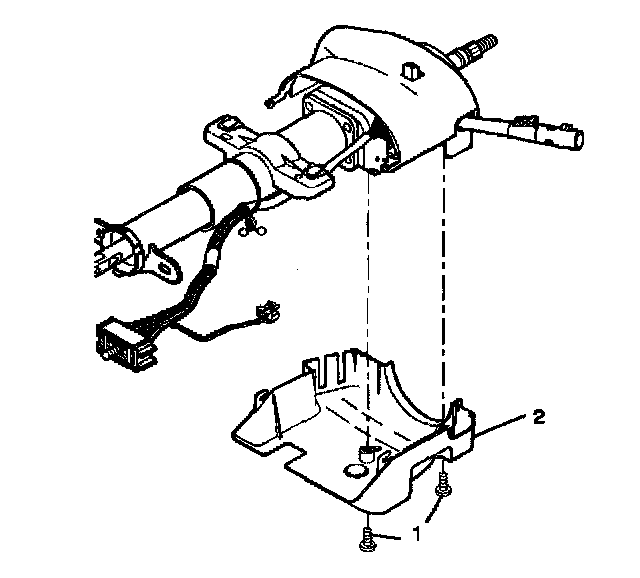

8. Screw the 2 pan head tapping screws (1) into the lower shroud (2).
- Tighten the 2 pan head tapping screws to 3.5 Nm (31 inch lbs.).





9. Remove the steering column and J41352 from the vise.
