Underhood Fuse Relay Center Connector
Underhood Fuse Relay Center Connector

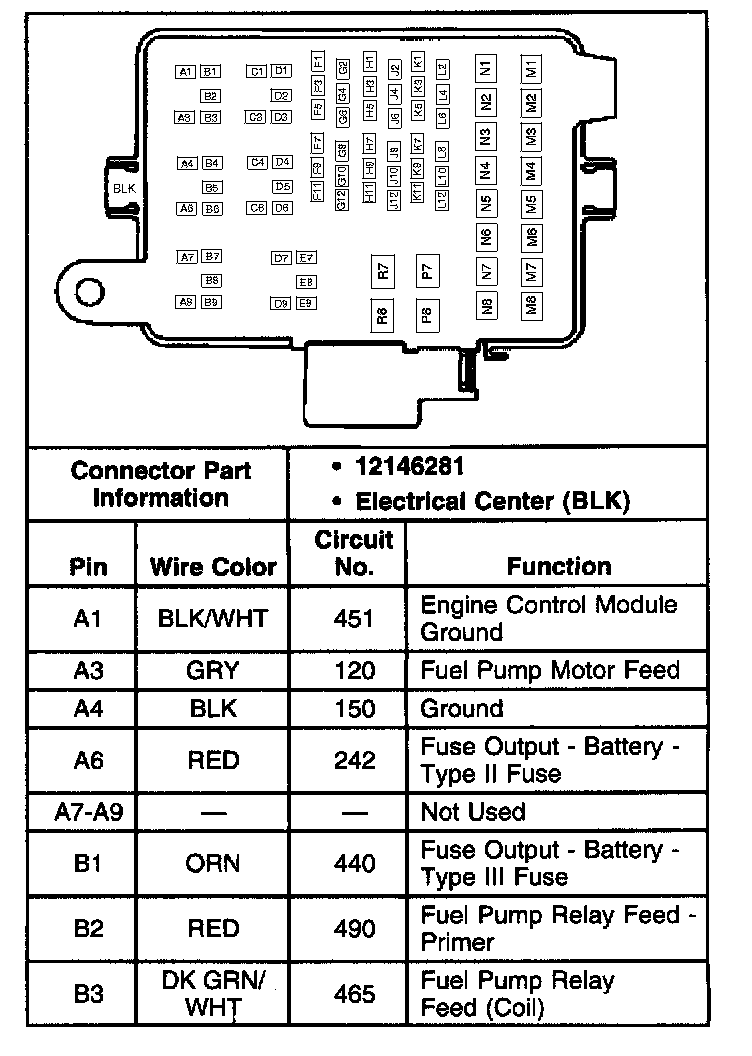

Underhood Fuse Relay Center Connector (Part 1 Of 3):

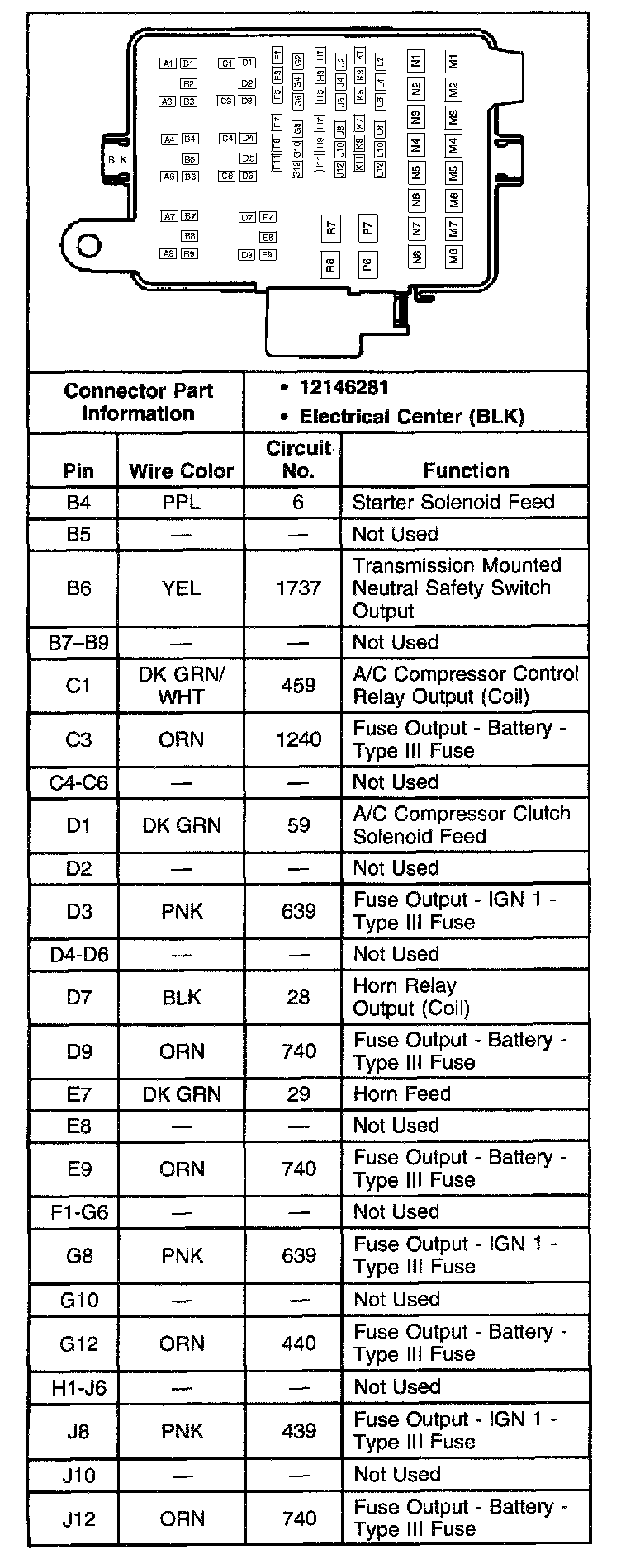

Underhood Fuse Relay Center Connector (Part 2 Of 3):

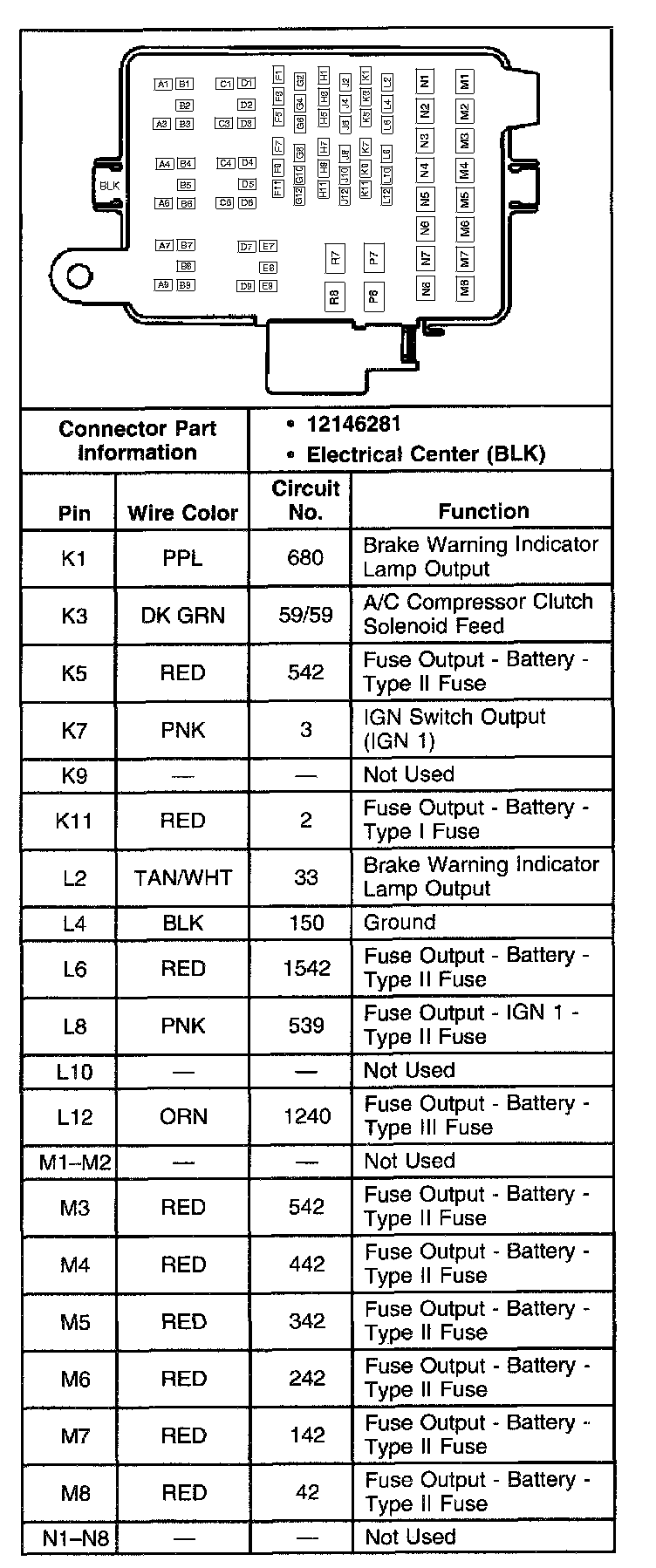

Underhood Fuse Relay Center Connector (Part 3 Of 3):
