FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
1999
>>
Express 1 Ton Van V8-5.7L VIN R
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse Block
>>
Diagrams
>>
IP Fuse Block Connector
IP Fuse Block Connector

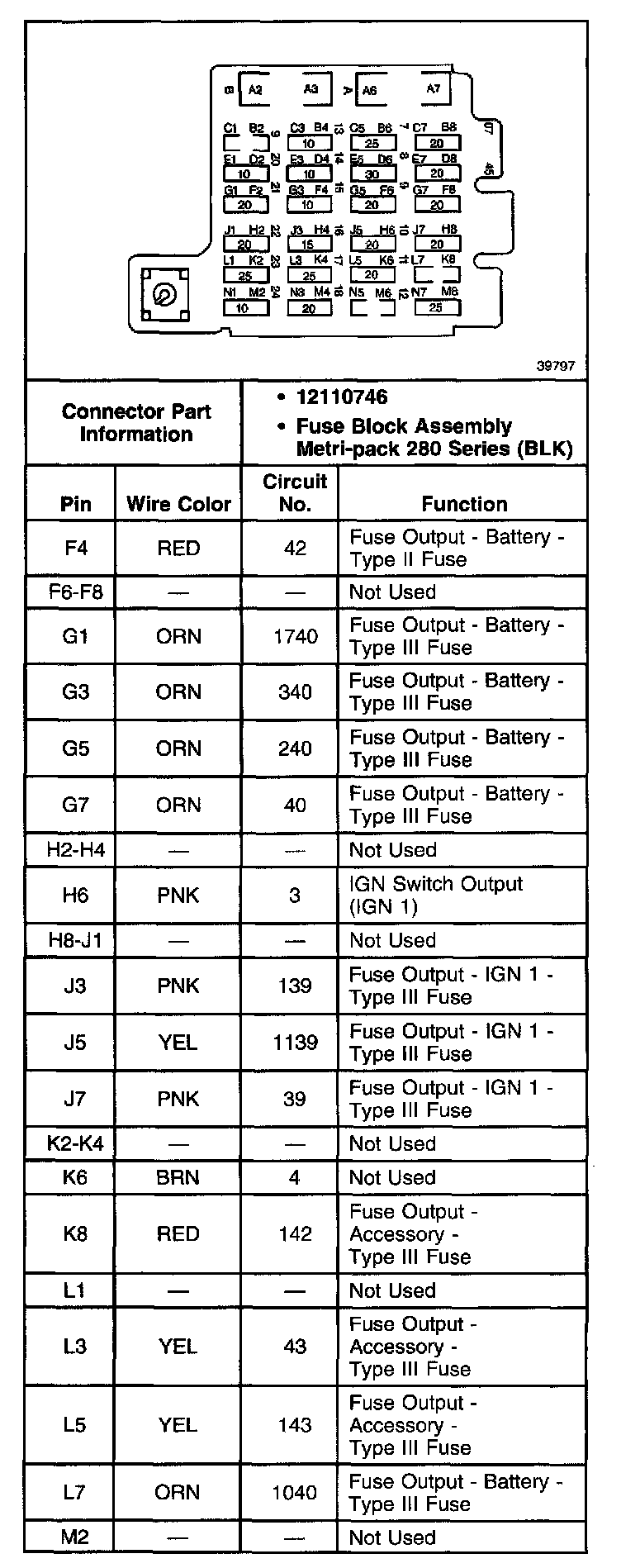

IP Fuse Block Connector (Gasoline) (Part 1 Of 3):

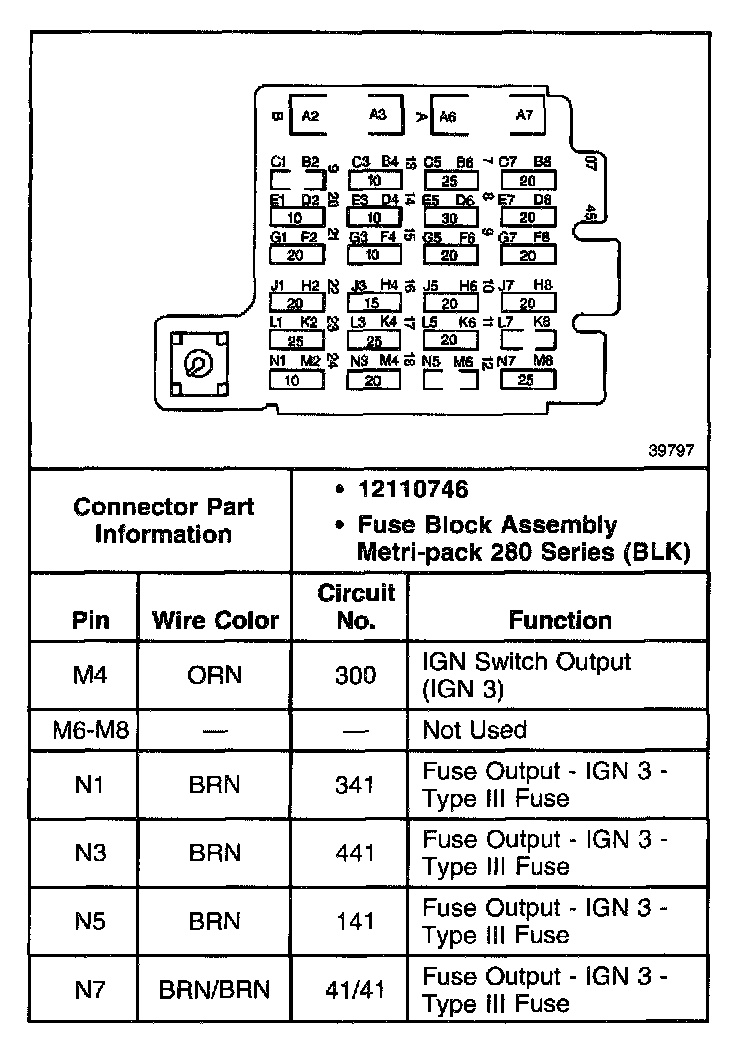

IP Fuse Block Connector (Gasoline) (Part 2 Of 3):
IP Fuse Block Connector (Gasoline) (Part 3 Of 3):
