Lighting Control

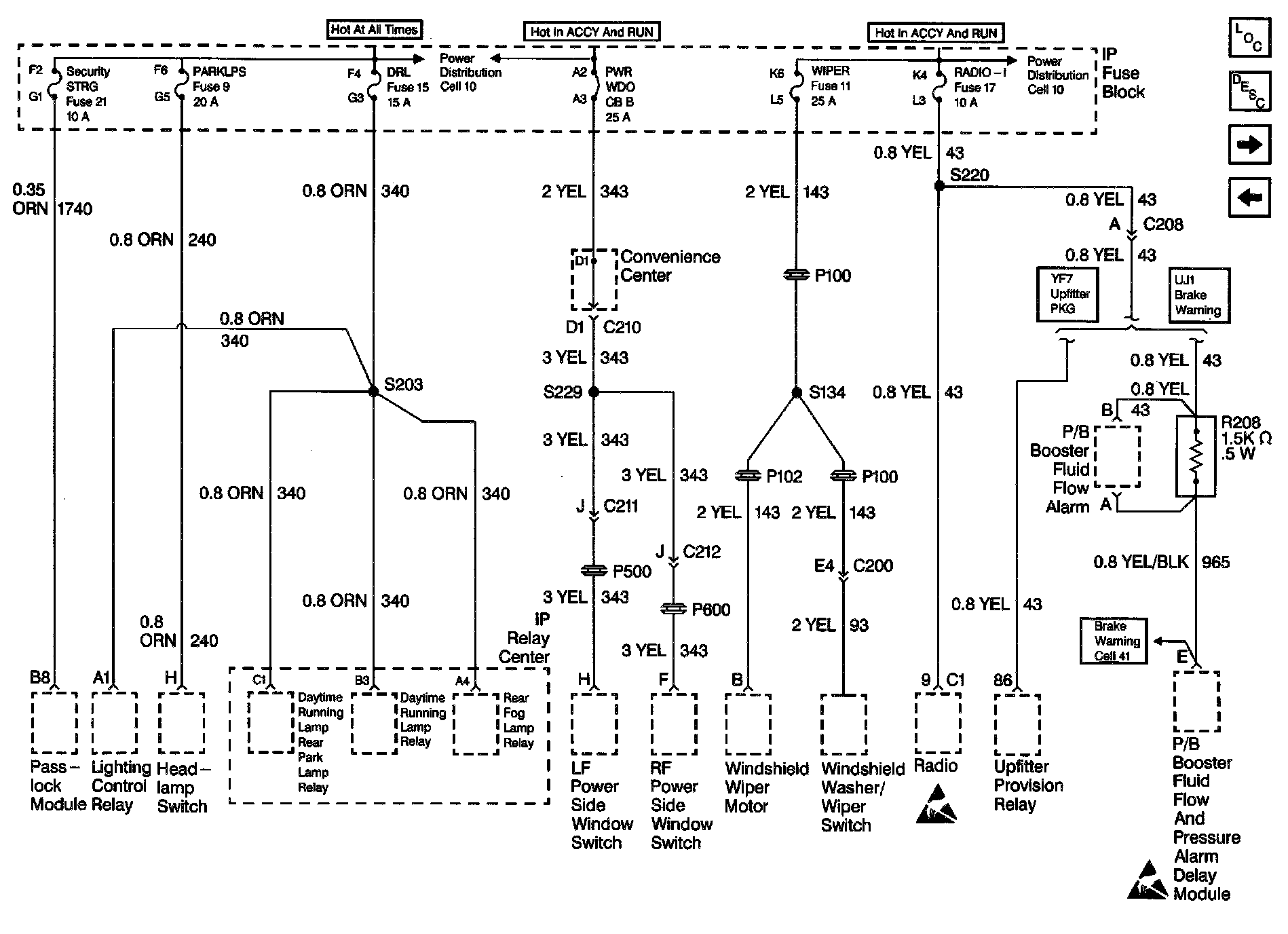

Fuse Block Details Schematics (Export): Security STRG, Park Lamps, DRL , Power Window, CB B Wiper, Radio-1:
