Home >> Chevy Truck >> 1999 >> Express 1 Ton Van V8-5.7L VIN R >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution Diagrams >> Domestic >> Grounds By Number >> Navigational Aids >> AU >> "AU" Source

"AU" Source

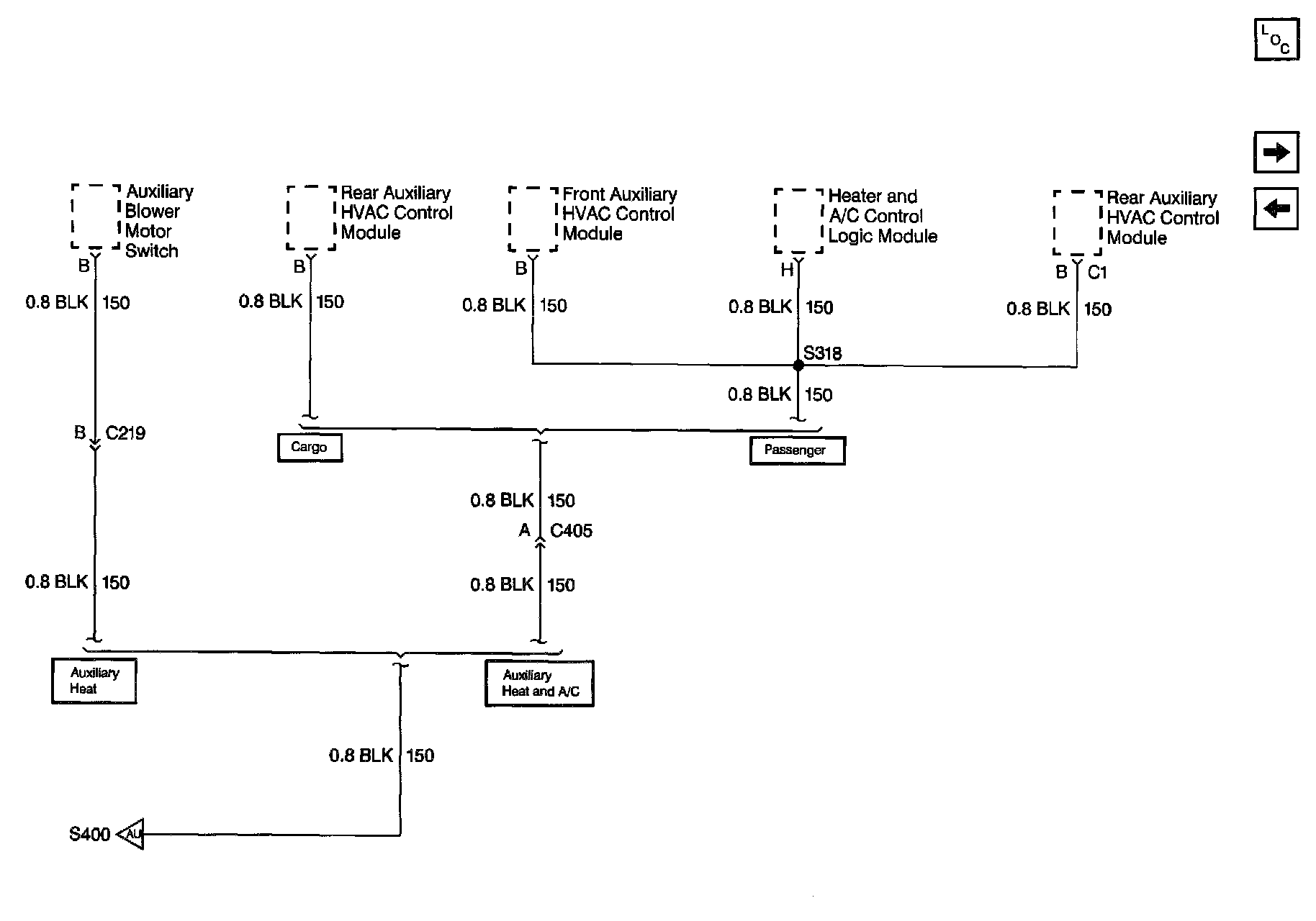

Ground Distribution Schematics (Domestic): C219, C405 (G400):
