Generator Brace Replacement

REMOVAL PROCEDURE

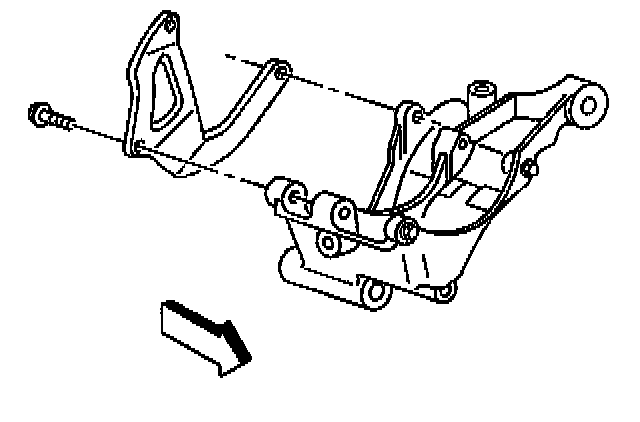

1. Remove the generator from the engine.
2. Remove the generator bracket from the engine.
3. Remove the generator brace retaining bolts from the generator bracket.
4. Remove the generator brace.

INSTALLATION PROCEDURE
1. Install the generator brace.

NOTE: Refer to Fastener Notice in Cautions and Notices.

2. Install the generator brace retaining bolts to the generator bracket.

Tighten
Tighten the generator brace retaining bolts to 50 N.m (37 lb ft).

3. Remove the generator bracket from the engine.
4. Remove the generator from the engine.
