End Play Specifications

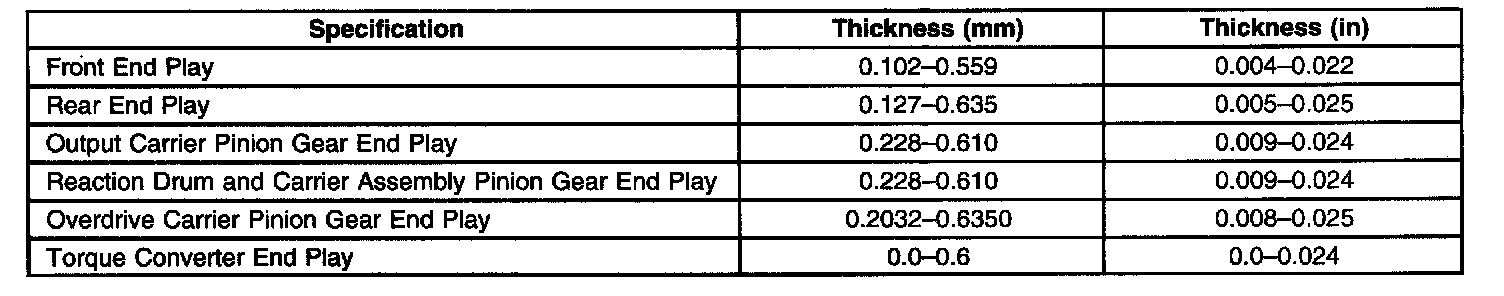

End Play Specifications

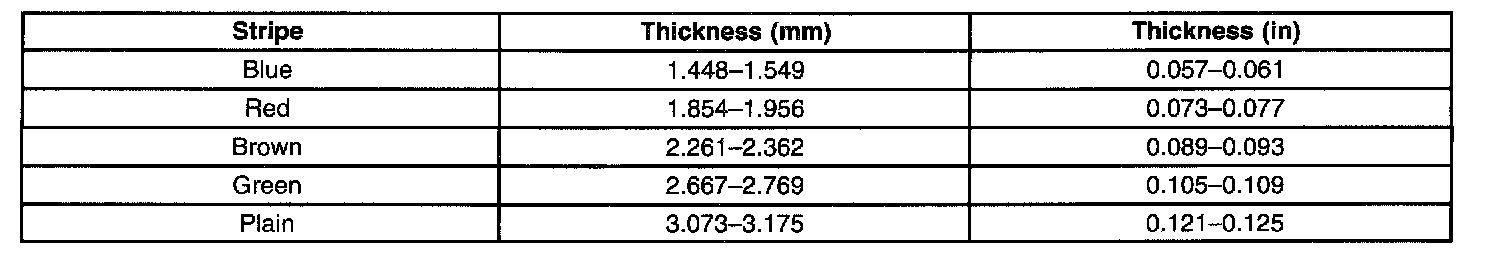

Overrun Clutch Housing Selective Thrust Washer Specifications






Output Shaft Selective Thrust Washer Specifications
