Starter Motor Usage (Solenoid Switch Specifications 28 MT)

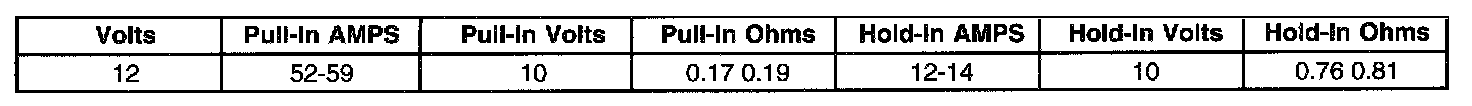

28-MT Starter Solenoid Switch Specifications:
