Parking Brake Warning Switch: Service and Repair

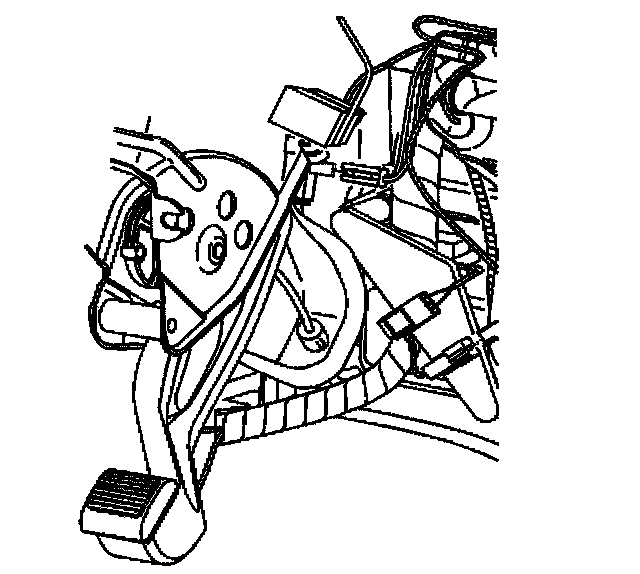

REMOVAL PROCEDURE

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.

1. Remove the negative battery cable.





2. Remove the left kick panel.
3. Remove the electrical connector.
4. Remove the retainer from the switch.
5. Remove the parking brake indicator switch from the vehicle.

INSTALLATION PROCEDURE





1. Connect the parking brake indicator switch to the vehicle.

NOTICE: Refer to Fastener Notice in Service Precautions.

2. Connect the retainer to the switch.

^ Tighten the retaining screw to 4 Nm (35 inch lbs.).

3. Install the electrical connector.
4. Install the left kick panel.
5. Install the negative battery cable.
