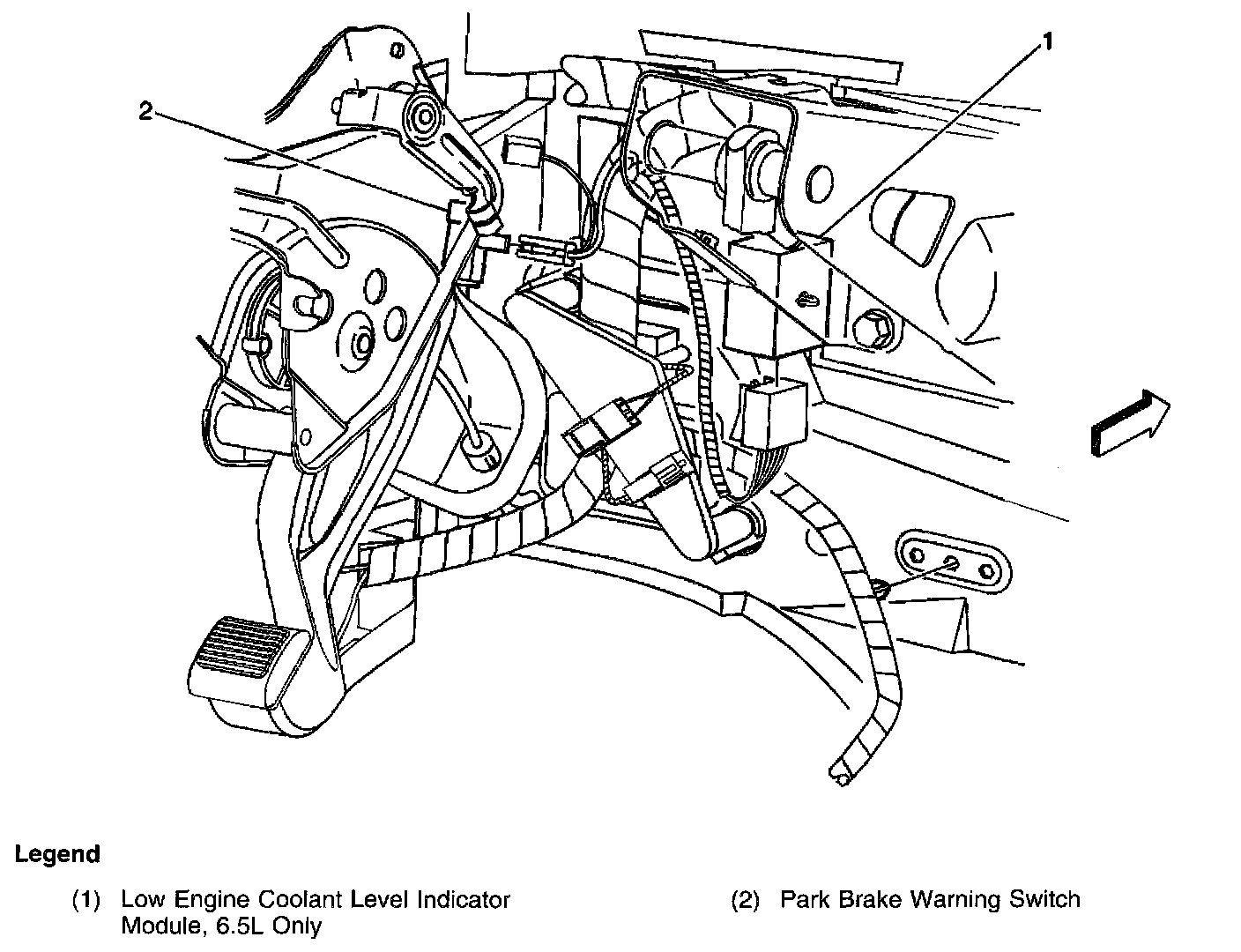

Parking Brake Warning Switch: Locations

Power Brake Fluid Flow Alarm And Module:




Instrument Panel, Driver Outlet Knee Bolster Bracket:





Near the left kick panel on the parking brake lever
