Removal Procedure

Important: Disable the SIR system. Refer to Disabling the SIR System.

1. Remove the steering wheel.
2. Remove the tilt lever (If equipped).

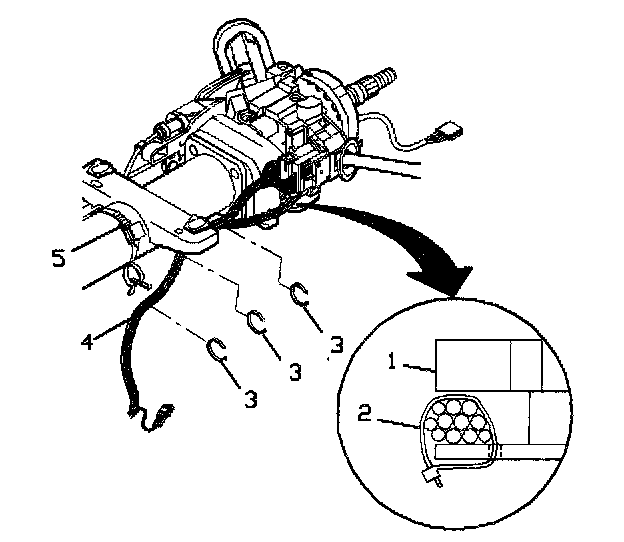

3. Pop the wire harness assembly (4) out of the wire harness strap (5).
4. Remove the 3 wire harness straps (3) from the wire harness assembly.
5. Remove the wire harness strap (2) from the upper tilt head assembly (1).

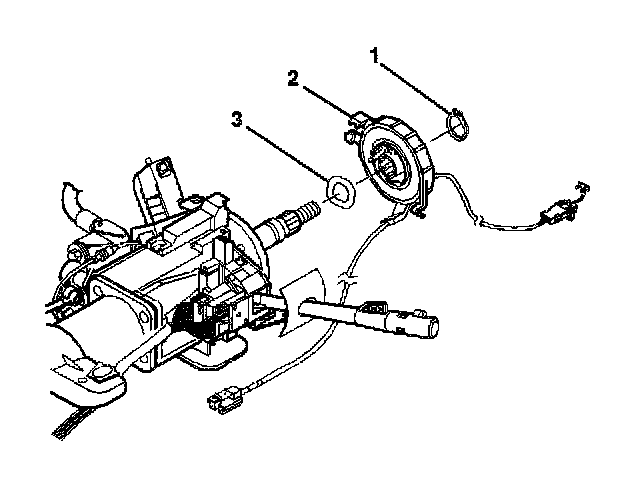

6. Remove the coil assembly retaining clip (1).
7. Remove the coil assembly (2).
8. Remove the wave washer (3).
