Audible Warning Device Control Module: Service and Repair

Multifunction Alarm Module Replacement





REMOVAL PROCEDURE
1. Remove the instrument panel driver knee bolster panel.

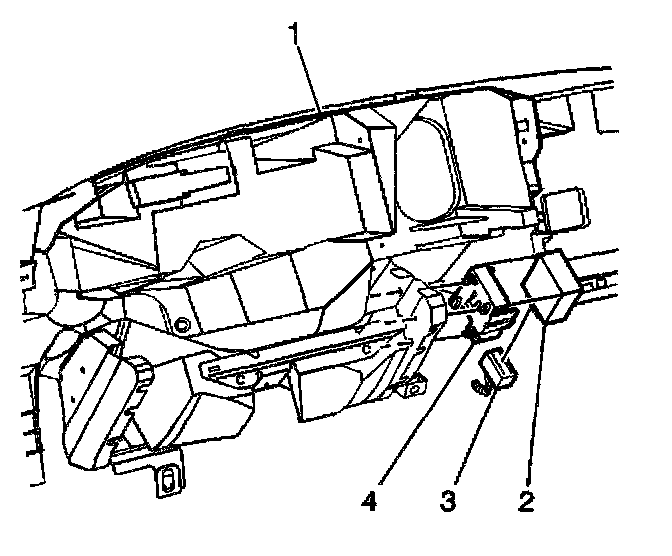

2. Disconnect the multifunction audio alarm module (2) from the retainer on the left inside knee bolster bracket (4).
3. Disconnect the electrical connector (3) from the multifunction audio alarm module (2).
4. Remove the multifunction audio alarm module (2) from the vehicle.

INSTALLATION PROCEDURE
1. Install the multifunction audio alarm module (2) to the vehicle.
2. Connect the electrical connector (3) to the multifunction audio alarm module (2).
3. Connect the multifunction audio alarm module (2) to the retainer (4) on the left inside knee bolster bracket.
4. Install the instrument panel driver knee bolster panel.
