Home >> Chevy Truck >> 1999 >> Express 1 Ton Van V8-5.7L VIN R >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - HVAC >> Blower Motor Relay >> Diagrams >> Auxiliary Blower Motor Relay, Low/Medium/High Connector

Auxiliary Blower Motor Relay, Low/Medium/High Connector

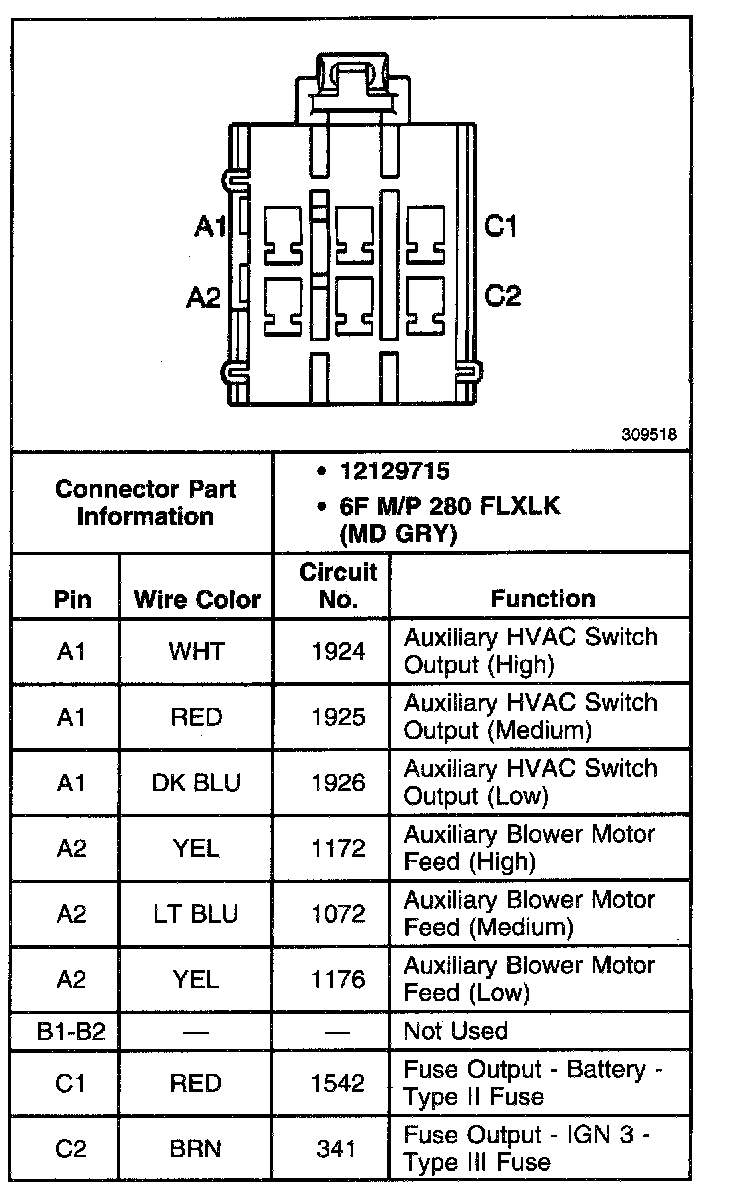

Auxiliary Blower Motor Relay, Low/Medium/High Connectors:
