Brake Switch - TCC: Locations

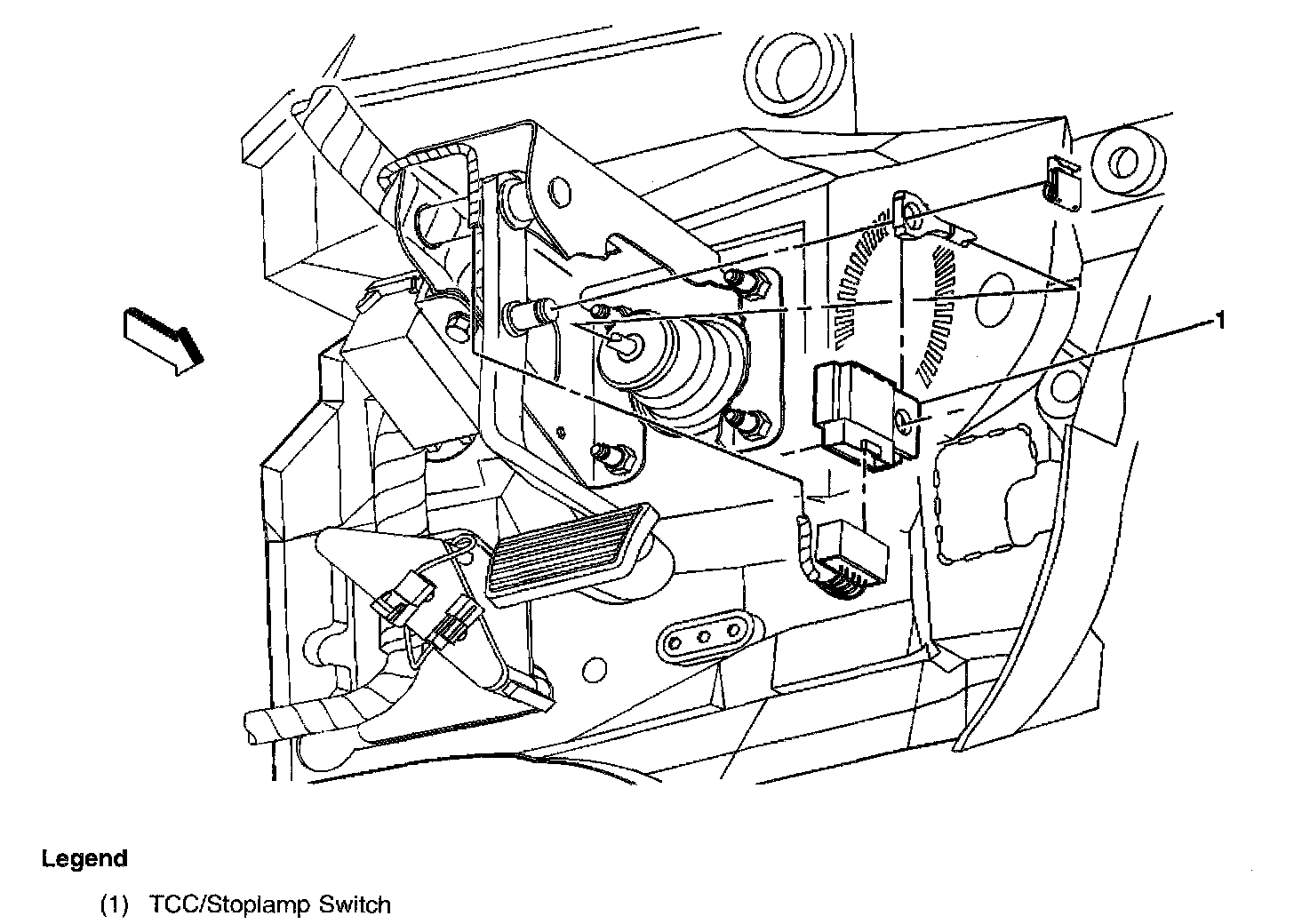

TCC/Stoplamp Switch:





Below the center of the I/P, near the brake pedal lever
