4L60-E/4L65-E Automatic Transmission

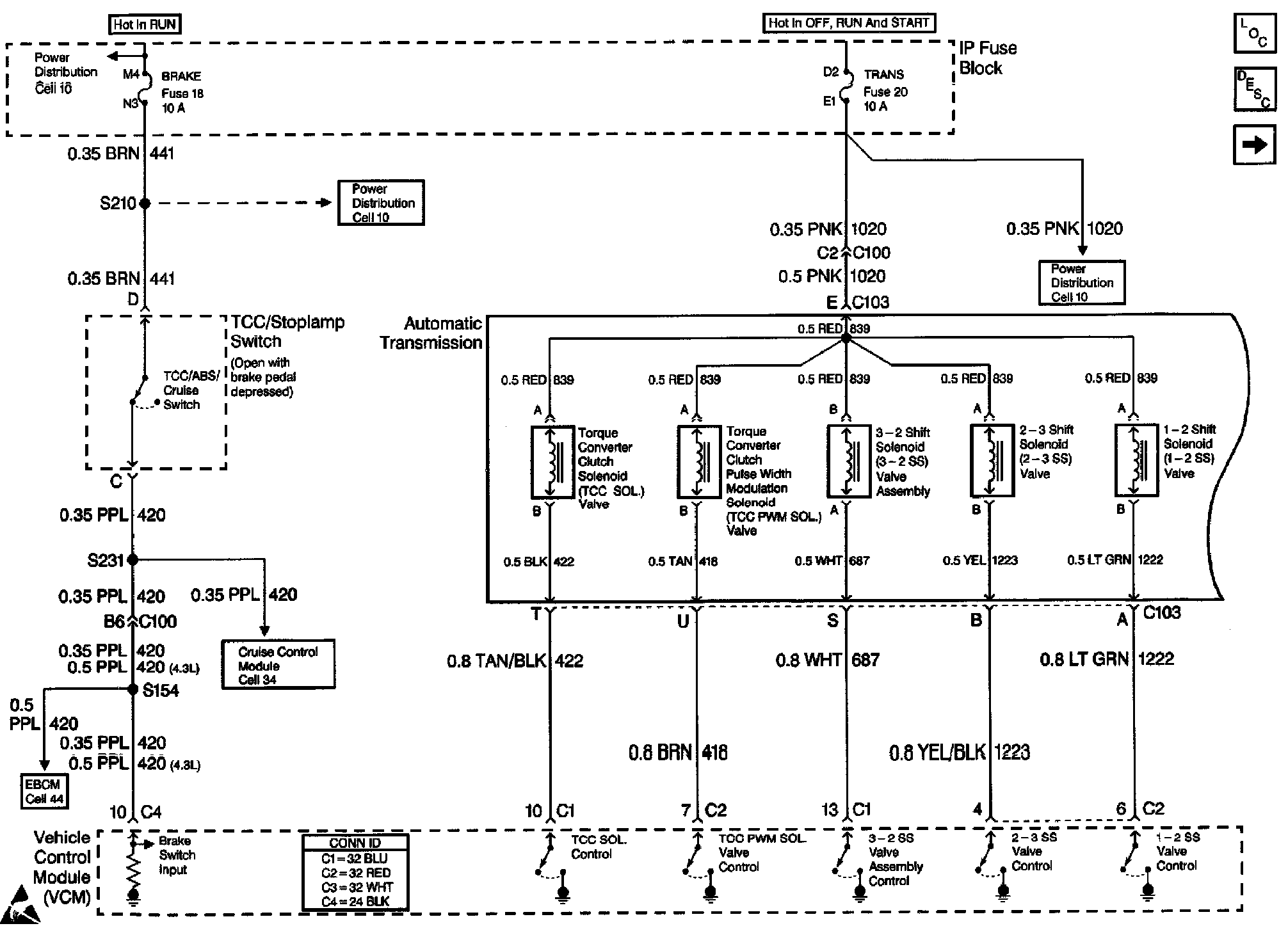

Automatic Transmission Controls Schematics (Cell 39: PWR and Solenoids)

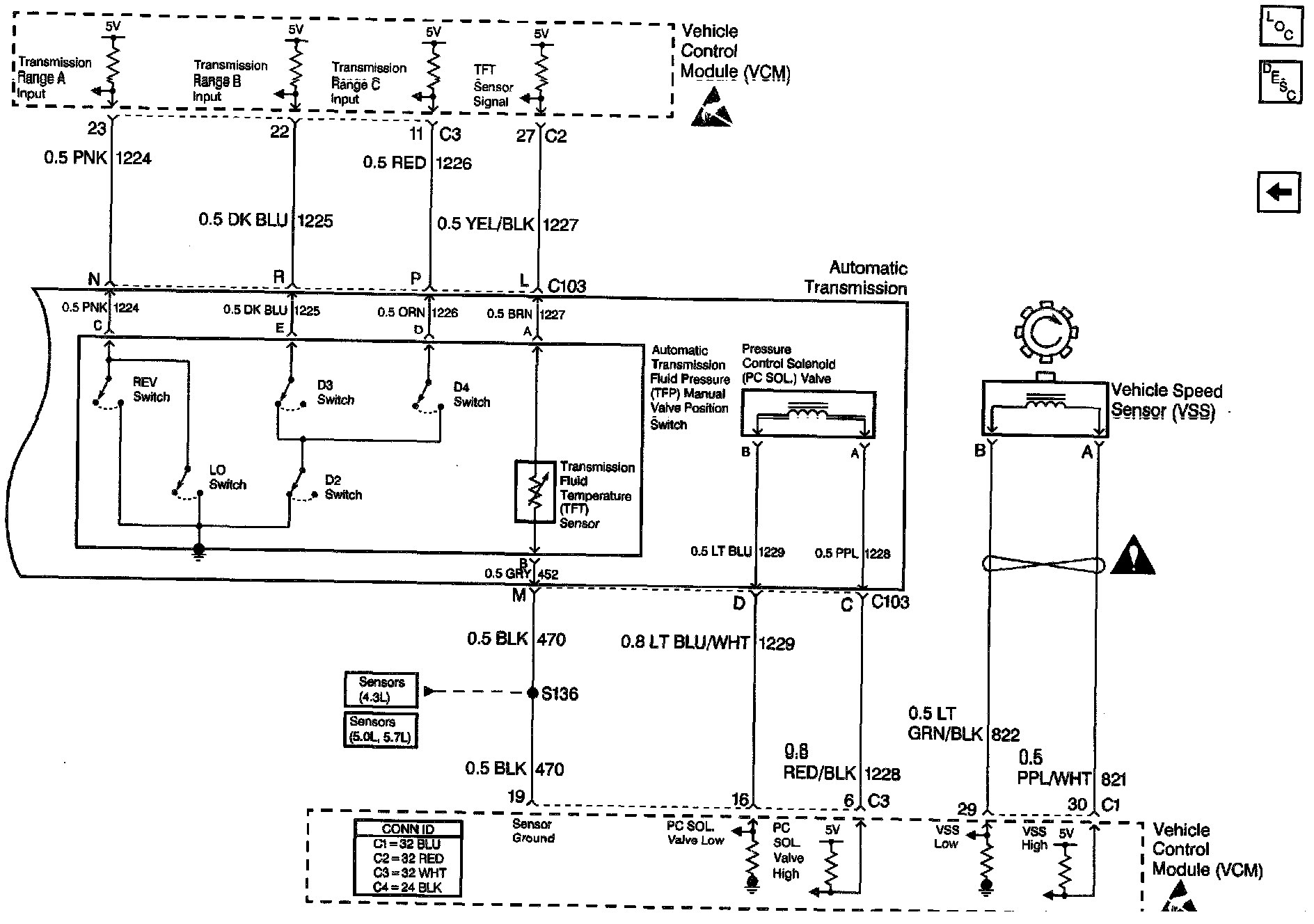

Automatic Transmission Controls Schematics (Cell 39: Switches And VSS)
