4L80-E/4L85-E Automatic Transmission

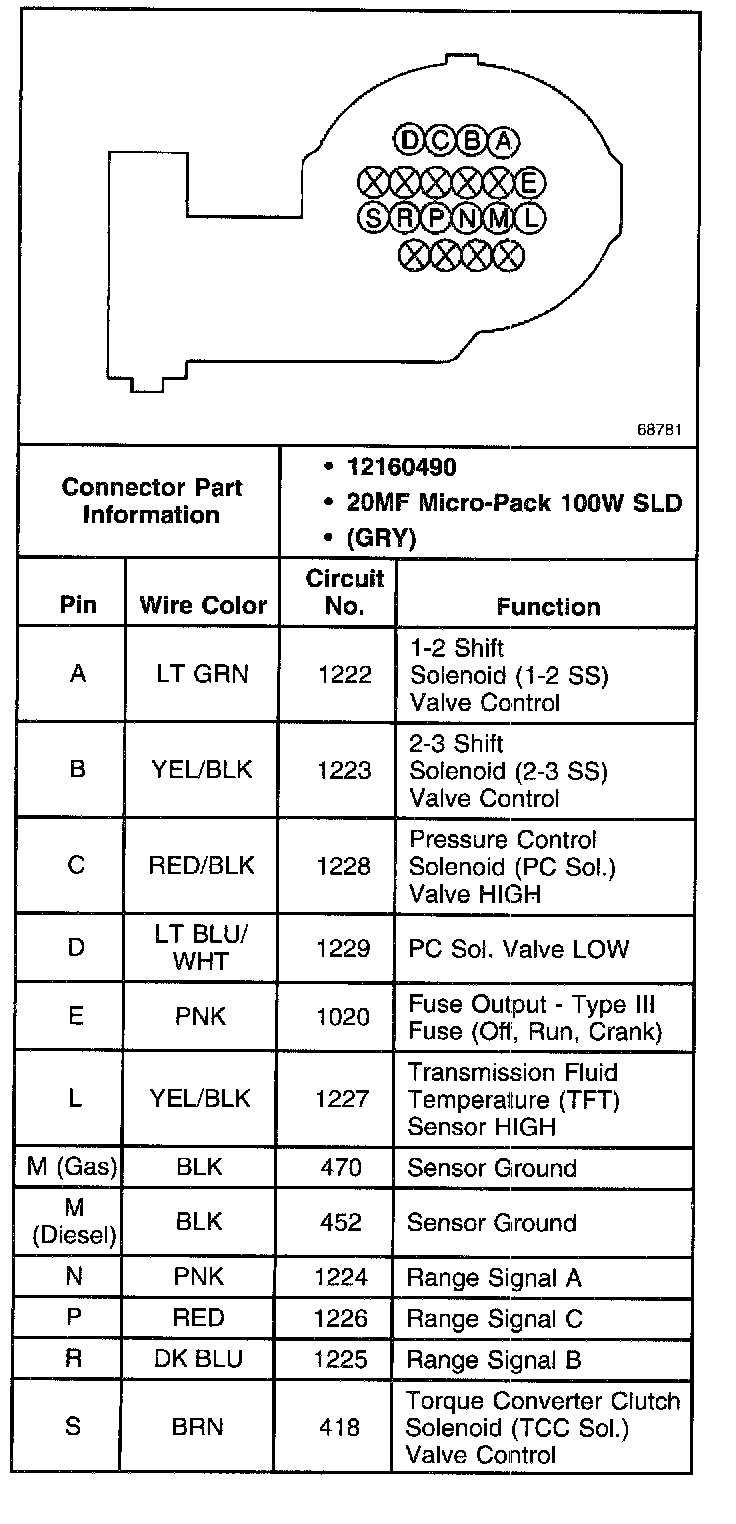

Inline Harness Connector C103, Engine Side

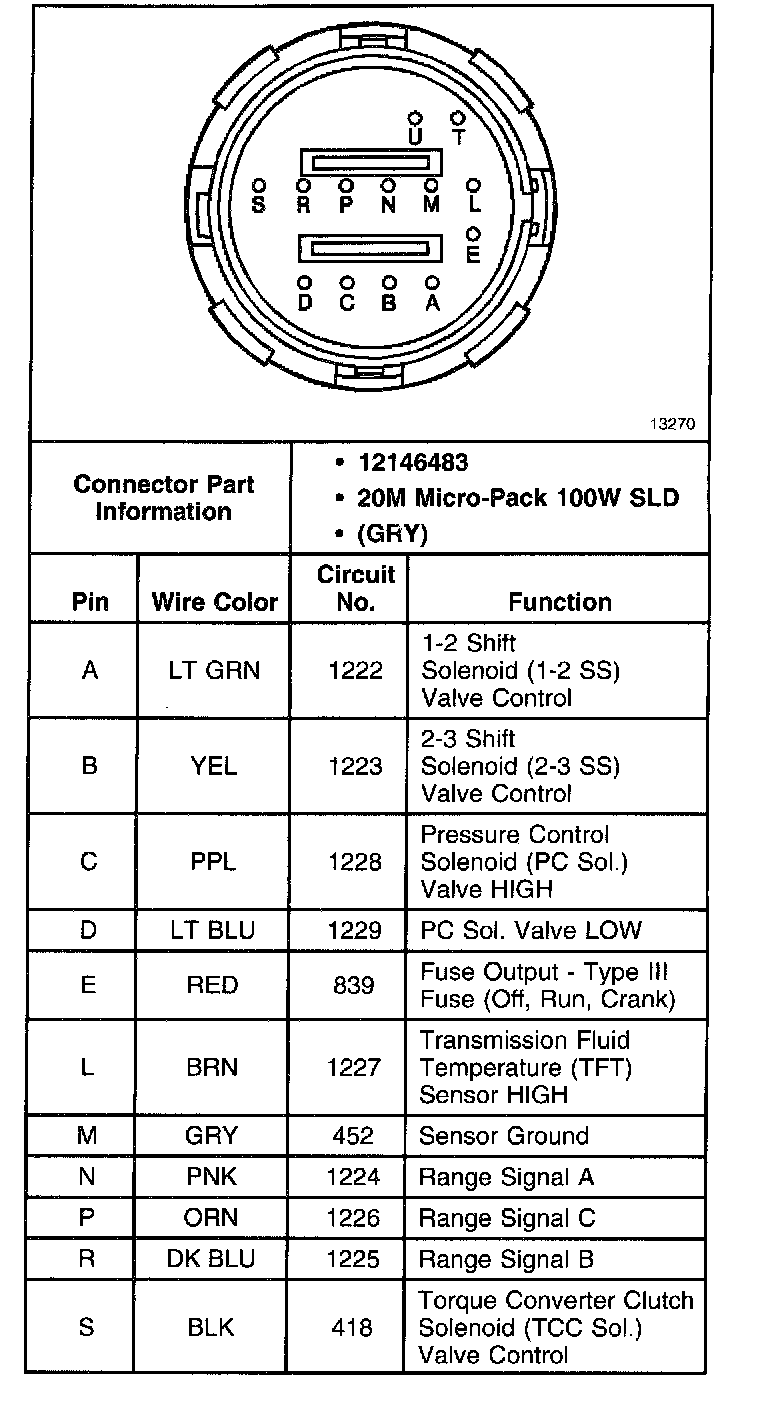

Inline Harness Connector c103, Transmission Side

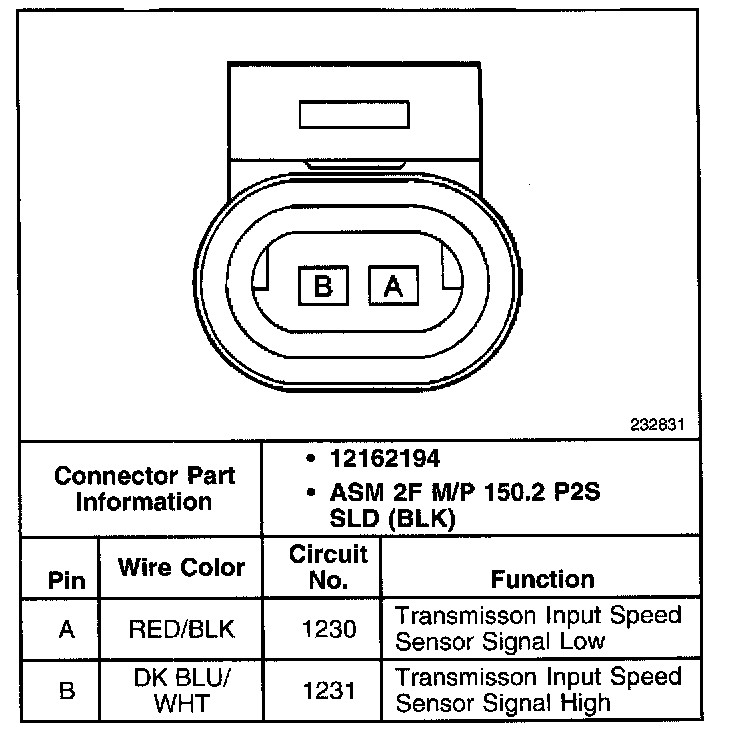

Automatic Transmission Input Shaft Speed (A/T ISS) Sensor Connector

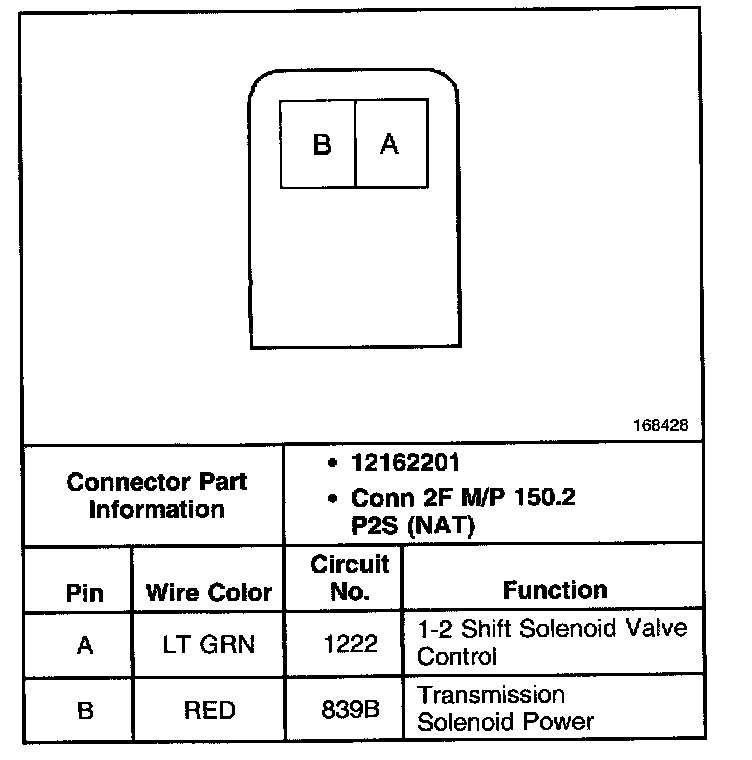

1-2 Shift Solenoid (SS) Valve Connector, Wiring Harness Side
