4L60-E/4L65-E Automatic Transmission

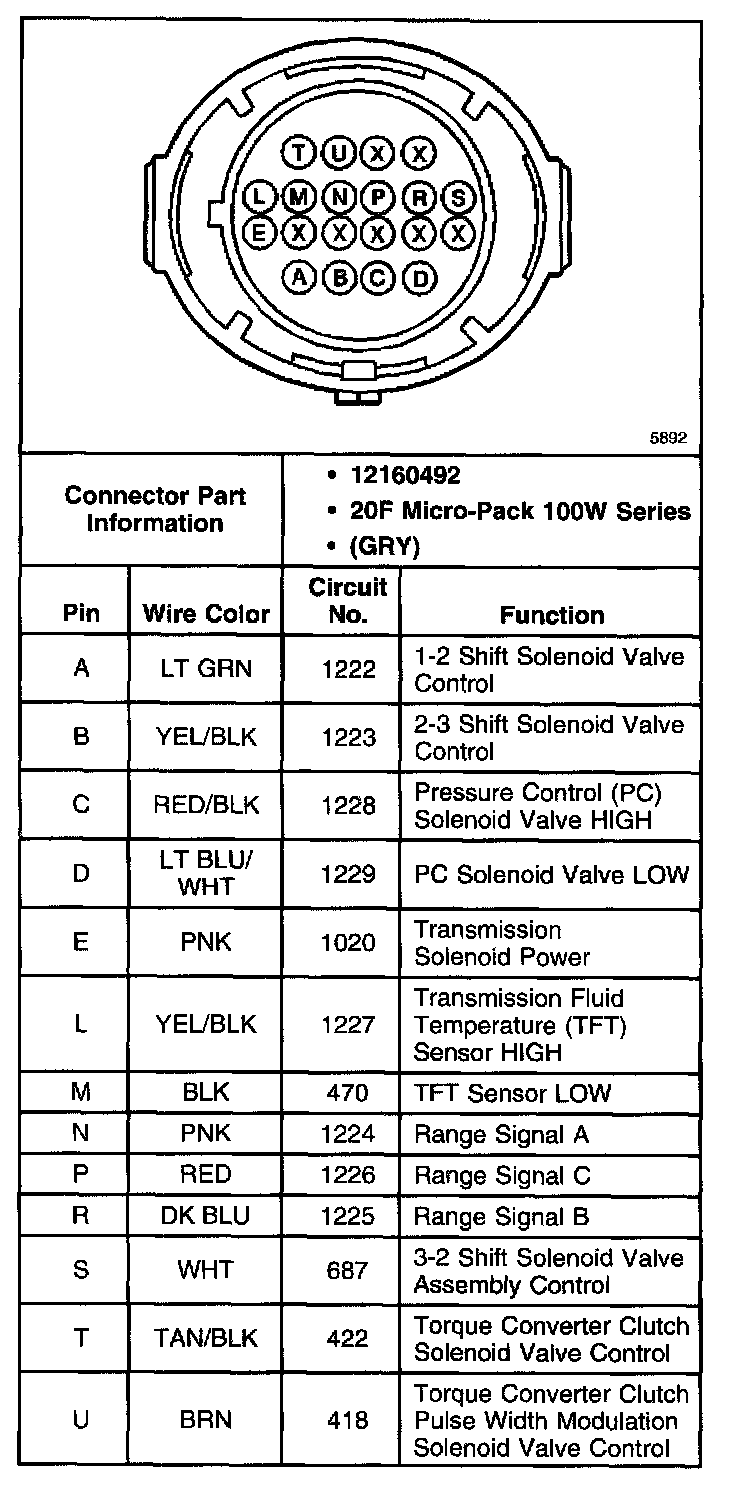

Inline Harness Connector C103, Engine Side

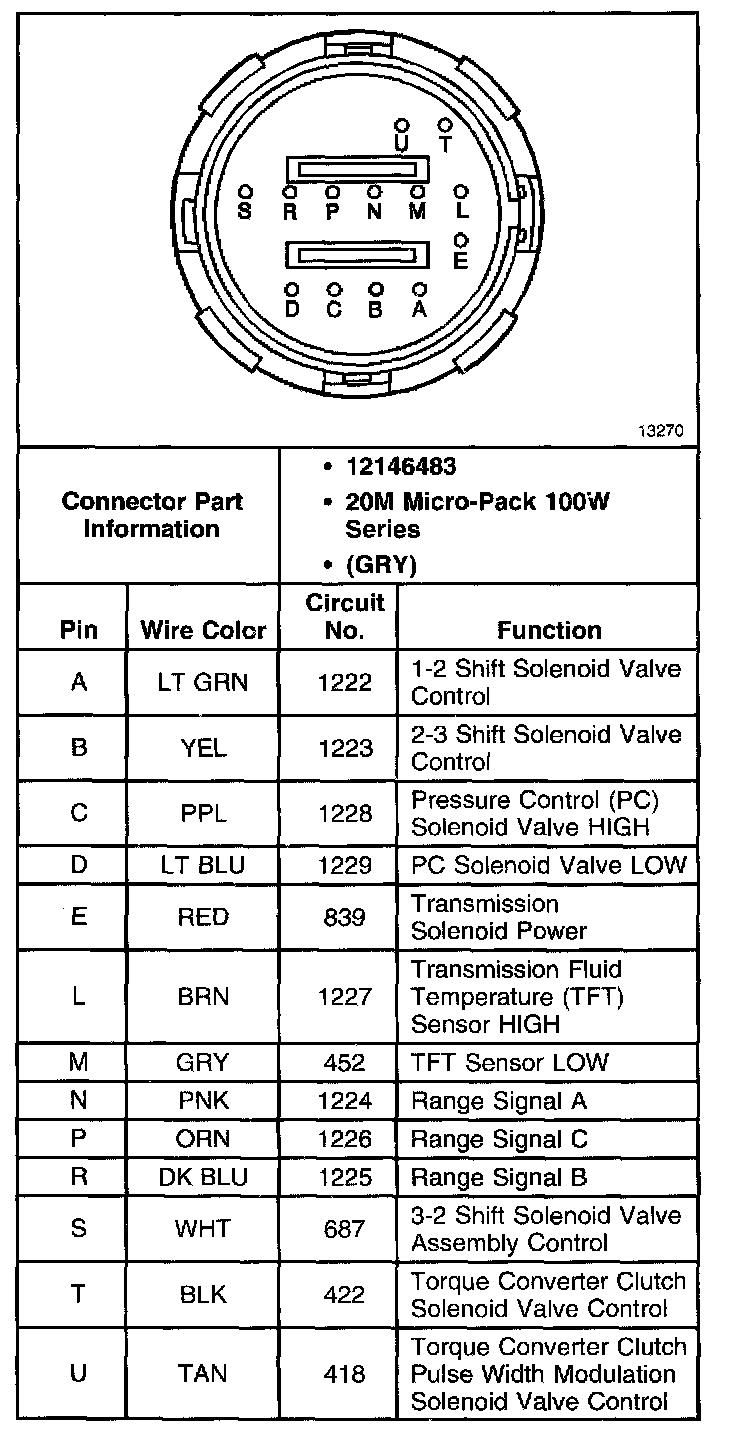

Inline Harness Connector C103, Transmission Side
