Automatic Transmission-4L60-E

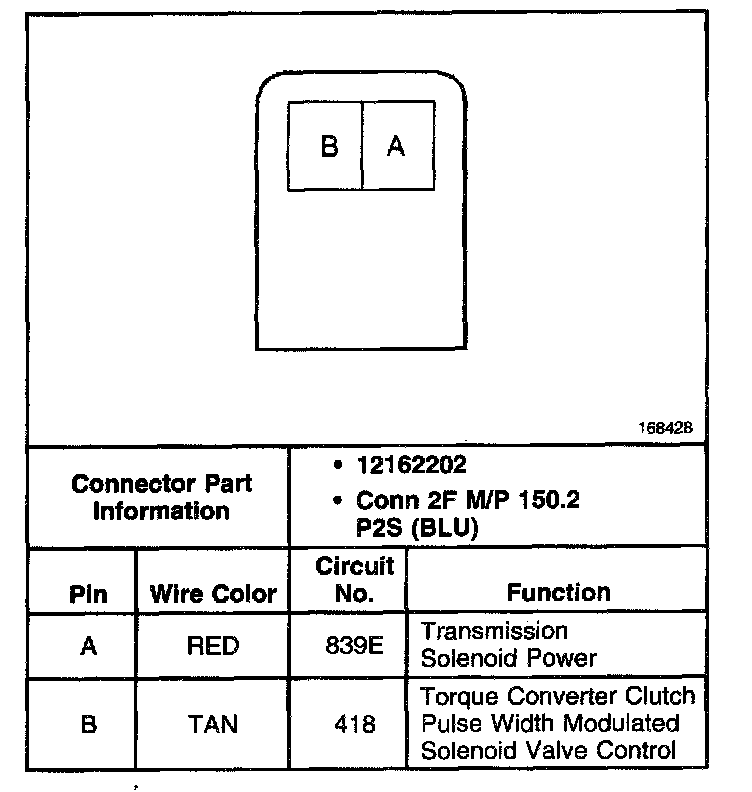

Torque Converter Clutch Pulse Width Modulated (TCCPWM) Solenoid Valve Connector, Wiring Harness Side

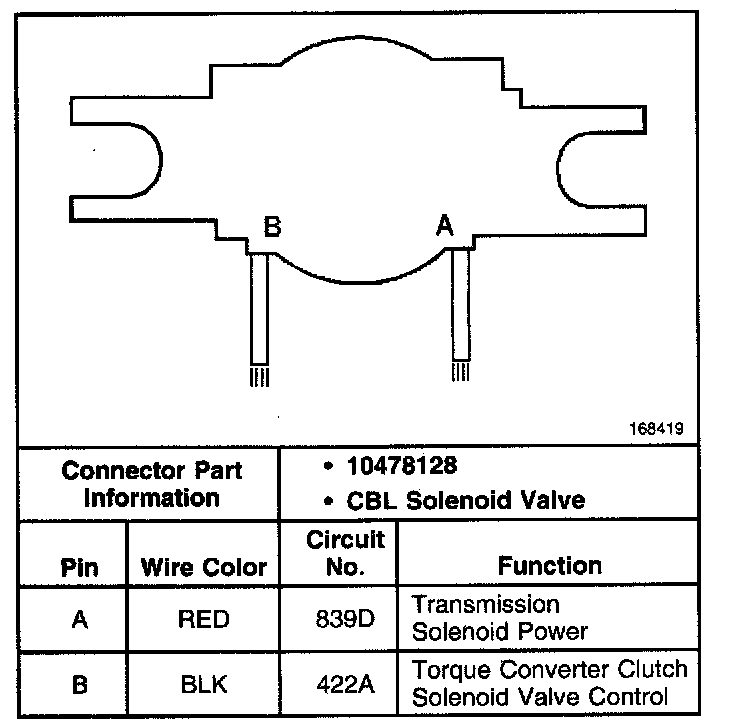

Torque Converter Clutch (TCC) Solenoid Valve Connector, Wiring Harness Side
