Automatic Transmission-4L60-E

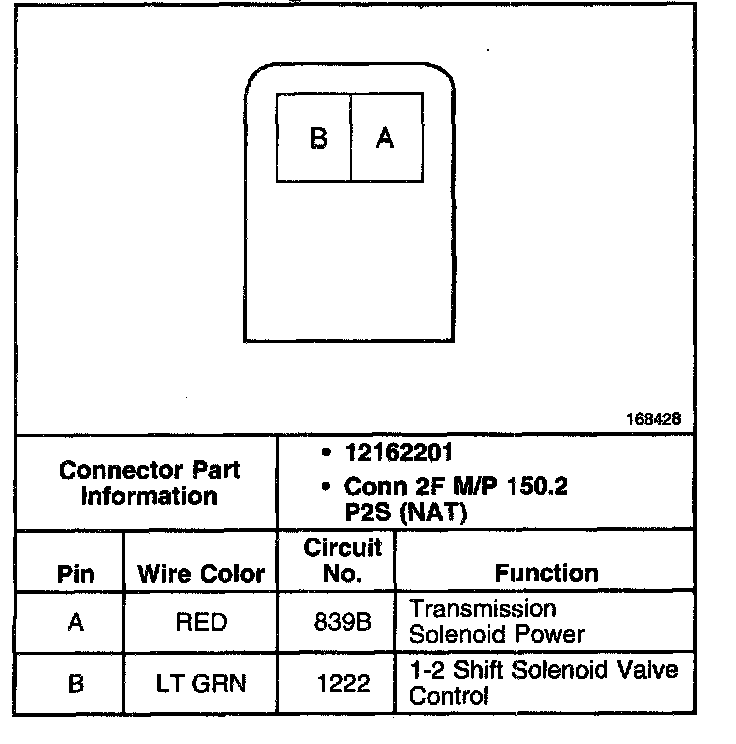

1-2 Shift Solenoid (SS) Valve Connector, Wiring Harness Side

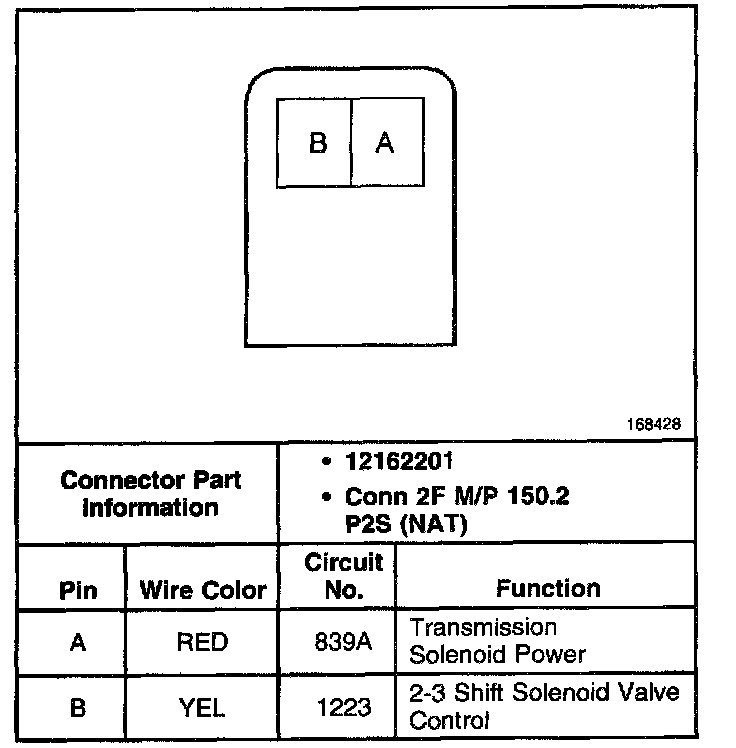

2-3 Shift Solenoid (SS) Valve Connector, Wiring Harness Side

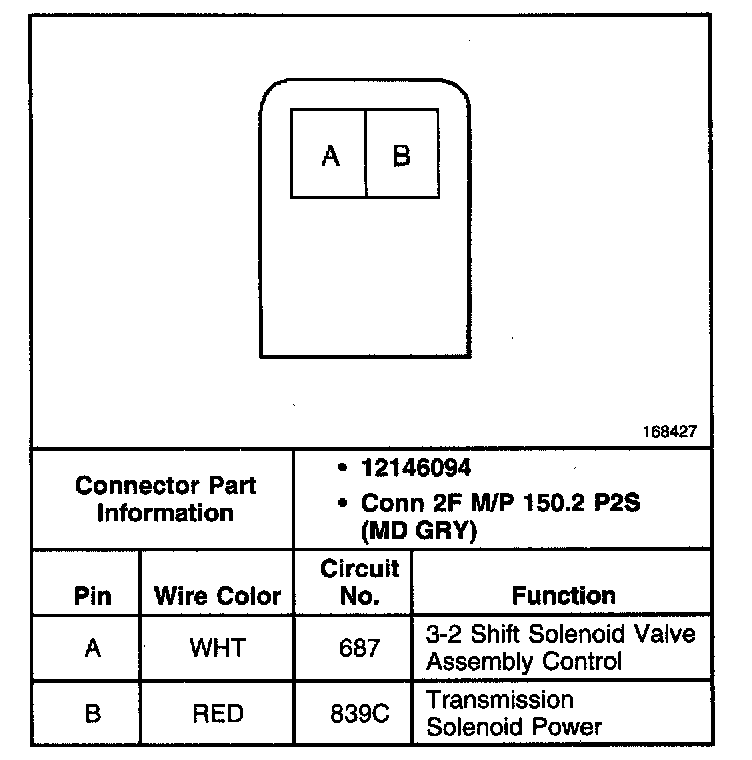

3-2 Shift Solenoid (SS) Valve Assembly Connector, Wiring Harness Side
