Transmission Position Sensor/Switch: Locations

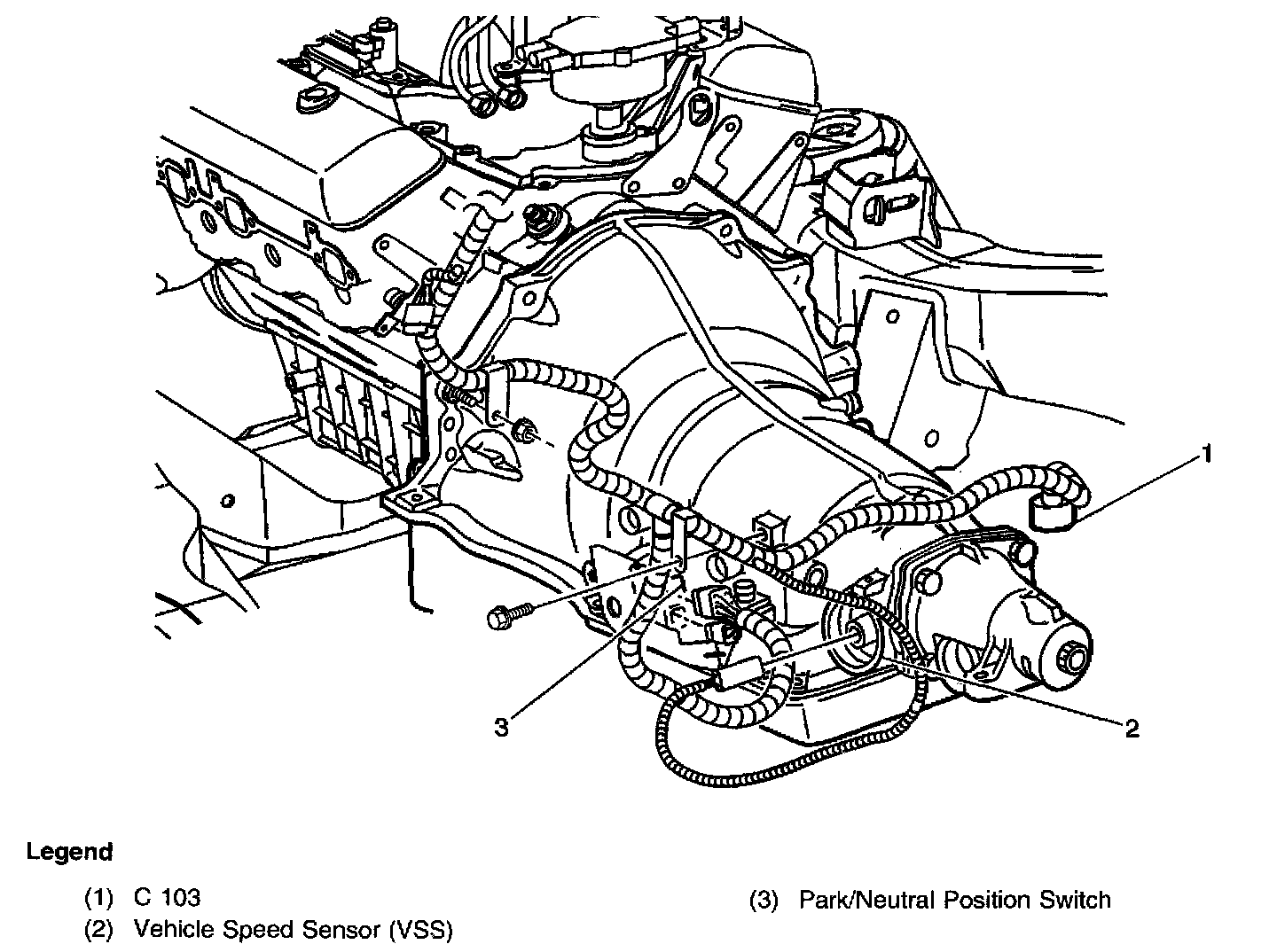

Automatic Transmission, 4-Speed 4L60-E:

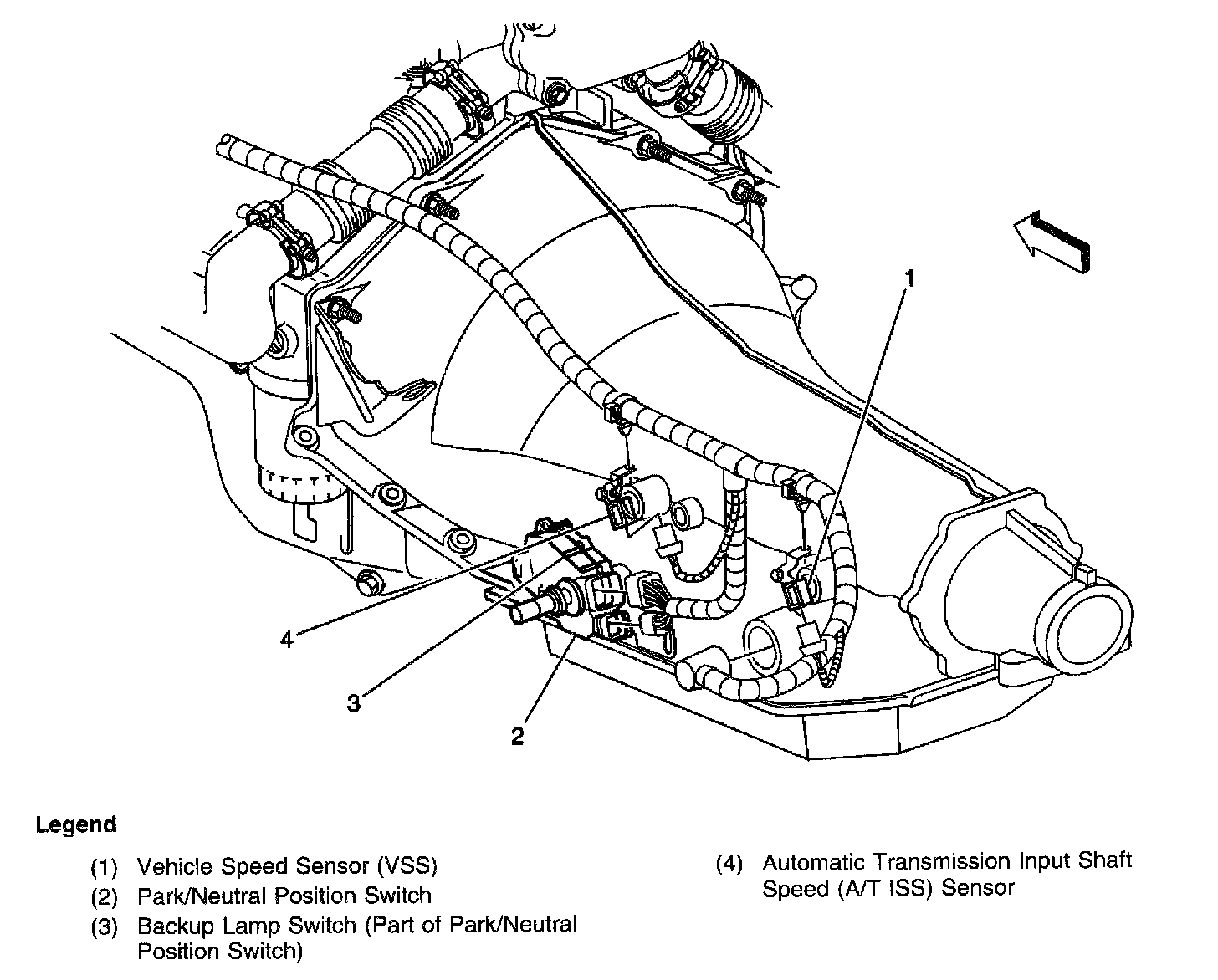

Automatic Transmission, 4-Speed 4L80-E:





On the left side of the transmission
