Metal Collar

REMOVAL PROCEDURE





TOOLS REQUIRED
J 37088-A Tool Set, Fuel Line Quick-Connect Separator

IMPORTANT: Relieve the fuel system pressure before servicing any fuel system connection. Refer to the Fuel Pressure Relief Procedure.

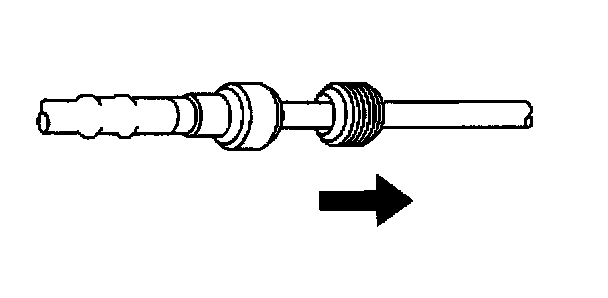

1. Slide the dust cover from the quick-connect fitting.

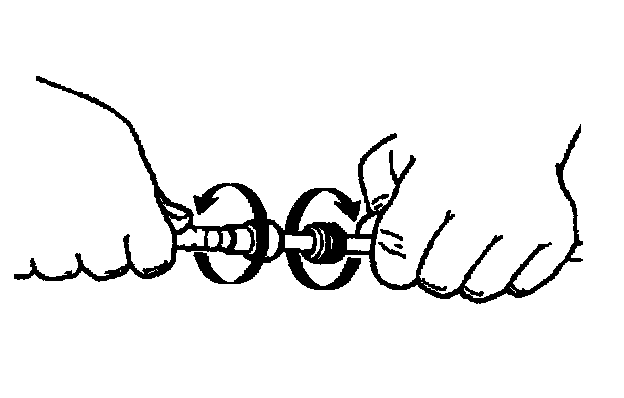

2. Grasp both sides of the fitting. Twist the female connector 1/4 turn in each direction to loosen any dirt within the fitting.





CAUTION: Wear safety glasses when using compressed air, as flying dirt particles may cause eye injury.

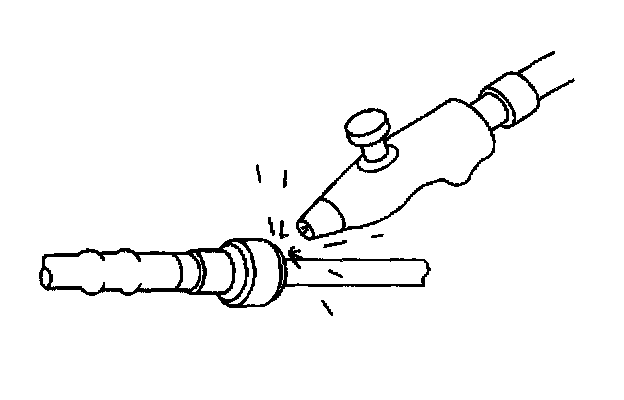

3. Blow dirt out of the fitting using compressed air.

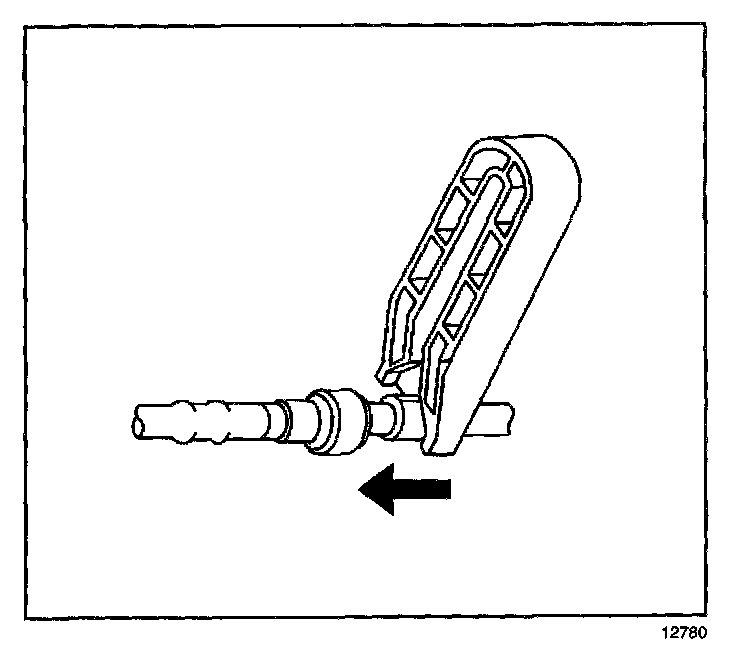

4. Choose the correct tool from J 37088-A Tool Set for the size of the fitting. Insert the tool into the female connector, then push inward to release the locking tabs.

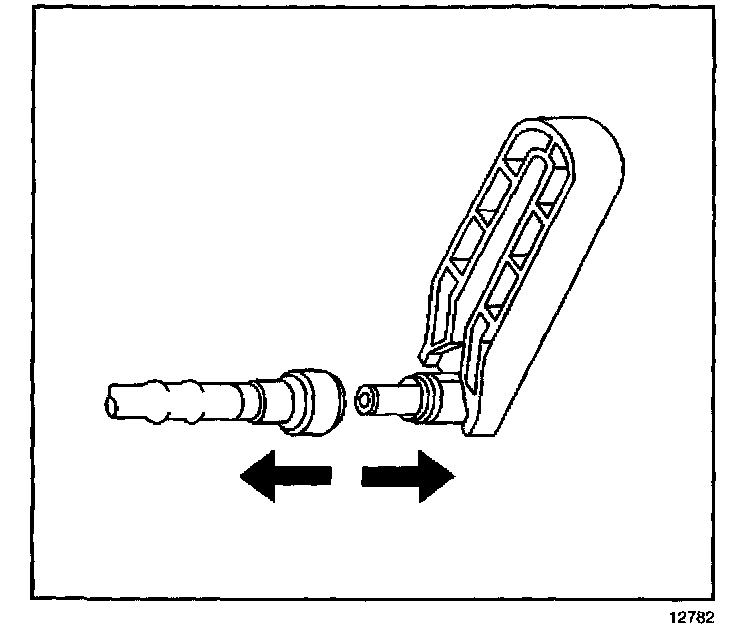

5. Pull the connection apart.

NOTE: If it is necessary to remove rust or burrs from a fuel pipe, use emery cloth in a radial motion with the fuel pipe end in order to prevent damage to the O-ring sealing surface.

6. Using a clean shop towel, wipe off the male pipe end.
7. Inspect both ends of the fitting for dirt and burrs. Clean or replace the components as required.

INSTALLATION PROCEDURE





CAUTION: In order to reduce the risk of fire and personal injury. before connecting fuel pipe fittings, always apply a few drops of clean engine oil to the male pipe ends.

This will ensure proper reconnection and prevent a possible fuel leak.

During normal operation, the O-rings located in the female connector will swell and may prevent proper reconnection if not lubricated.

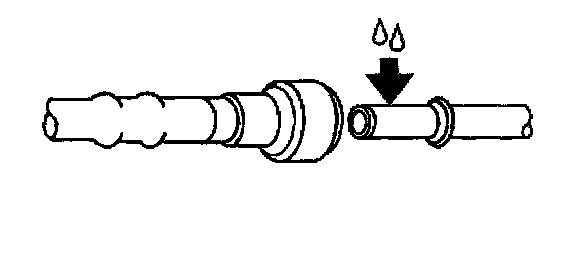

1. Apply a few drops of clean engine oil to the male pipe end.

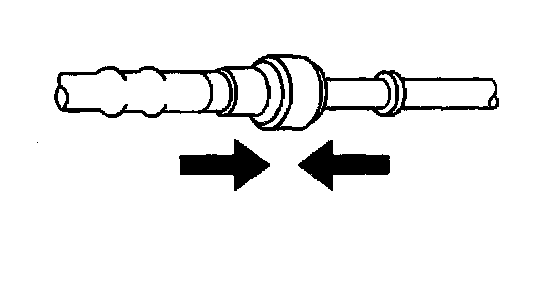

2. Push both sides of the fitting together to cause the retaining tabs to snap into place.

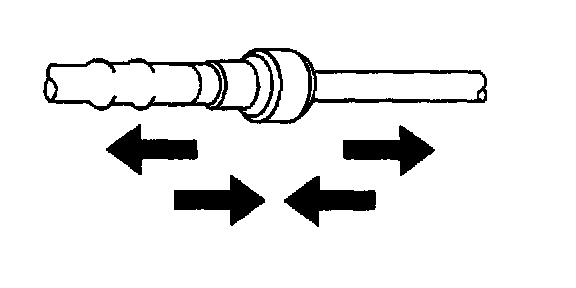

3. Once installed, pull on both sides of the fitting to make sure the connection is secure.

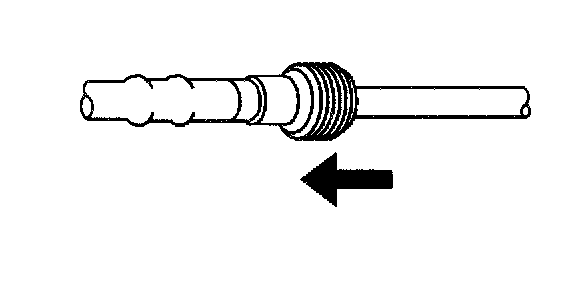

4. Reposition the dust cover over the quick-connect fitting.
