EGR Tube: Service and Repair

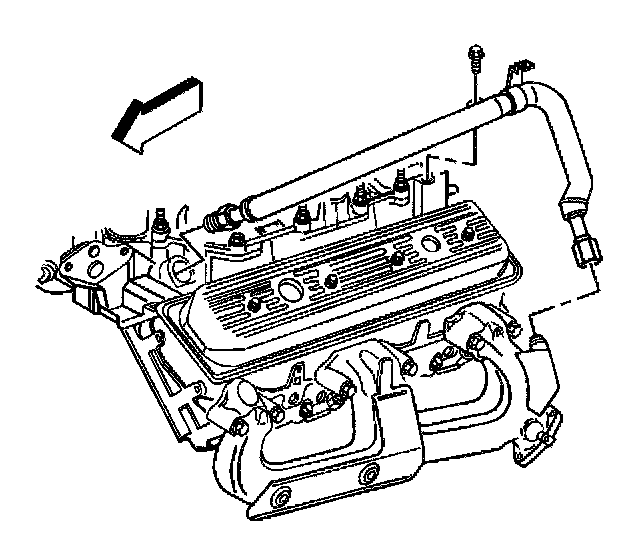

REMOVAL PROCEDURE

1. Remove the engine cover.
2. Remove the EGR pipe bracket retaining fastener.
3. Loosen the pipe fittings at both ends of the EGR pipe.
4. Remove the EGR pipe.

INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice in Service Precautions.

IMPORTANT: Do not fully tighten at this step.

1. Install the EGR pipe in the proper location and Start the pipe fittings by hand.
2. Ensure that the EGR pipe fittings are correctly lined up on the adaptors to the exhaust and intake manifolds.
Tighten the EGR pipe fitting to the exhaust manifold.

Tighten
Tighten the EGR pipe fitting to 30 N.m (22 lb ft).

3. Tighten the EGR pipe fitting to intake manifold.

Tighten
Tighten the EGR pipe fitting to 25 N.m (18 lb ft).

4. Install the EGR pipe bracket retaining fastener.

Tighten
Tighten the fastener to 25 N.m (18 lb ft).

5. Reinstall the engine cover.
