Evaporative Emission Control Canister: Service and Repair

REMOVAL PROCEDURE

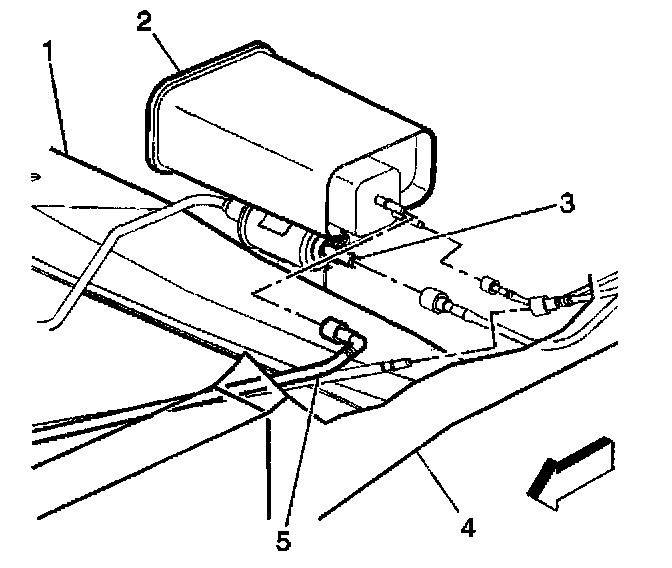

1. Disconnect the [1][2]EVAP hoses (5) from the canister (2). Mark the hoses for installation on the new canister.
2. Remove the screw from the mounting bracket and canister.

INSTALLATION PROCEDURE
1. Install the EVAP canister and bracket screw.
2. Connect the [1][2]EVAP hoses (5) to the canister (2).
