Initial Inspection and Diagnostic Overview
>>
Inspection/Maintenance (I/M) Diagnostics
>>

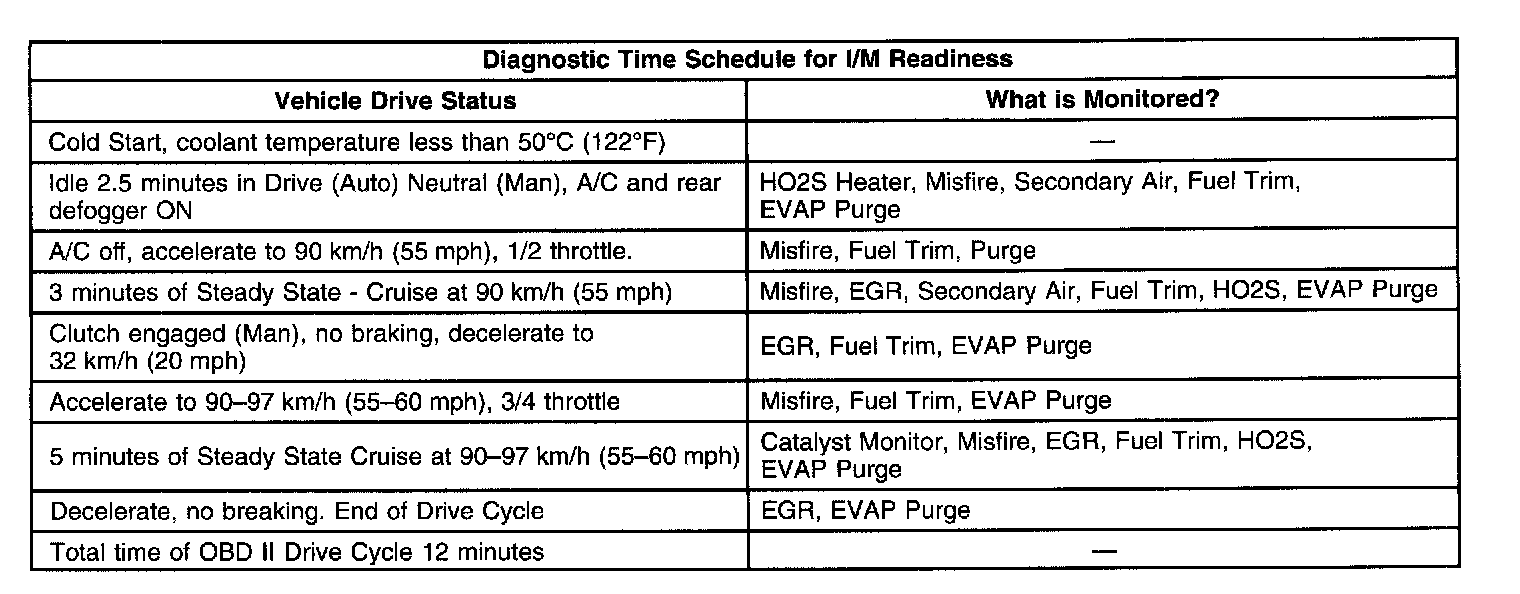

Typical OBD II Drive Cycle
Typical OBD II Drive Cycle
Typical OBD II Drive Cycle:
