Automatic Transmission-4L60-E

Removal Procedure

^ Tools Required
- J38417Speed Sensor Remover

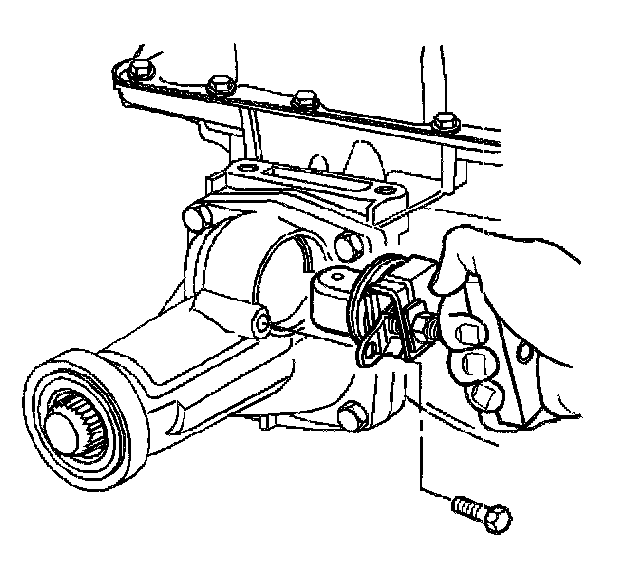

1. Remove the harness connector
2. Remove the bolt.





3. Remove the vehicle speed sensor using J38417. Have a suitable container in order to catch the fluid.
4. Remove the O-ring seal.

Installation Procedure

^ Tools Required
- J38417 Speed Sensor Remover





1. Install the new speed sensor and O-ring seal using J38417.
2. Coat the seal with a thin film of transmission fluid.

Notice: Refer to Fastener Notice in Service Precautions.

3. Install the bolt.
^ Tighten the bolt to 11 Nm (97 inch lbs.).
4. Install the harness connector.
5. Refill the fluid as required. Refer to Fluid Capacity.
