Home >> Chevy Truck >> 1999 >> Express 1 Ton Van V8-5.7L VIN R >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Sensors and Switches - Computers and Control Systems >> Vehicle Speed Sensor >> Locations >> Automatic Transmission-4L80-E

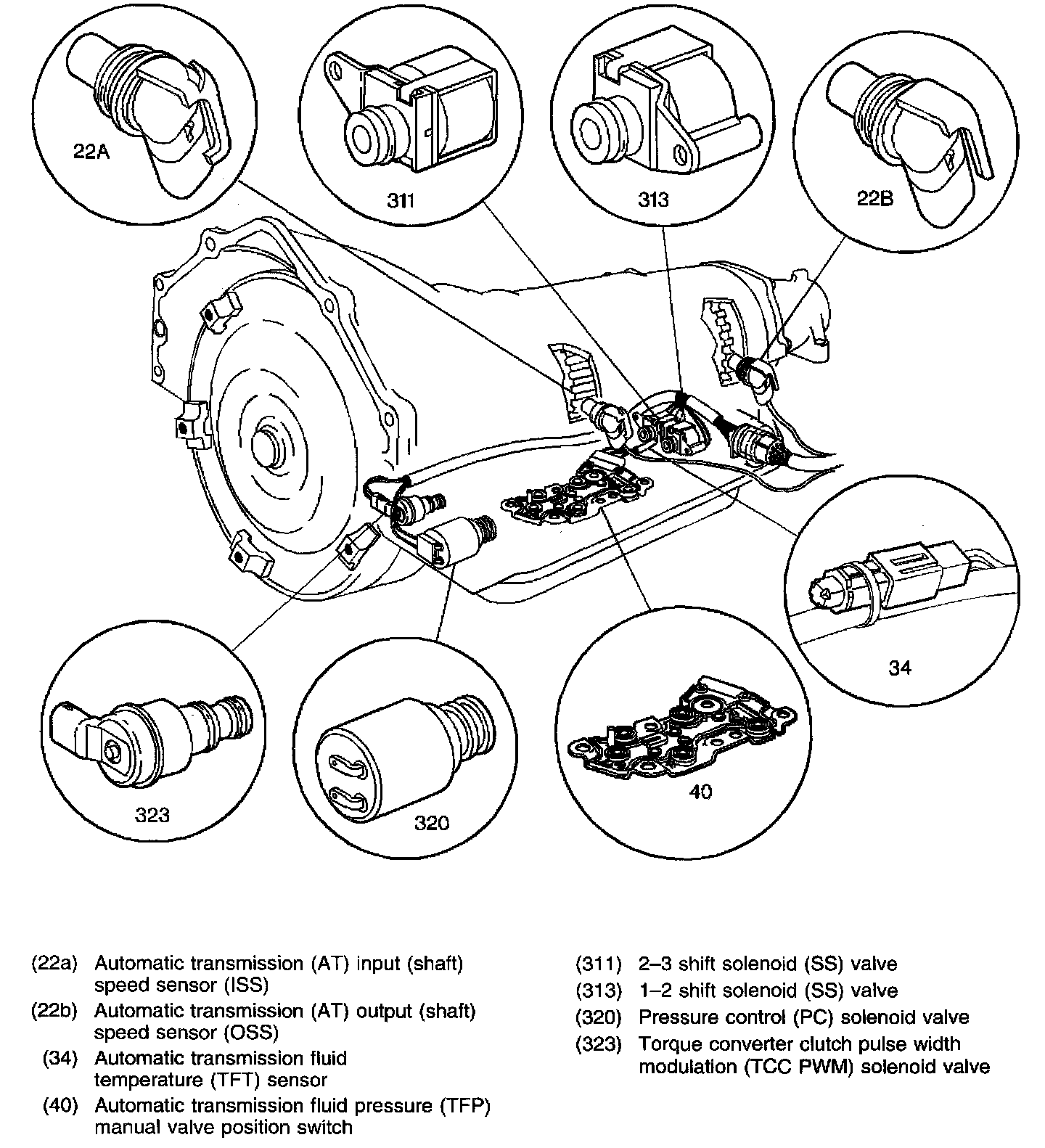

Automatic Transmission-4L80-E





Internal Components
