Home >> Chevy Truck >> 1999 >> Express 1 Ton Van V8-5.7L VIN R >> Repair and Diagnosis >> Lighting and Horns >> Turn Signals >> Turn Signal Lamp >> Diagrams >> Turn Signal Lamp Left/Right Rear

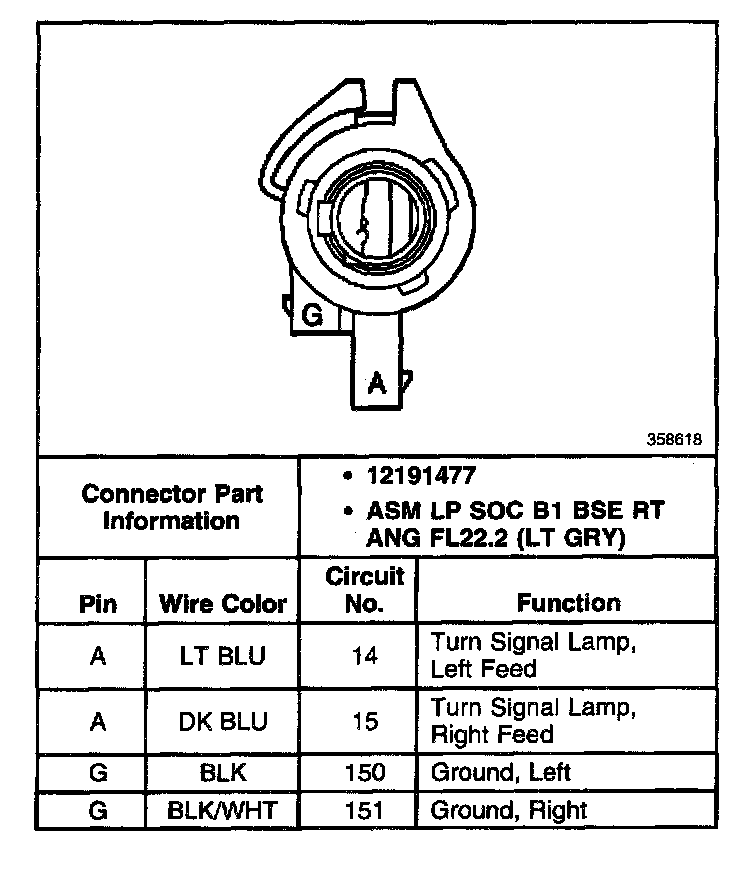

Turn Signal Lamp Left/Right Rear

Turn Signal Lamp Left/Right Rear:
