Marker Lamp Replacement - Front Side (Uplevel Vehicles)

REMOVAL PROCEDURE

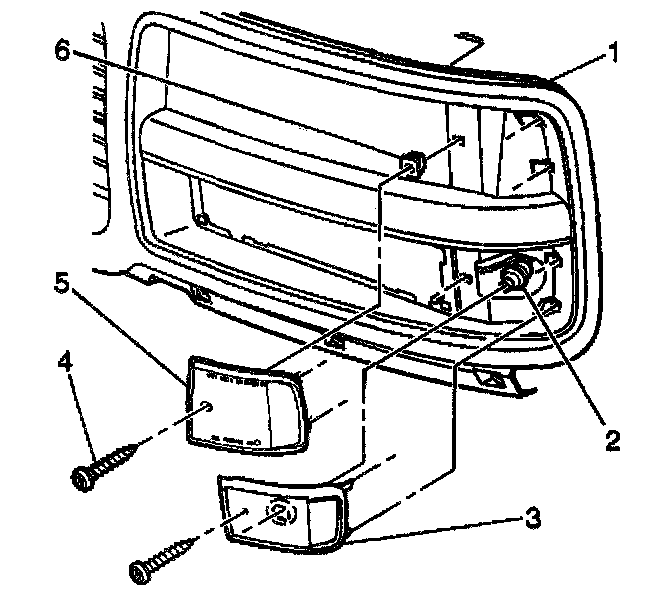

1. Remove the screw (4) that retains the side marker or the reflector to the radiator grille.
2. Remove the side marker lamp (3) or the reflector (5) from the radiator grille.
3. Disconnect the bulb socket (2) from the side marker lamp.
4. Remove the bulb (2) from the socket.

INSTALLATION PROCEDURE
1. Connect the bulb (2) into the socket.
2. Connect the bulb socket (2) into the side marker lamp.
3. Install the side marker lamp (3) or the reflector (5) to the radiator grille (1).
4. Install the side marker lamp or reflector retaining screw (4) to the radiator grille.
