Home >> Chevy Truck >> 1999 >> Express 1 Ton Van V8-5.7L VIN R >> Repair and Diagnosis >> Lighting and Horns >> Diagrams >> Electrical Diagrams >> Interior Lights >> Interior Lights Schematics >> ILLUM and Park LPS Fuses, G400

ILLUM and Park LPS Fuses, G400

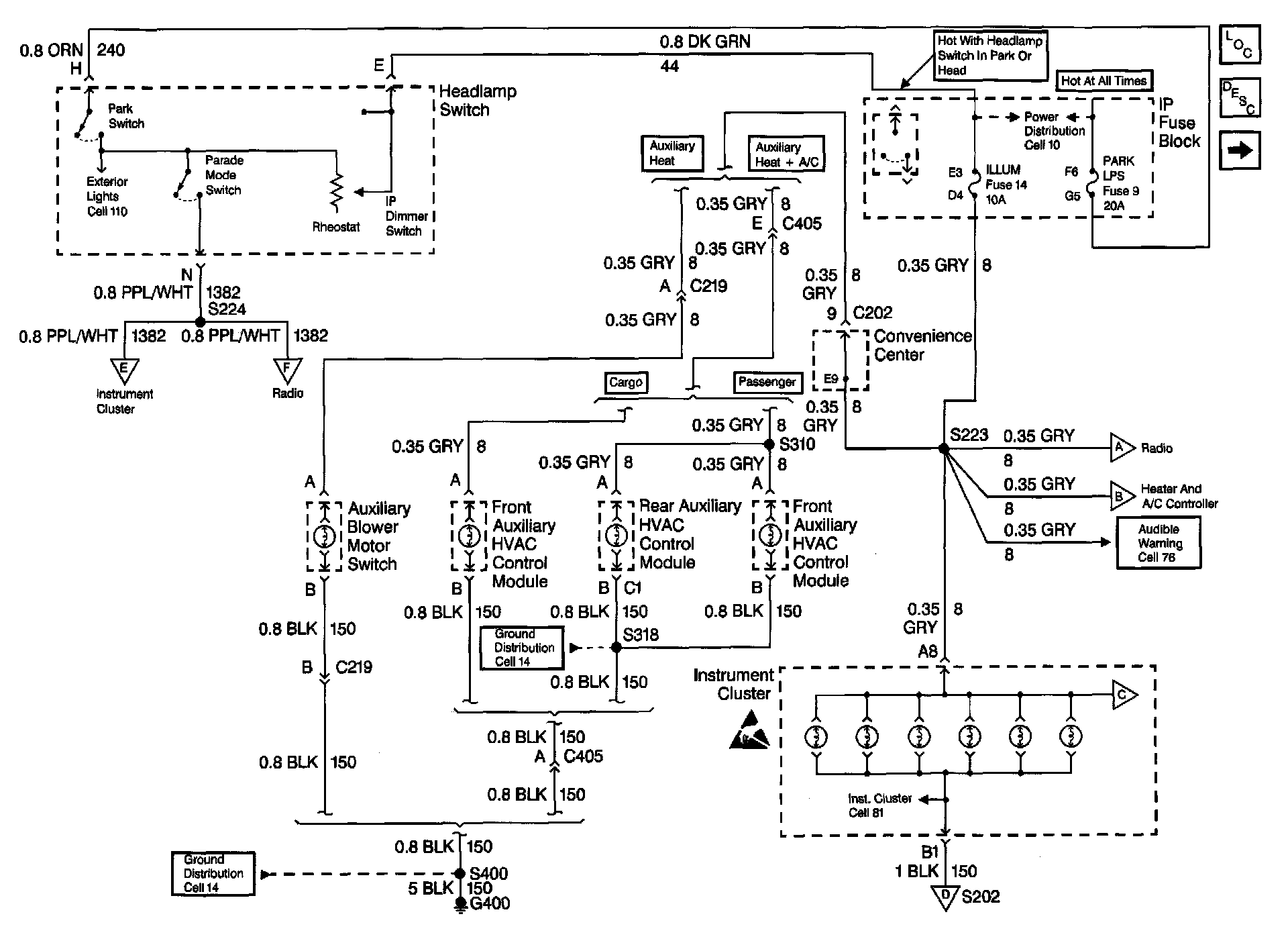

Interior Lights Dimming Schematics: ILLUM And Park LPS Fuses, G400:
