Home >> Chevy Truck >> 1999 >> Express 1 Ton Van V8-5.7L VIN R >> Repair and Diagnosis >> Lighting and Horns >> Diagrams >> Electrical Diagrams >> Interior Lights >> Interior Lights Schematics >> Horn Fuse, Underhood Lamp, Underhood Reel Lamp, G103

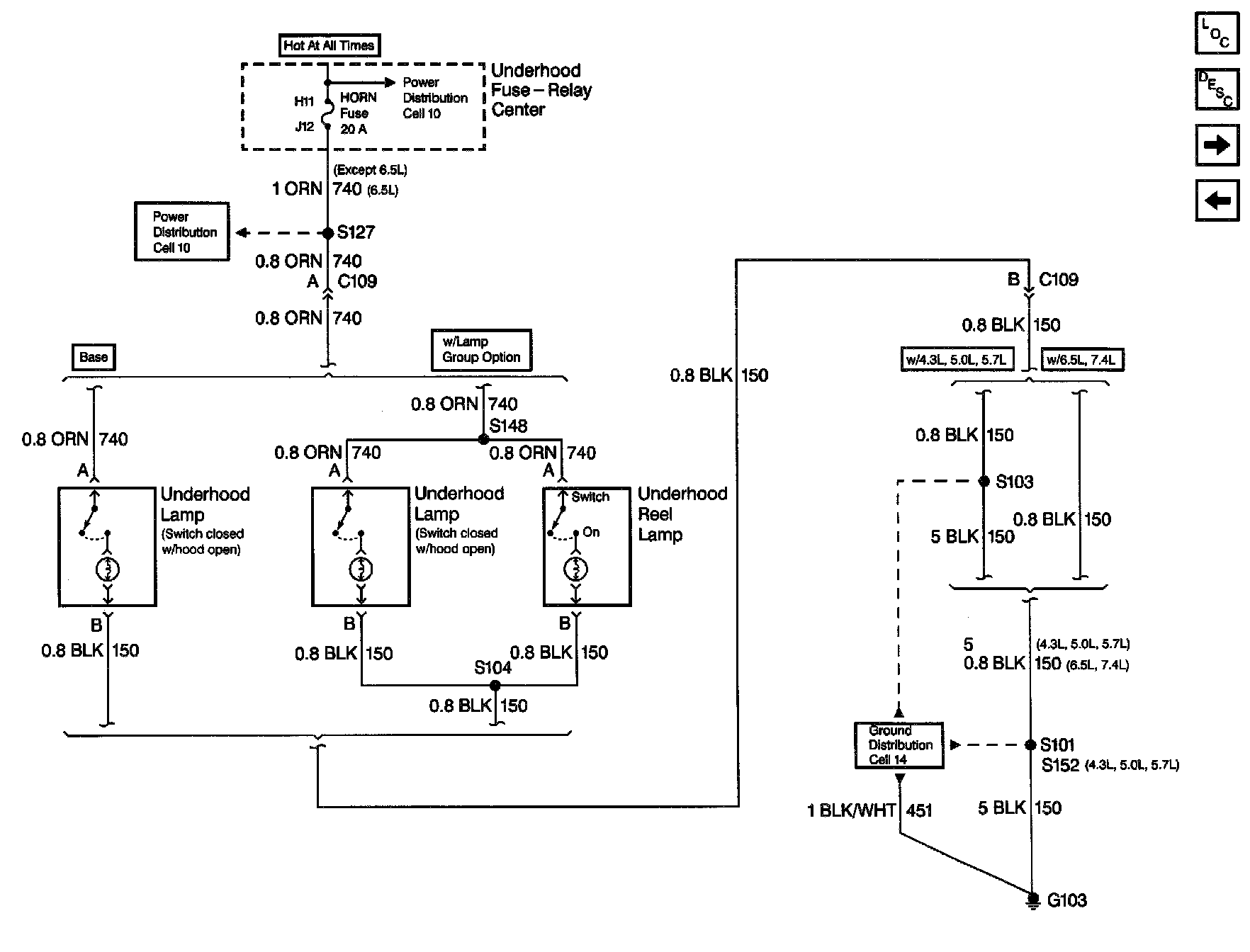

Horn Fuse, Underhood Lamp, Underhood Reel Lamp, G103

Interior Lights Schematics: Horn Fuse, Underhood Lamp, Underhood Reel Lamp, G103:
