Home >> Chevy Truck >> 1999 >> Express 1 Ton Van V8-5.7L VIN R >> Repair and Diagnosis >> Lighting and Horns >> Diagrams >> Electrical Diagrams >> Exterior Lights >> Exterior Lights Schematics (Export) >> Turn Signal Switch, Hazard Warning Lamp

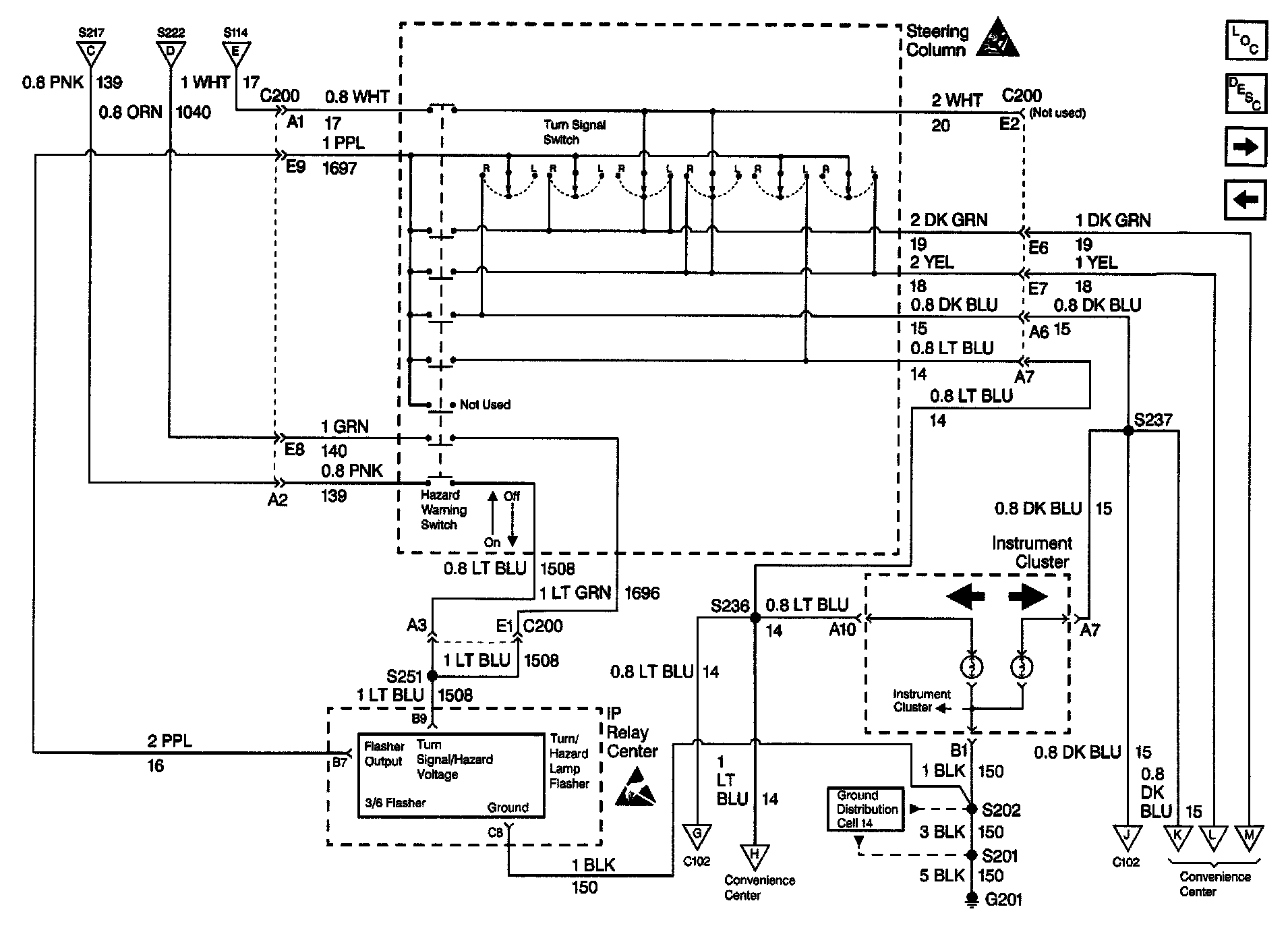

Turn Signal Switch, Hazard Warning Lamp

Exterior Lights Schematics (Export): Turn Signal Switch, Hazard Warning Lamp:
