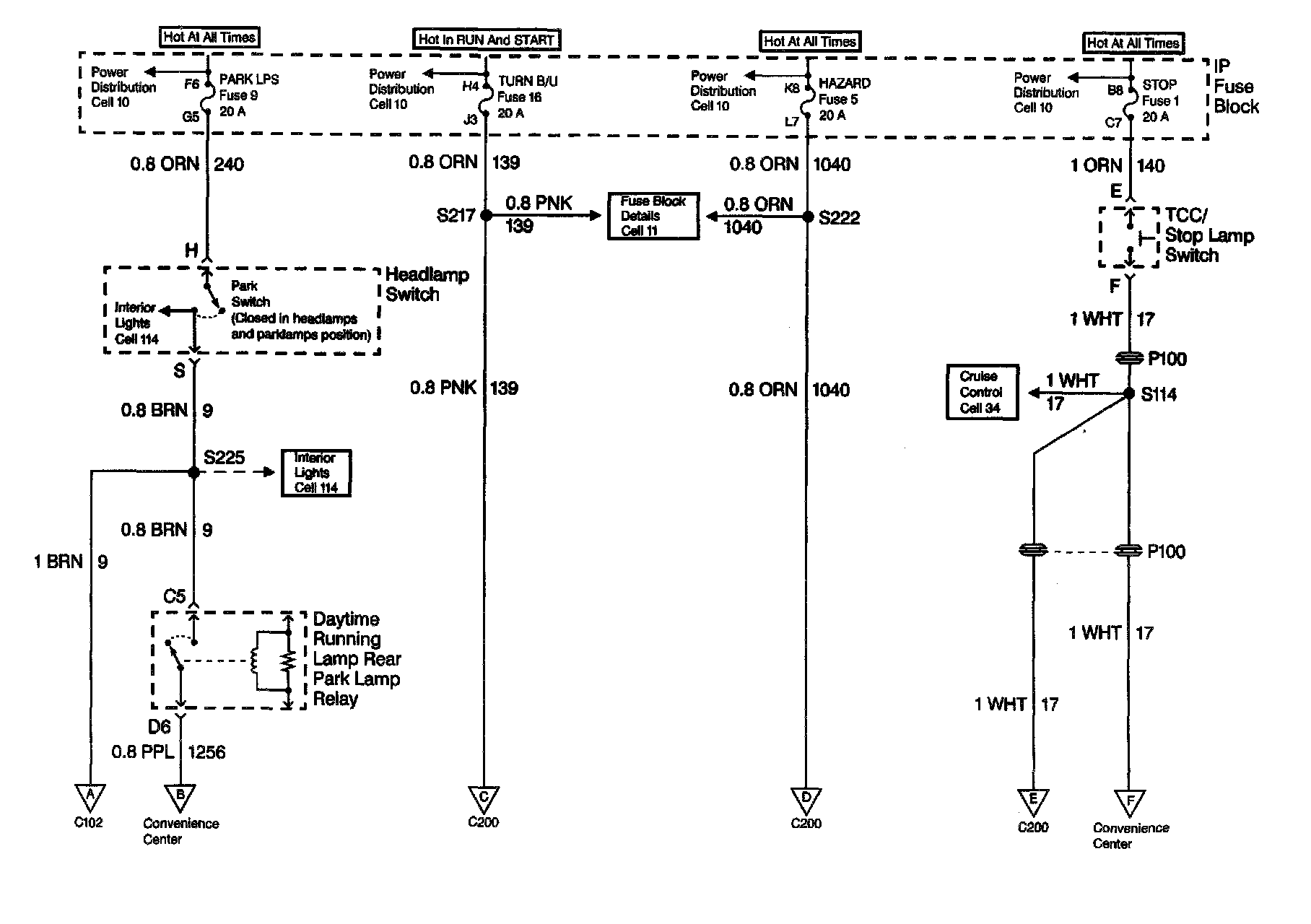

Headlamp Switch, DRL, Rear Park Lamp Relay, TCC/Stop Lamp

Exterior Lights Schematics (Export): Headlamp Switch, DRL, Rear Park Lamp Relay, TCC/Stop Lamp:
