Express 1 Ton Van V8-5.7L VIN R
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Initial Inspection and Diagnostic Overview
>>
System Check - Instrument Cluster (Indicator Check)
System Check - Instrument Cluster (Indicator Check)

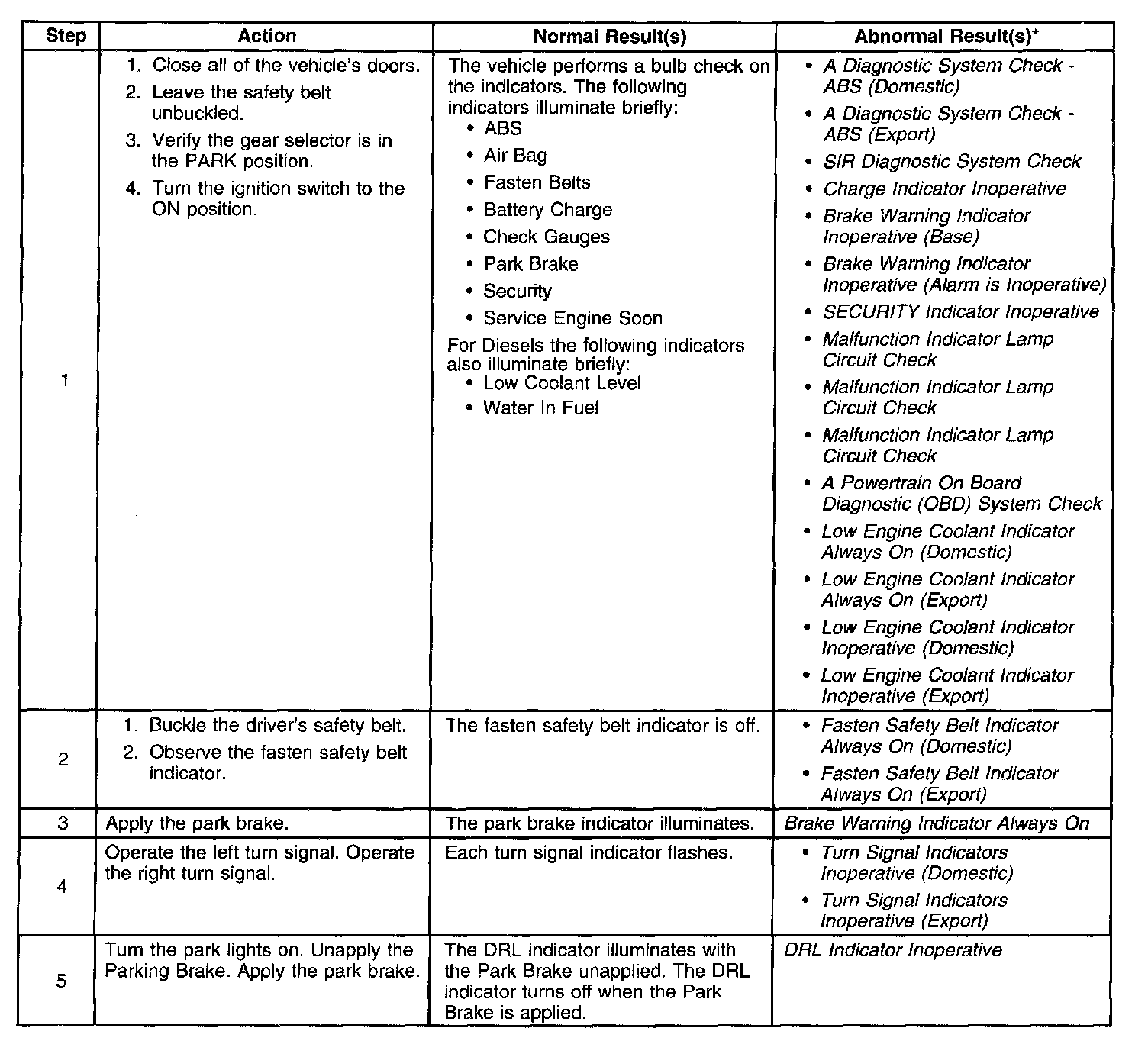

Instrument Cluster System Check (Indicator Check) (Part 1 Of 2):

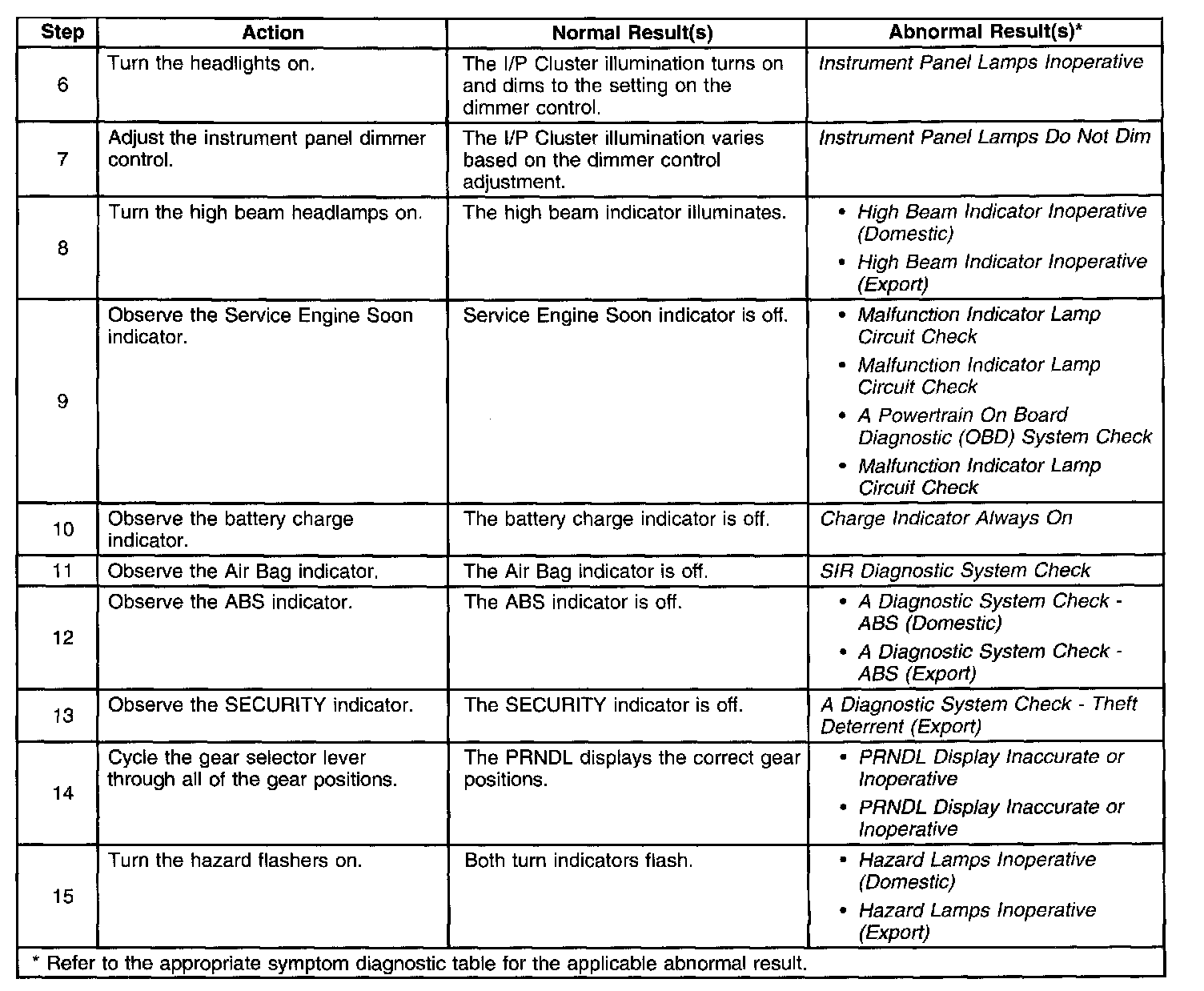

Instrument Cluster System Check (Indicator Check) (Part 2 Of 2):
