Headlamp SW, Instrument Cluster, Park/Neutral Position SW

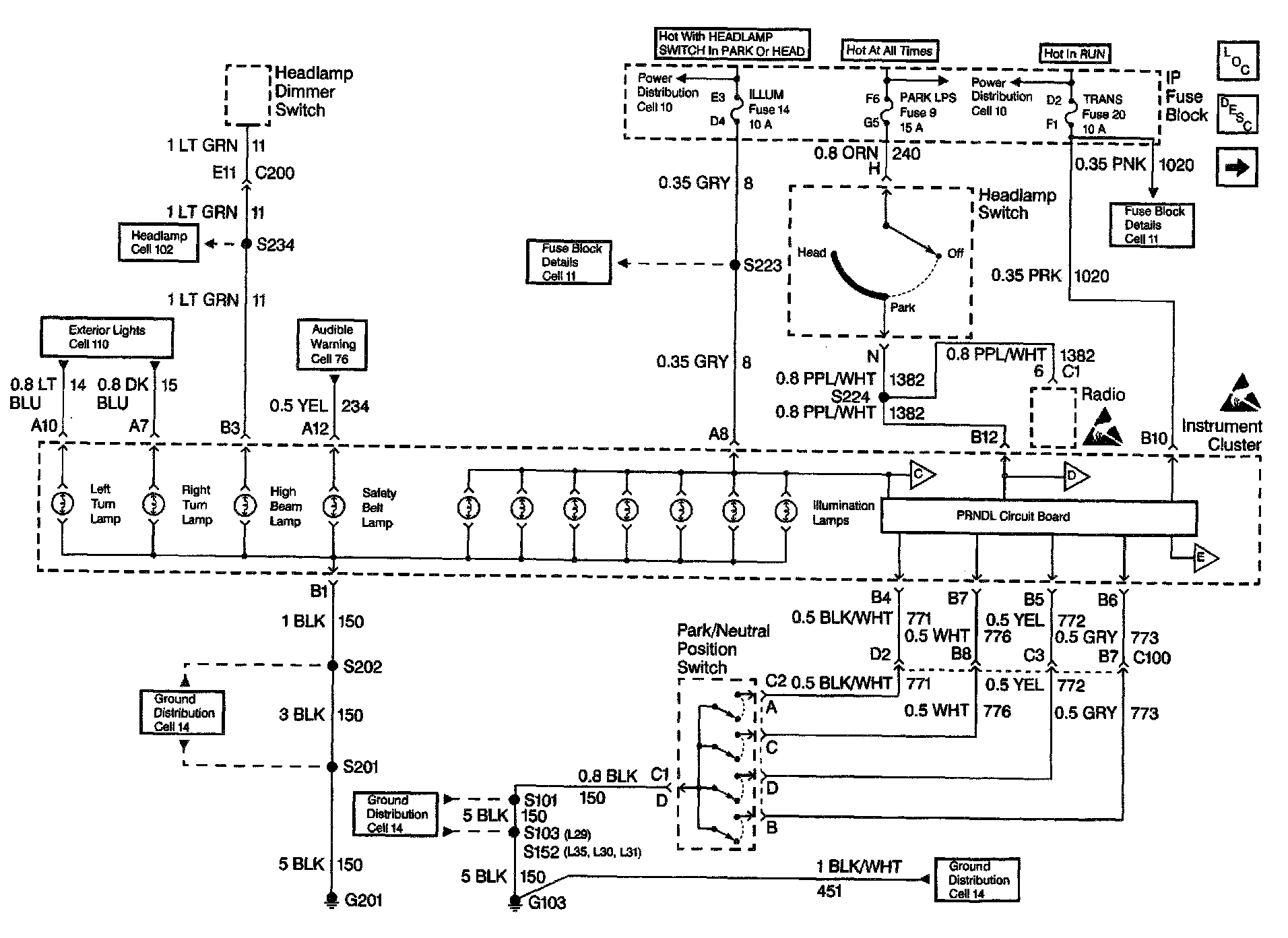

Instrument Cluster Analog Schematics (Domestic): Headlamp Switch, Instrument Cluster, Park/Neutral Position Switch:
