Gauges, ILLUM, HZD, PK LPS Fuses, Alarm Mdle, LF DR Jamb, G201
Gauges, ILLUM, HZD, PK LPS Fuses, Alarm Mdle, LF DR Jamb, G201

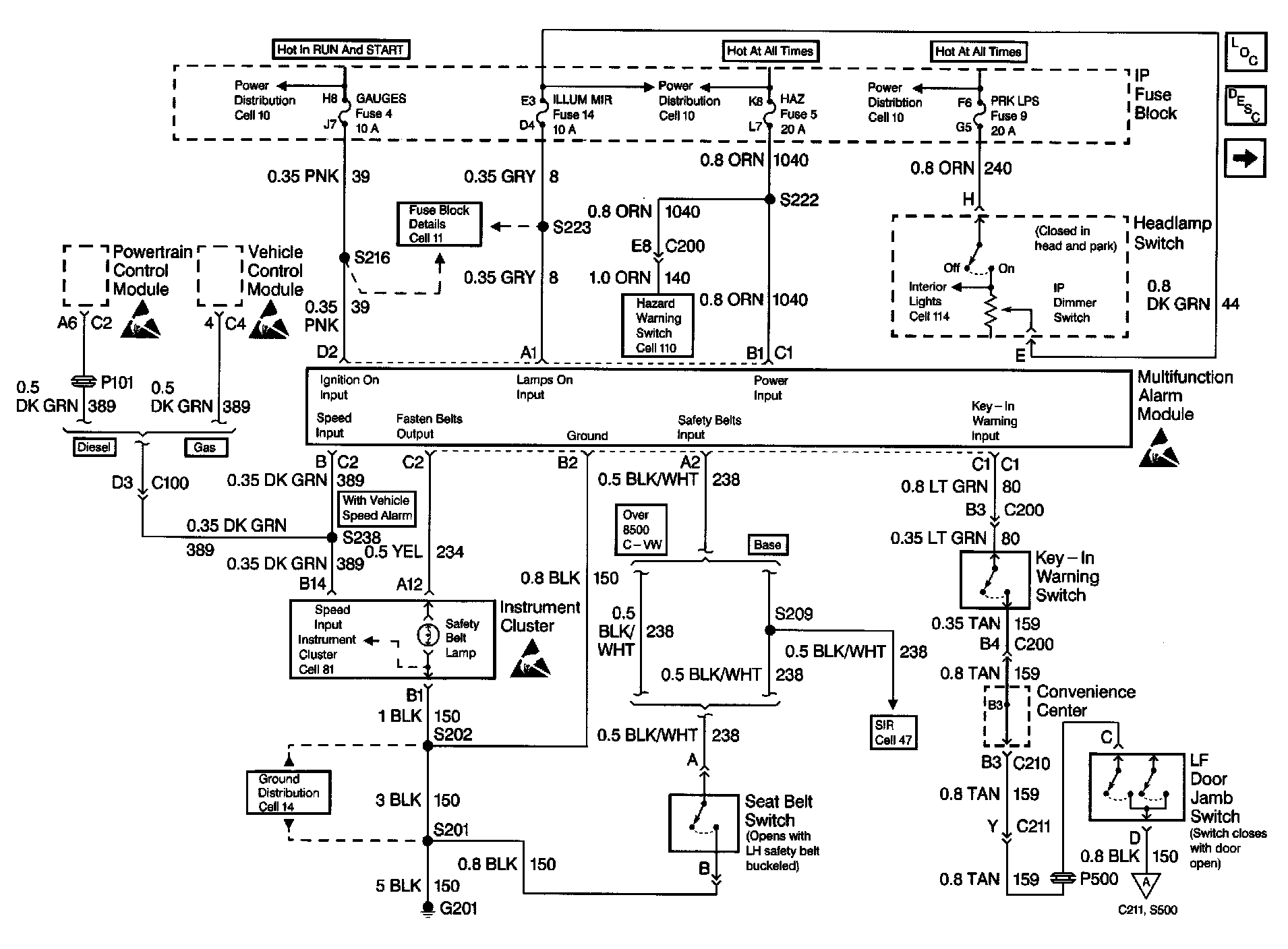

Audible Warning Schematics: Gauges, Illum, Hazard, Park LPS Fuses, Multi-Function Alarm Module, Left Front Door Jamb Switch, G201:
