Passenger Van

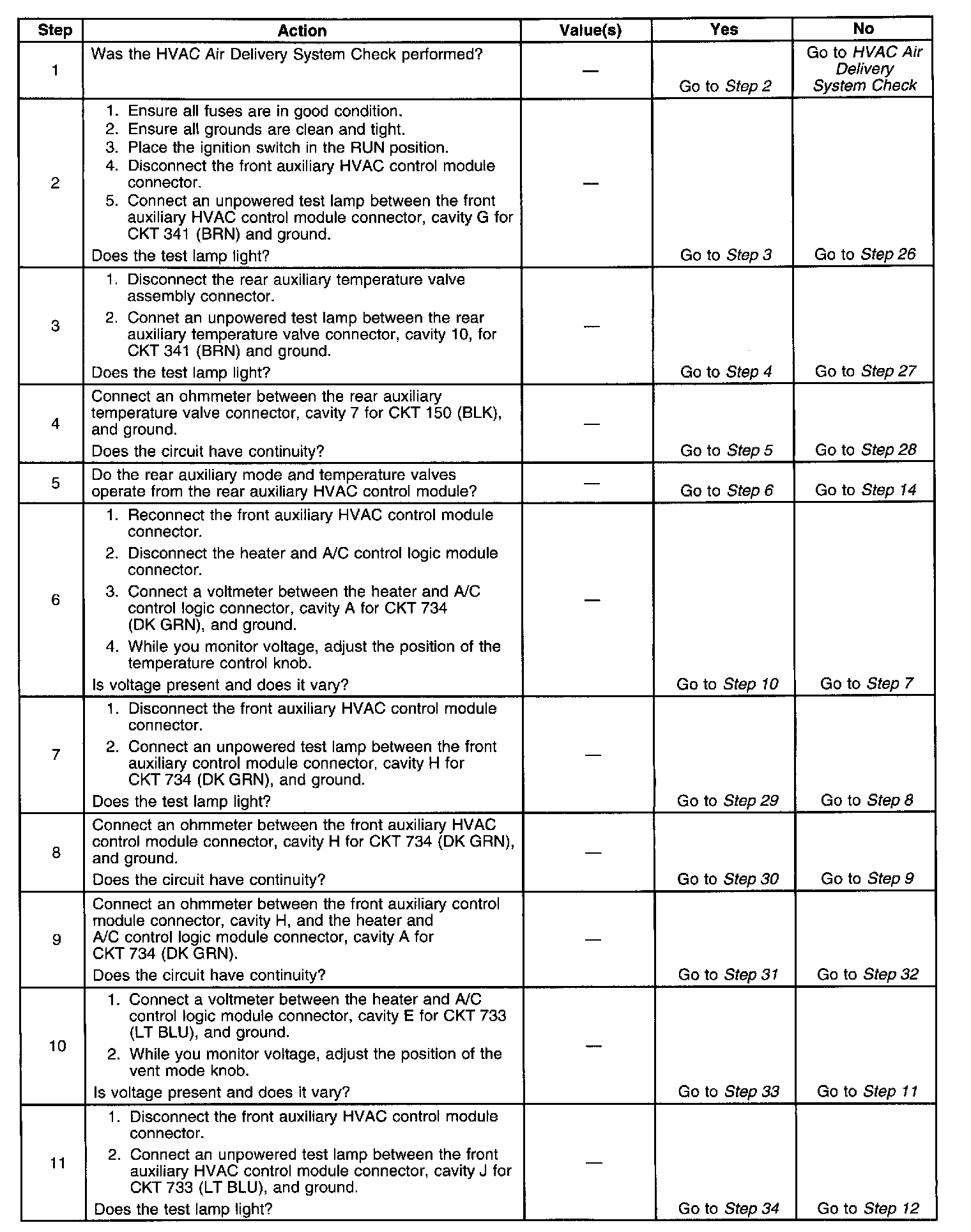

Temperature And Mode Valves Inoperative - Auxiliary: Passenger Van (Part 1 Of 4):

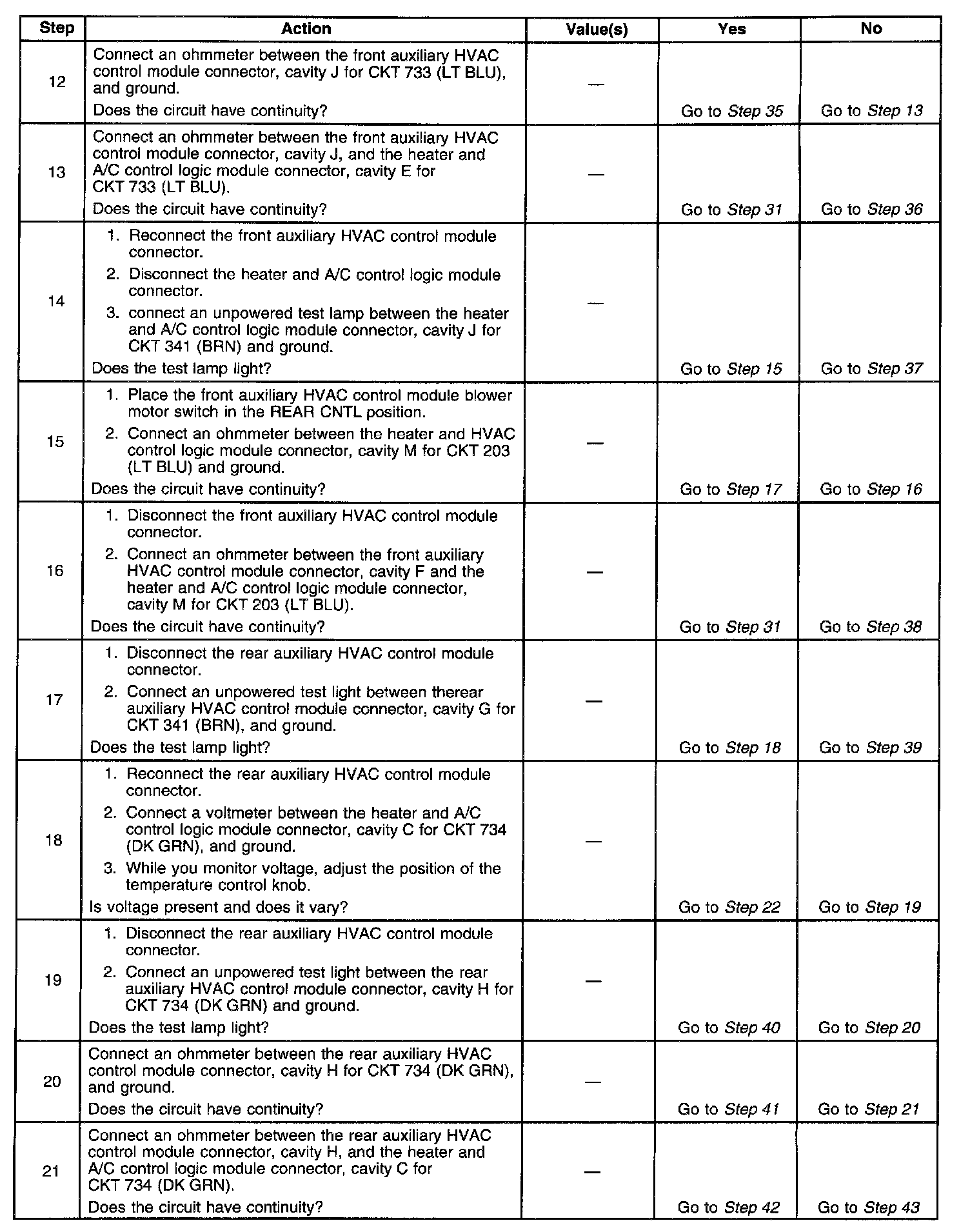

Temperature And Mode Valves Inoperative - Auxiliary: Passenger Van (Part 2 Of 4):

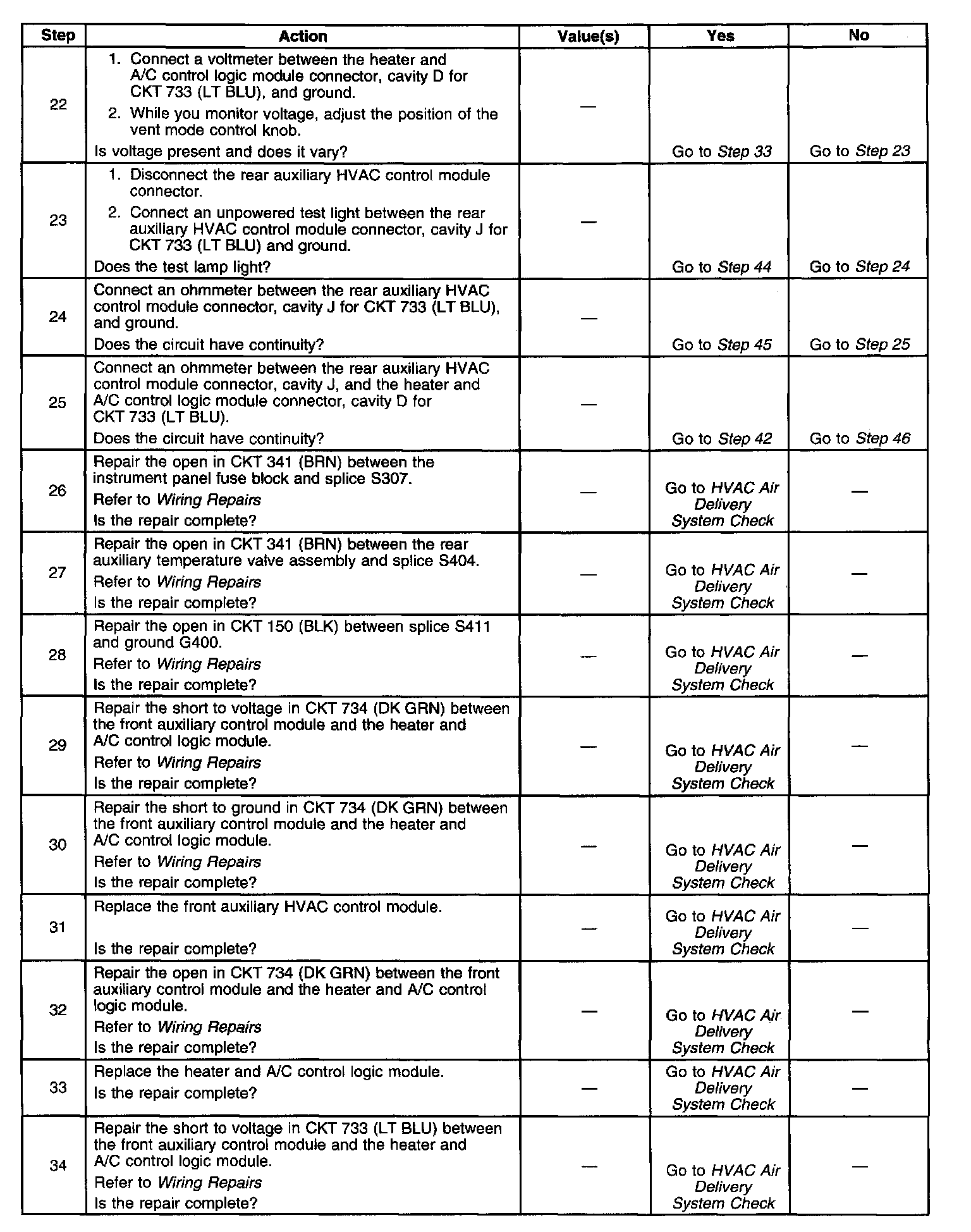

Temperature And Mode Valves Inoperative - Auxiliary: Passenger Van (Part 3 Of 4):

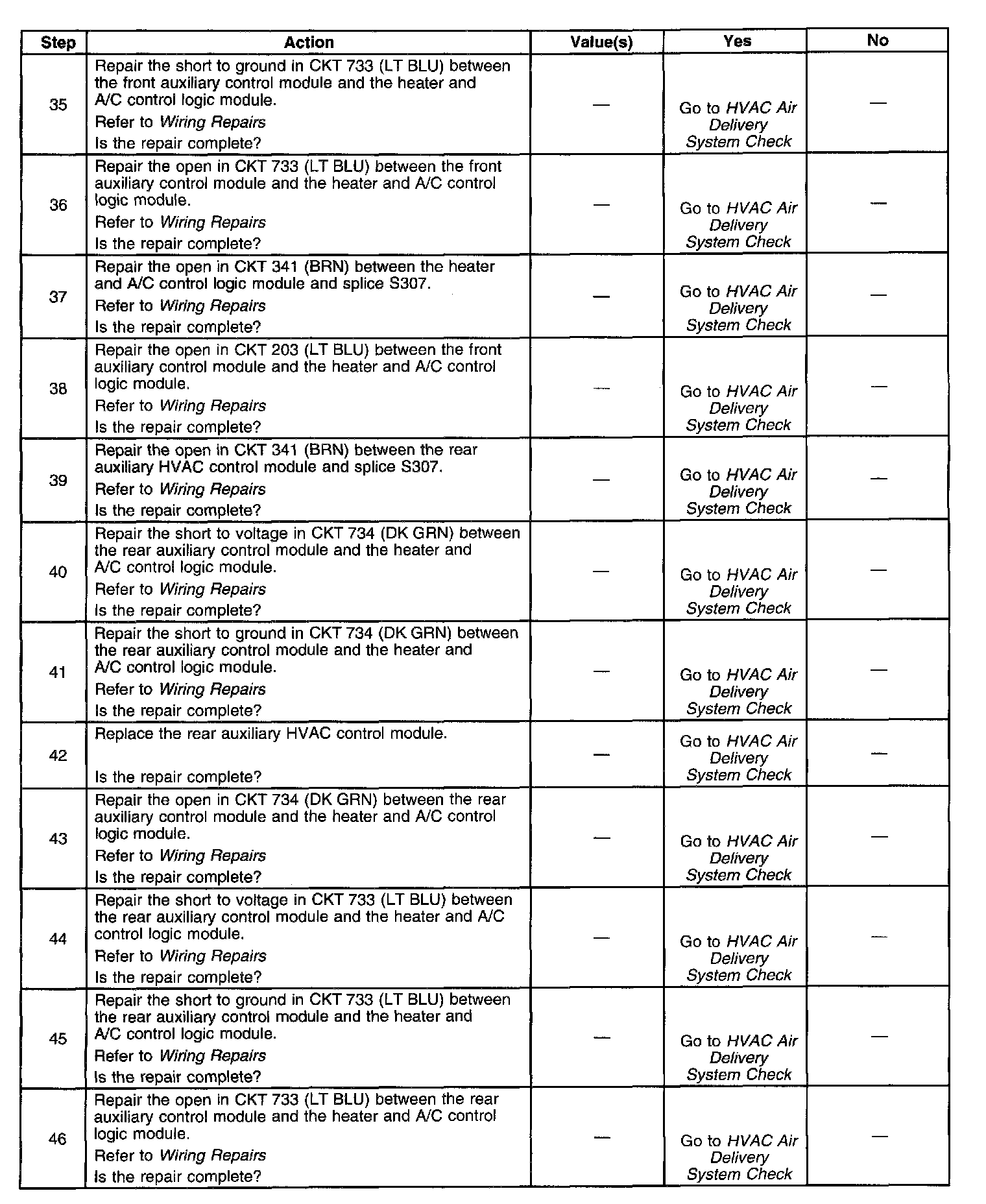

Temperature And Mode Valves Inoperative - Auxiliary: Passenger Van (Part 4 Of 4):
