Temperature Valve Assembly Inoperative - Auxiliary
>>
Cargo Van
Cargo Van

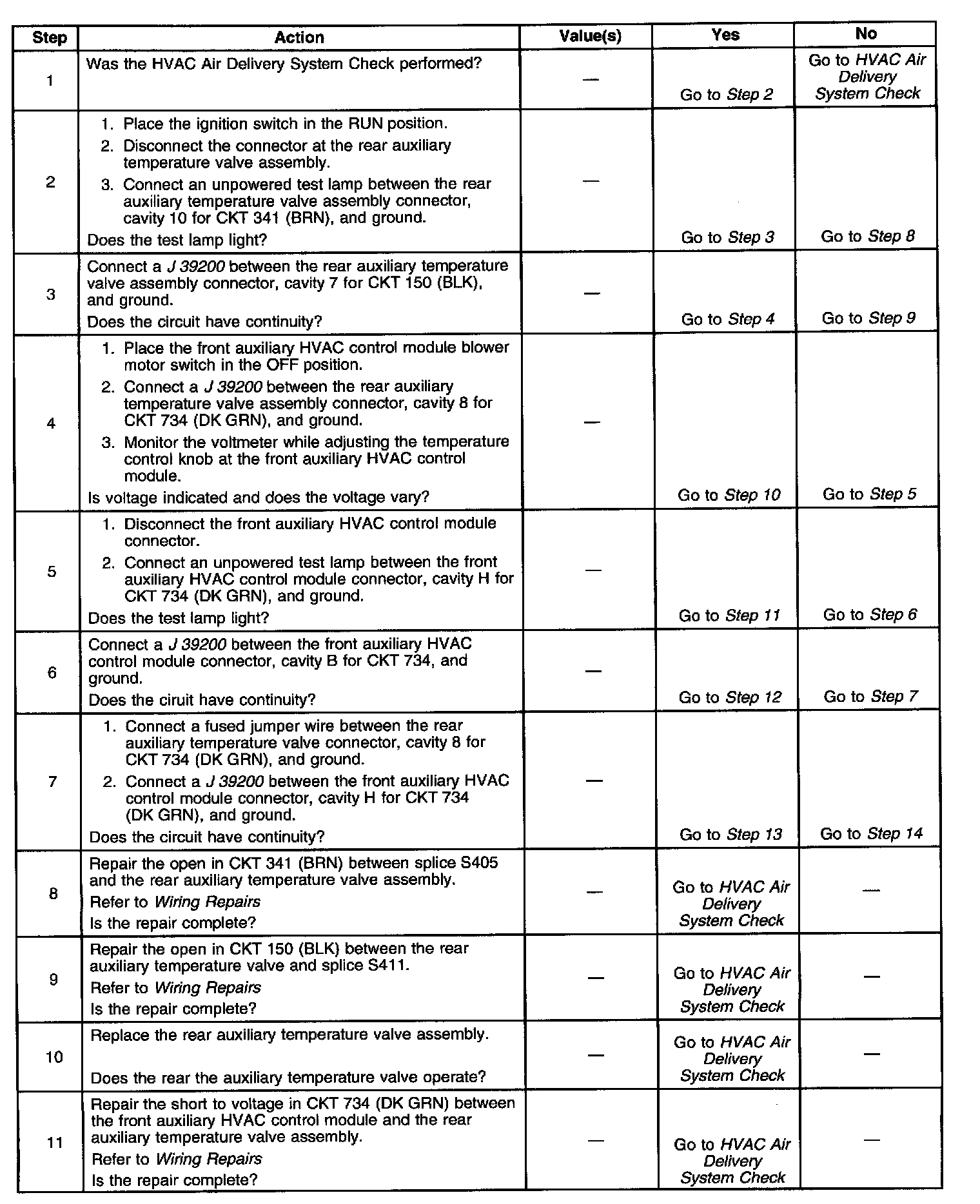

Temperature Valve Assembly Inoperative - Auxiliary: Cargo Van (Part 1 Of 2):

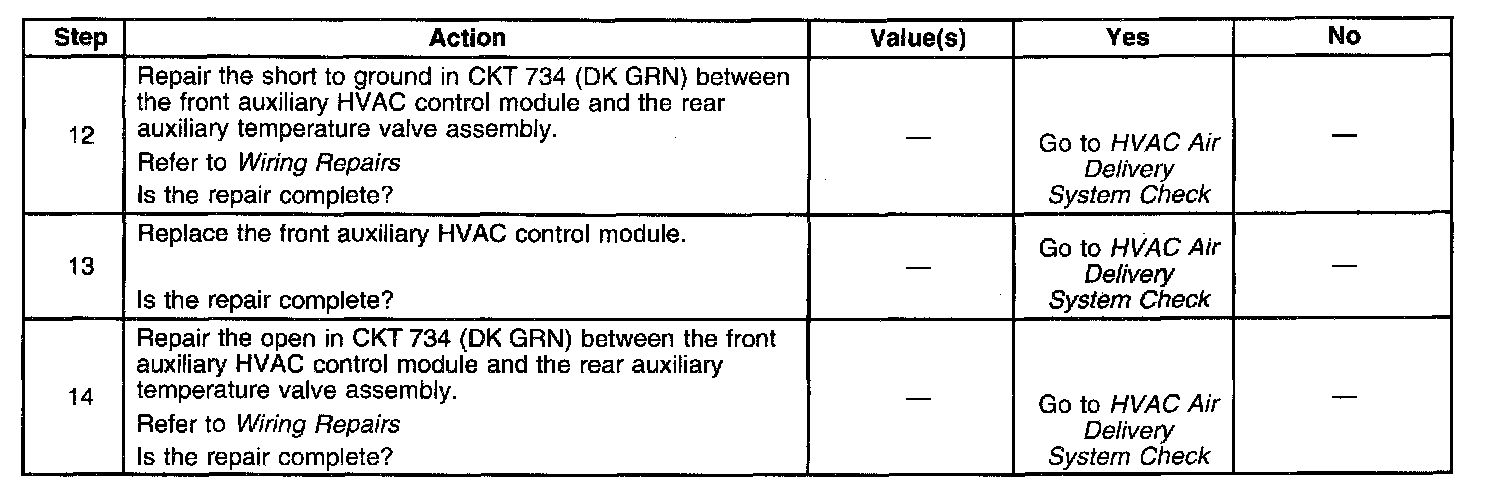

Temperature Valve Assembly Inoperative - Auxiliary: Cargo Van (Part 2 Of 2):
