Home >> Chevy Truck >> 1999 >> Express 1 Ton Van V8-5.7L VIN R >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptoms - HVAC System - Manual >> Blower Motor Operates At High Speed Only - Auxiliary

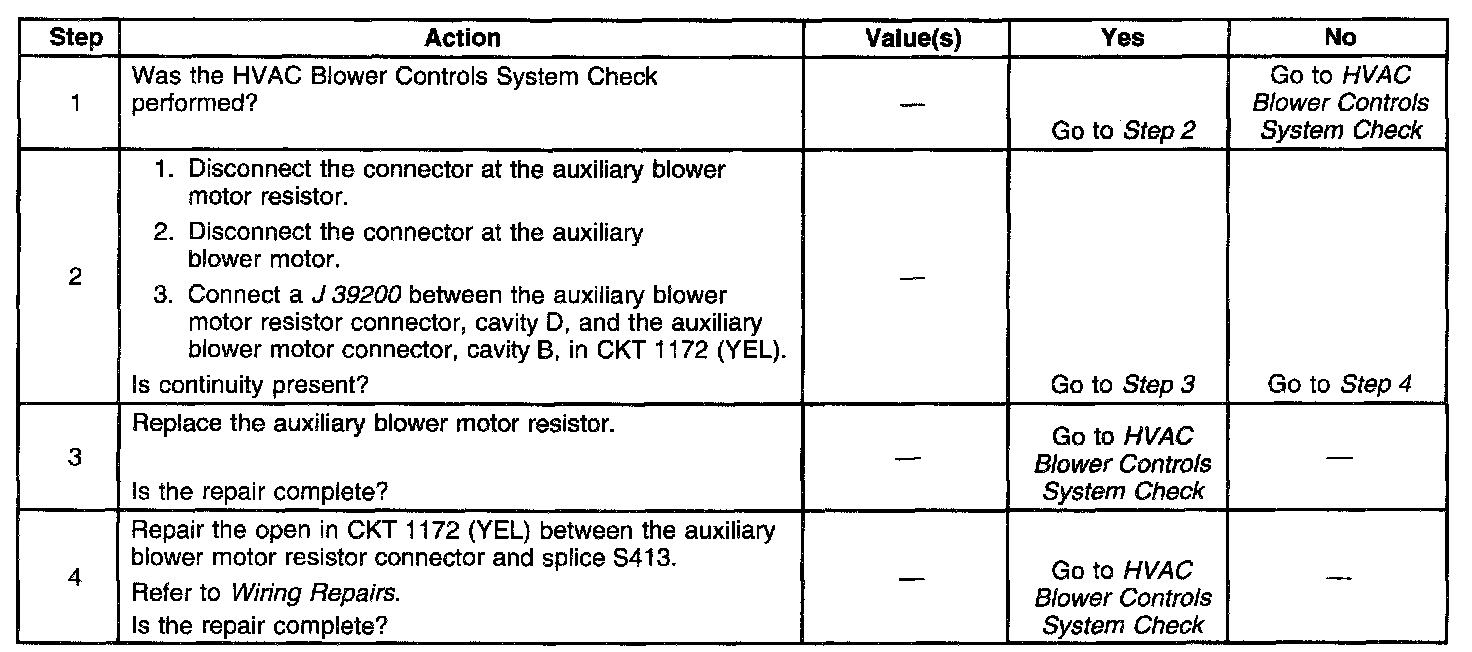

Blower Motor Operates At High Speed Only - Auxiliary

Blower Motor Operates At High Speed Only - Auxiliary:
