Home >> Chevy Truck >> 1999 >> Express 1 Ton Van V8-5.7L VIN R >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptoms - HVAC System - Manual >> Blower Motor Inoperative - At Any Speed - Auxiliary >> Passenger Van

Passenger Van

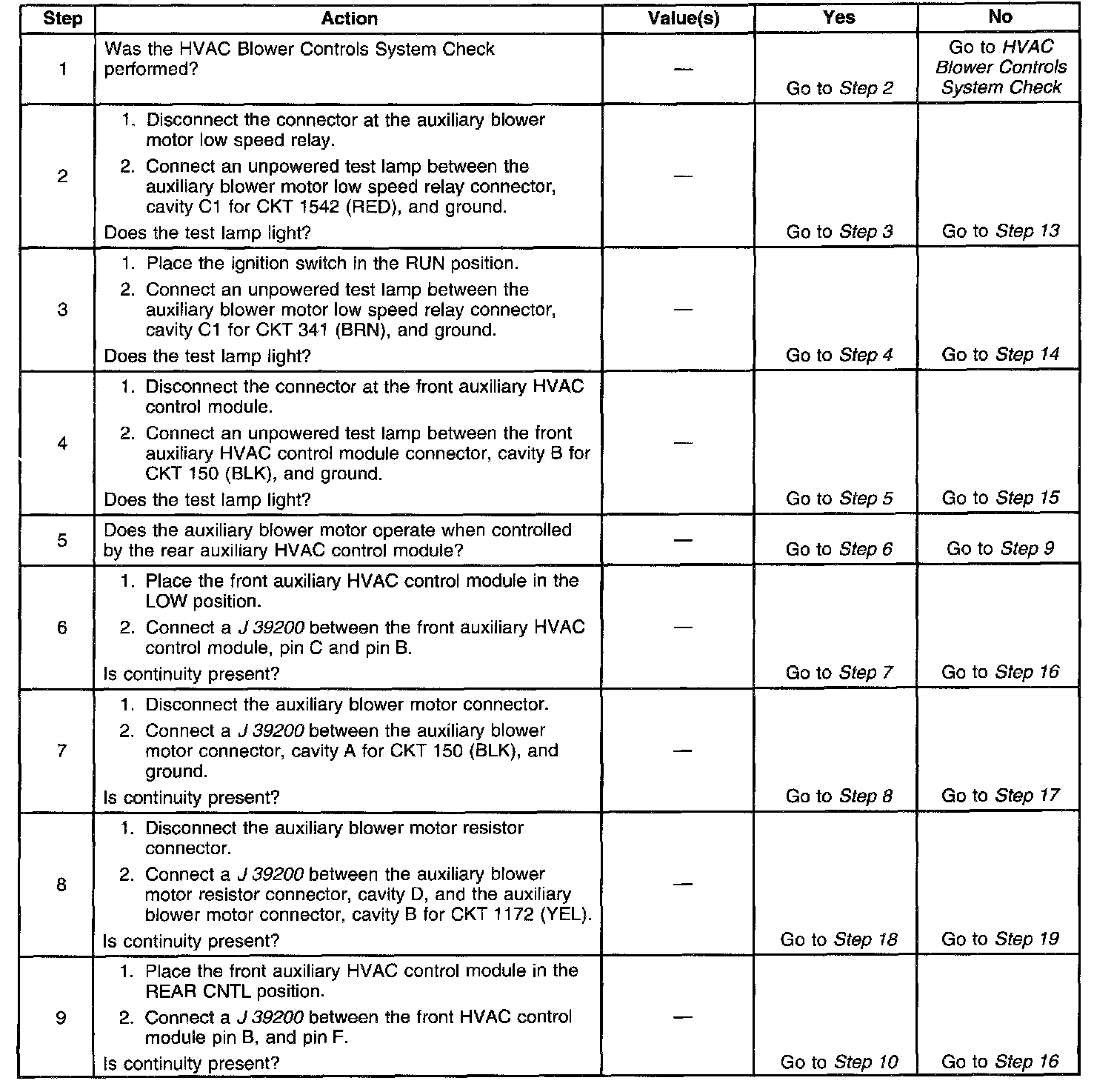

Blower Motor Inoperative At Any Speed - Auxiliary: Passenger Van (Part 1 Of 3):

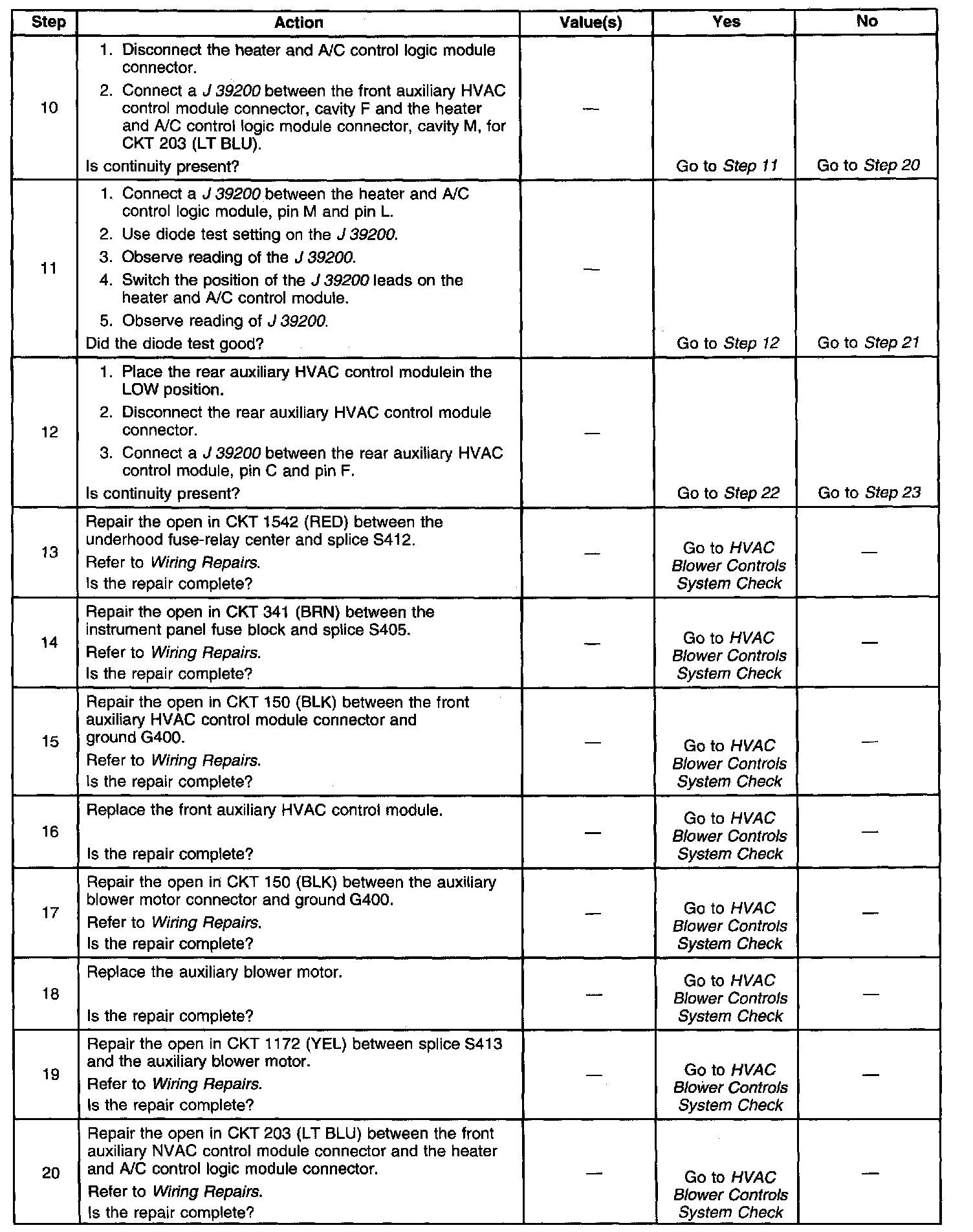

Blower Motor Inoperative At Any Speed - Auxiliary: Passenger Van (Part 2 Of 3):

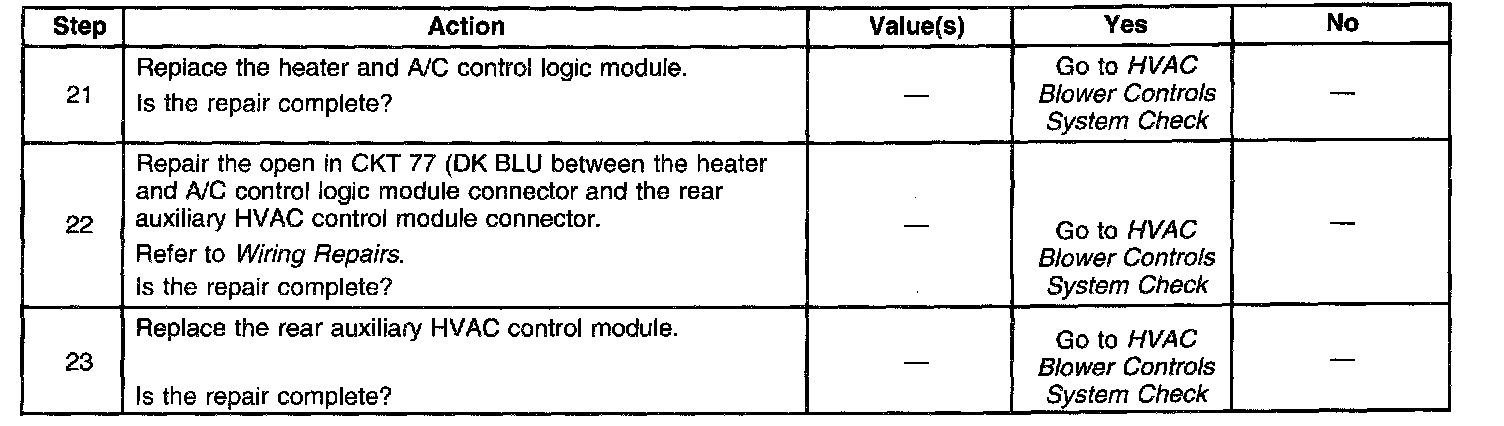

Blower Motor Inoperative At Any Speed - Auxiliary: Passenger Van (Part 3 Of 3):
