System Diagnosis - CCOT
System Diagnosis - CCOT

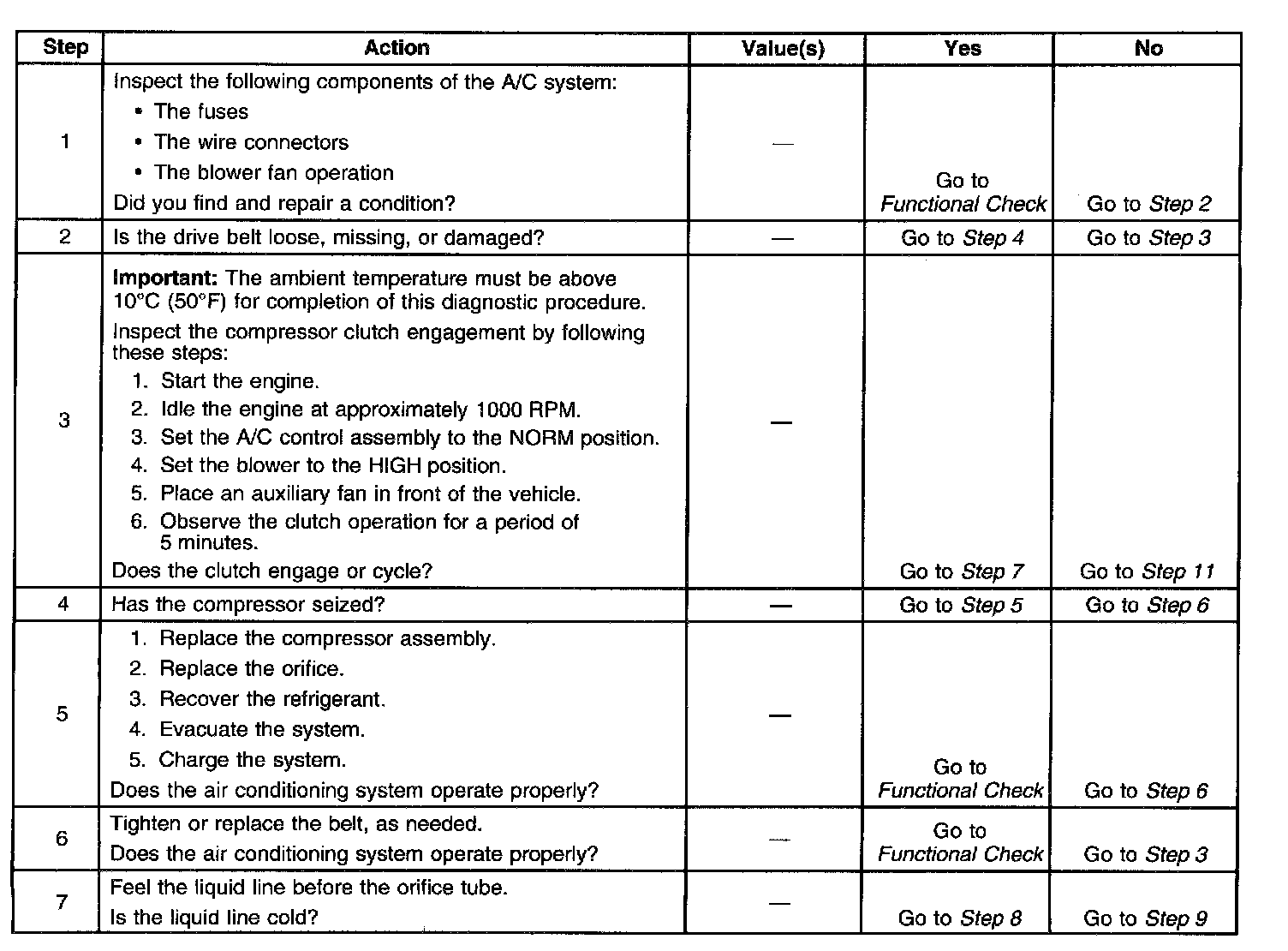

CCOT A/C System Diagnosis (Part 1 Of 4):

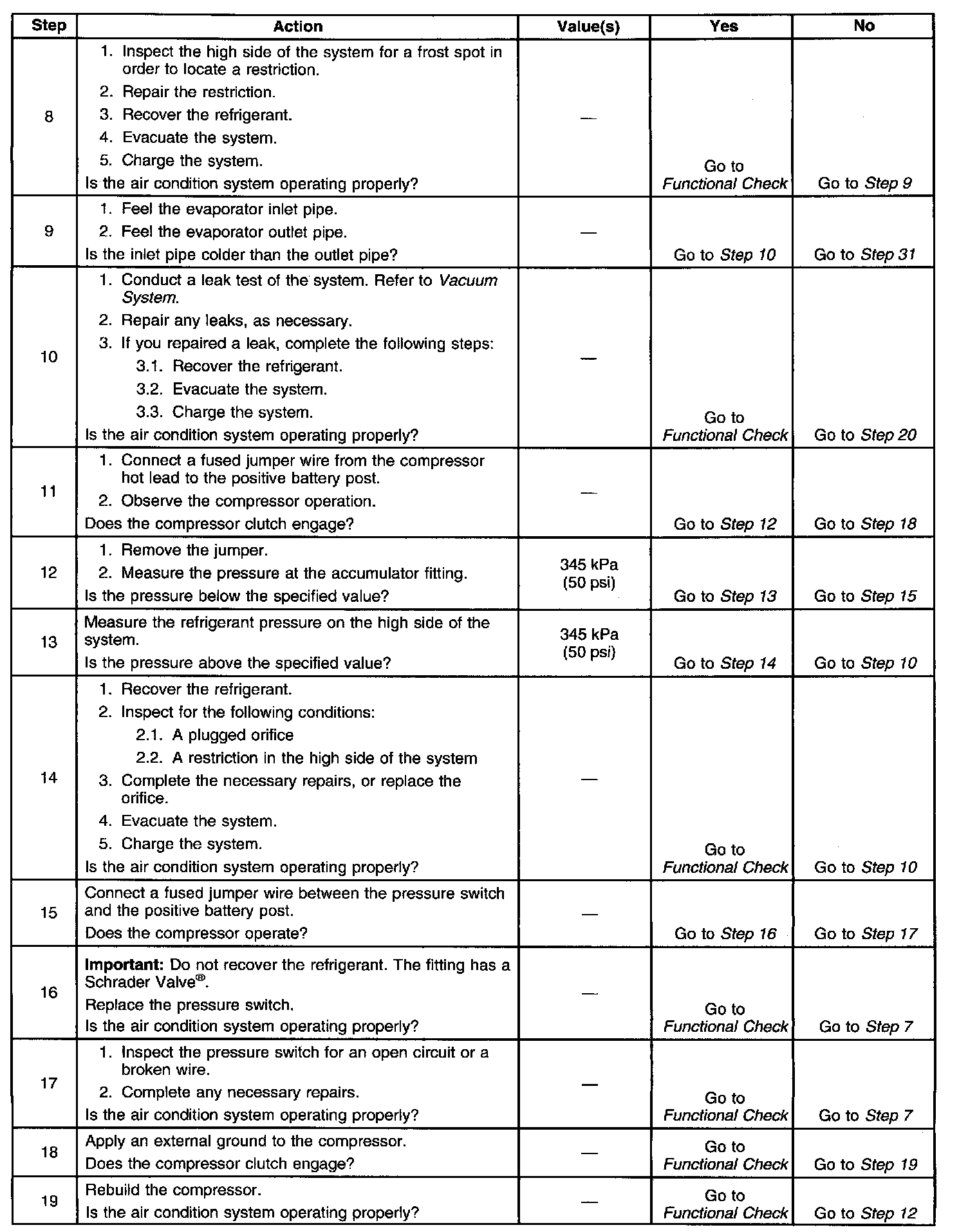

CCOT A/C System Diagnosis (Part 2 Of 4):

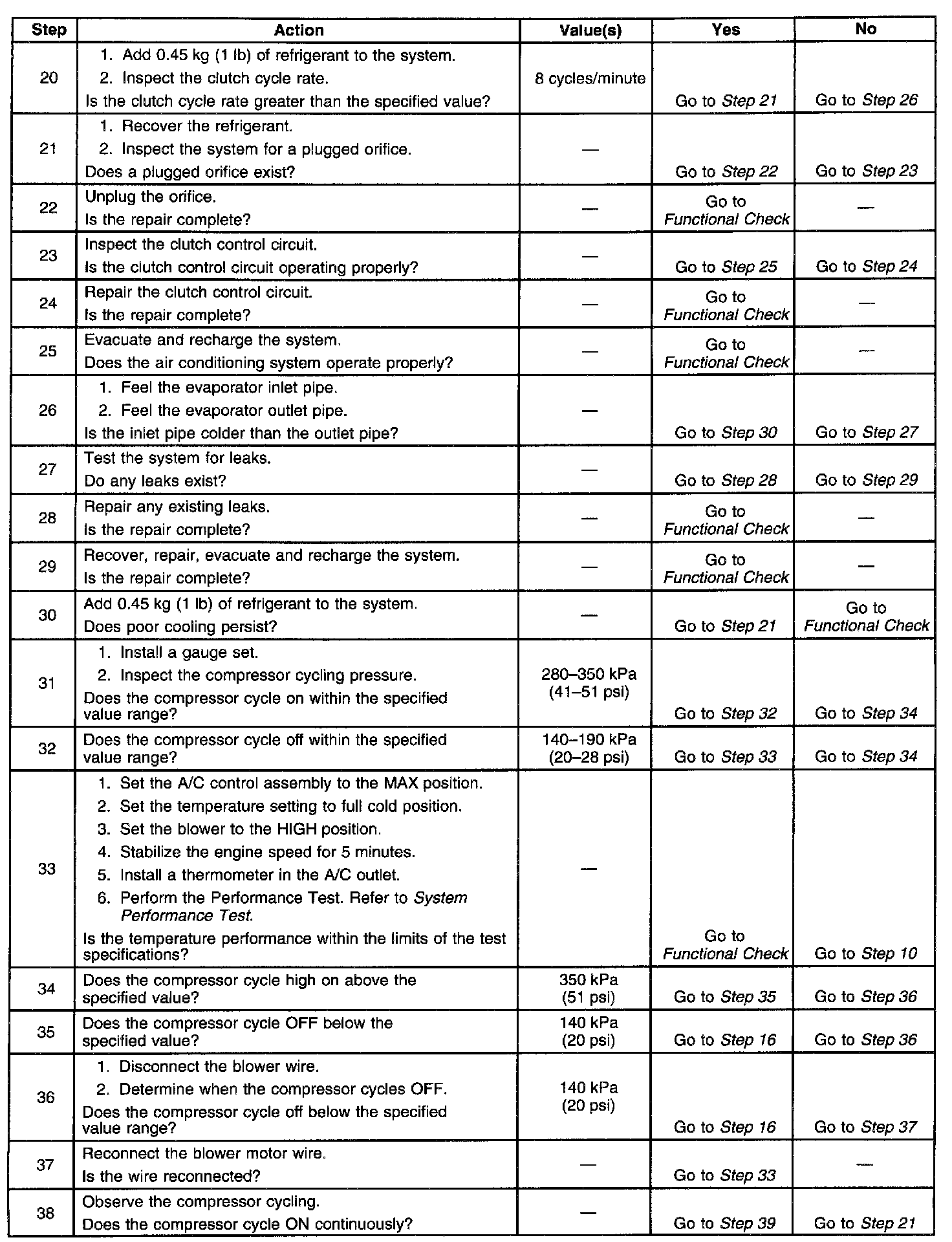

CCOT A/C System Diagnosis (Part 3 Of 4):

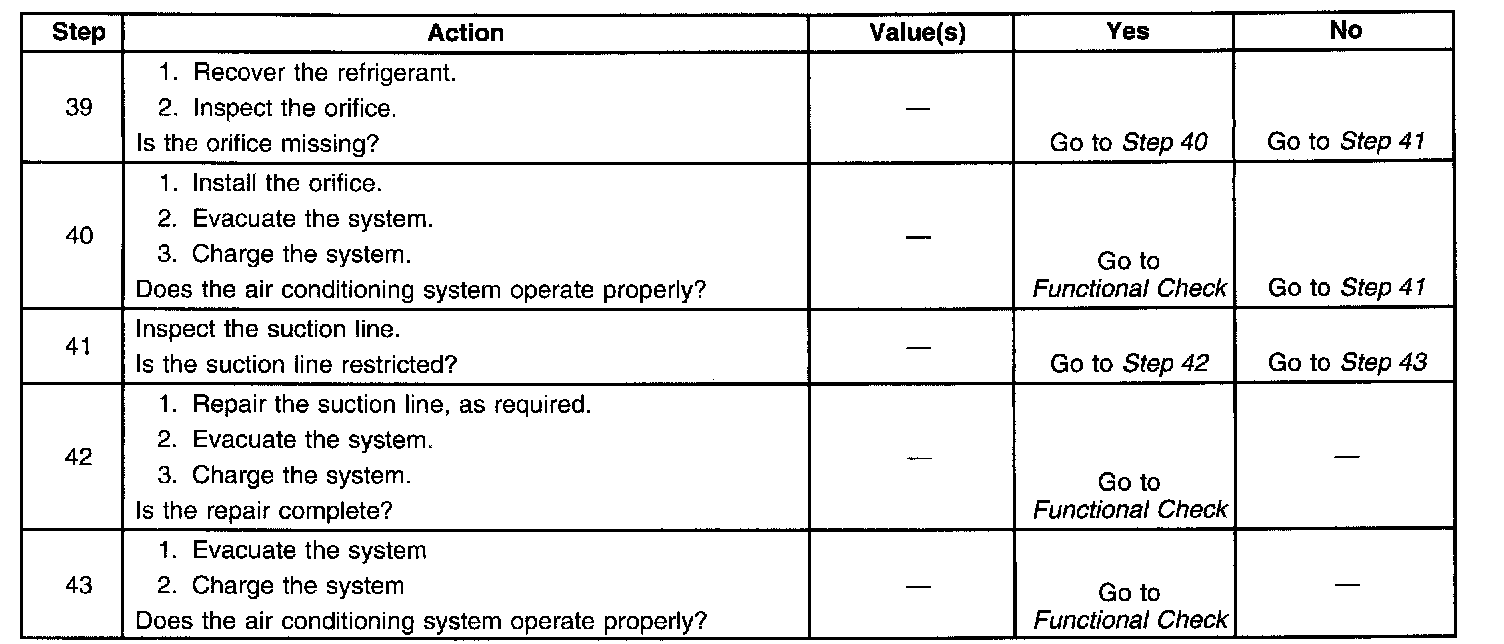

CCOT A/C System Diagnosis (Part 4 Of 4):
