System Check - Heater Blower Controls - Heating & Ventilation System
System Check - Heater Blower Controls - Heating & Ventilation System

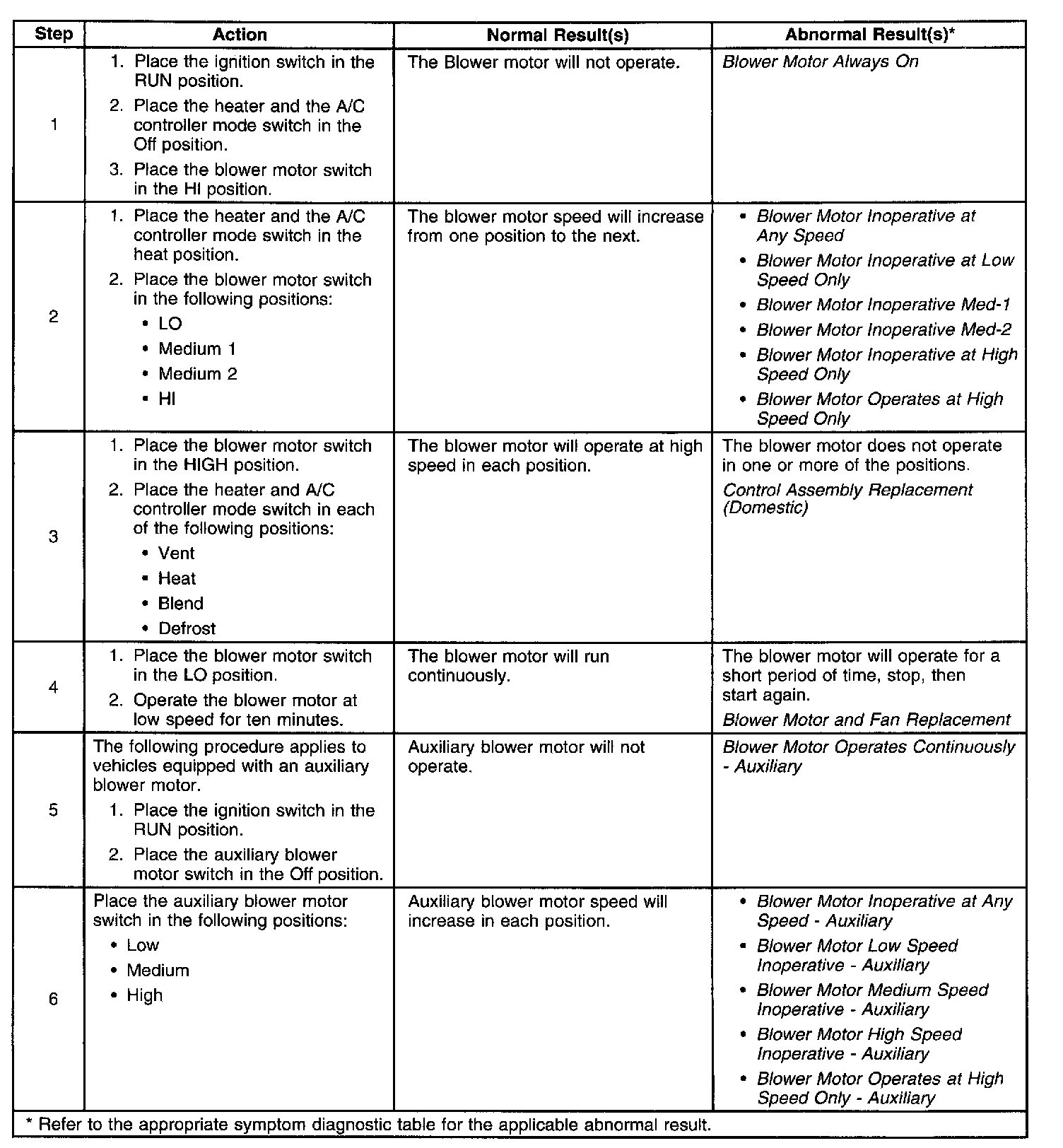

Heater Blower Controls System Check:
