Home >> Chevy Truck >> 1999 >> Express 1 Ton Van V8-5.7L VIN R >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Component Tests and General Diagnostics >> System Check - Compressor Controls - HVAC System - Manual

System Check - Compressor Controls - HVAC System - Manual

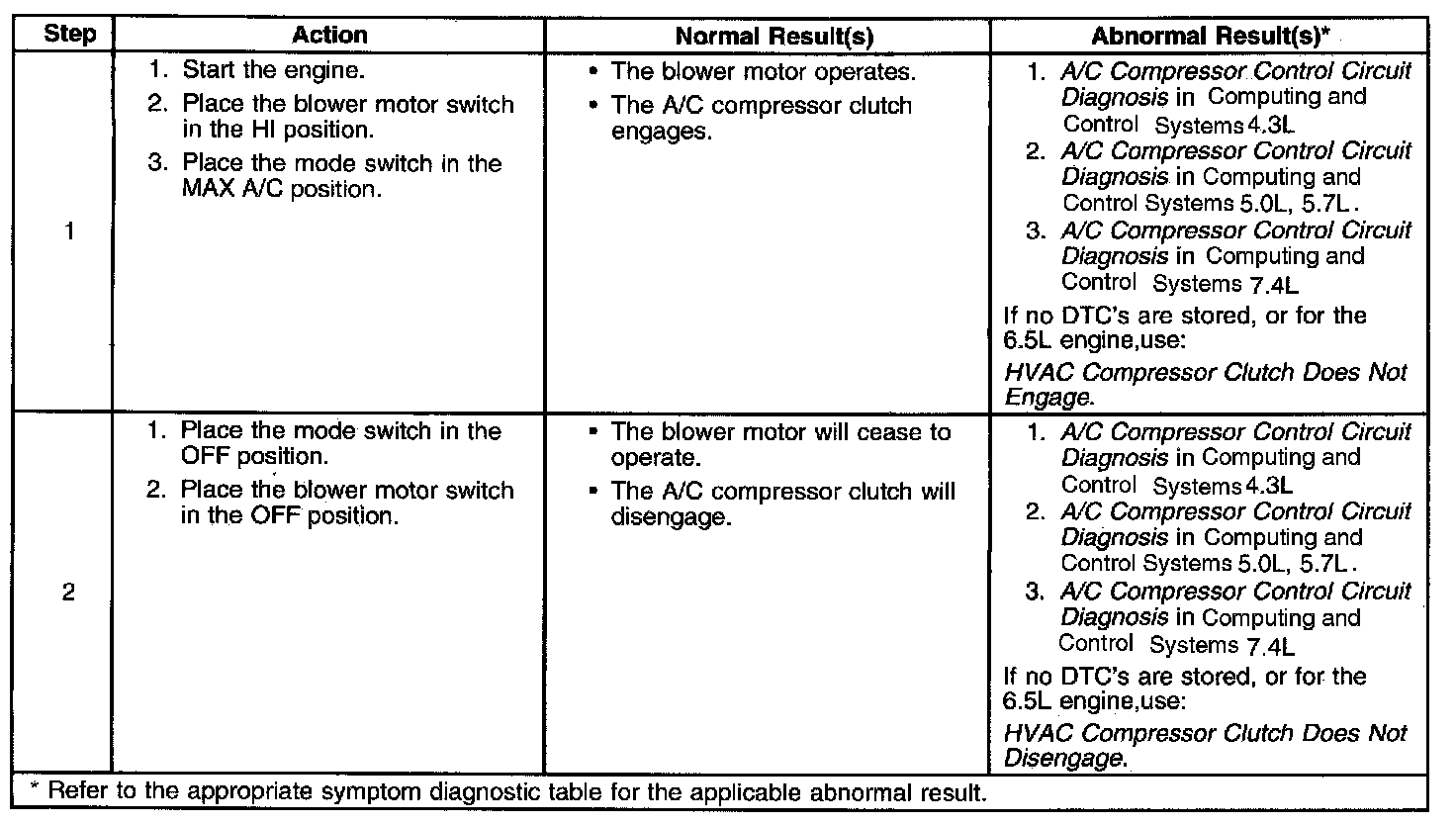

HVAC Compressor Controls System Check:
