System Check - Air Delivery - HVAC System - Manual

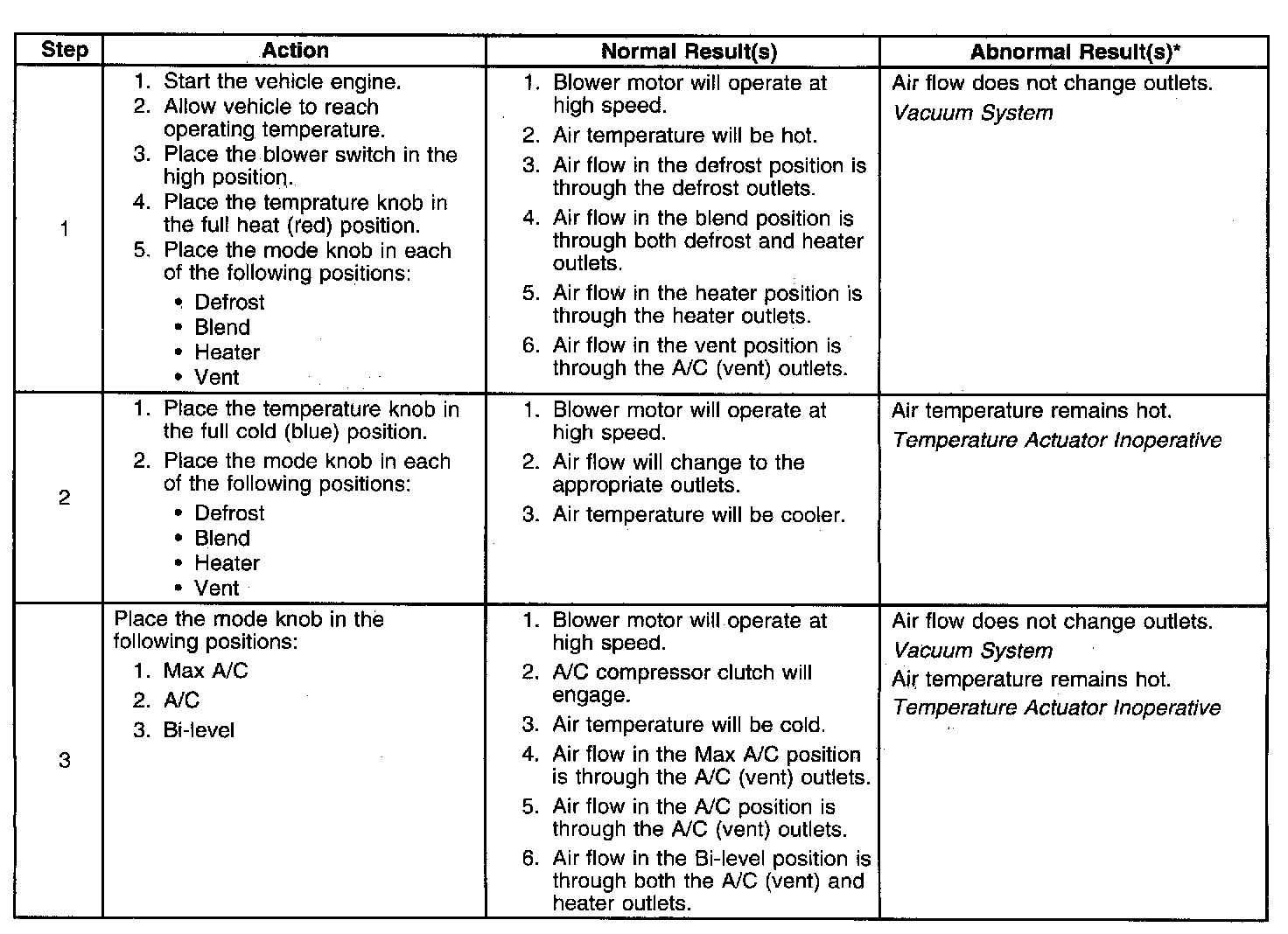

HVAC Air Delivery System Check (Part 1 Of 2):

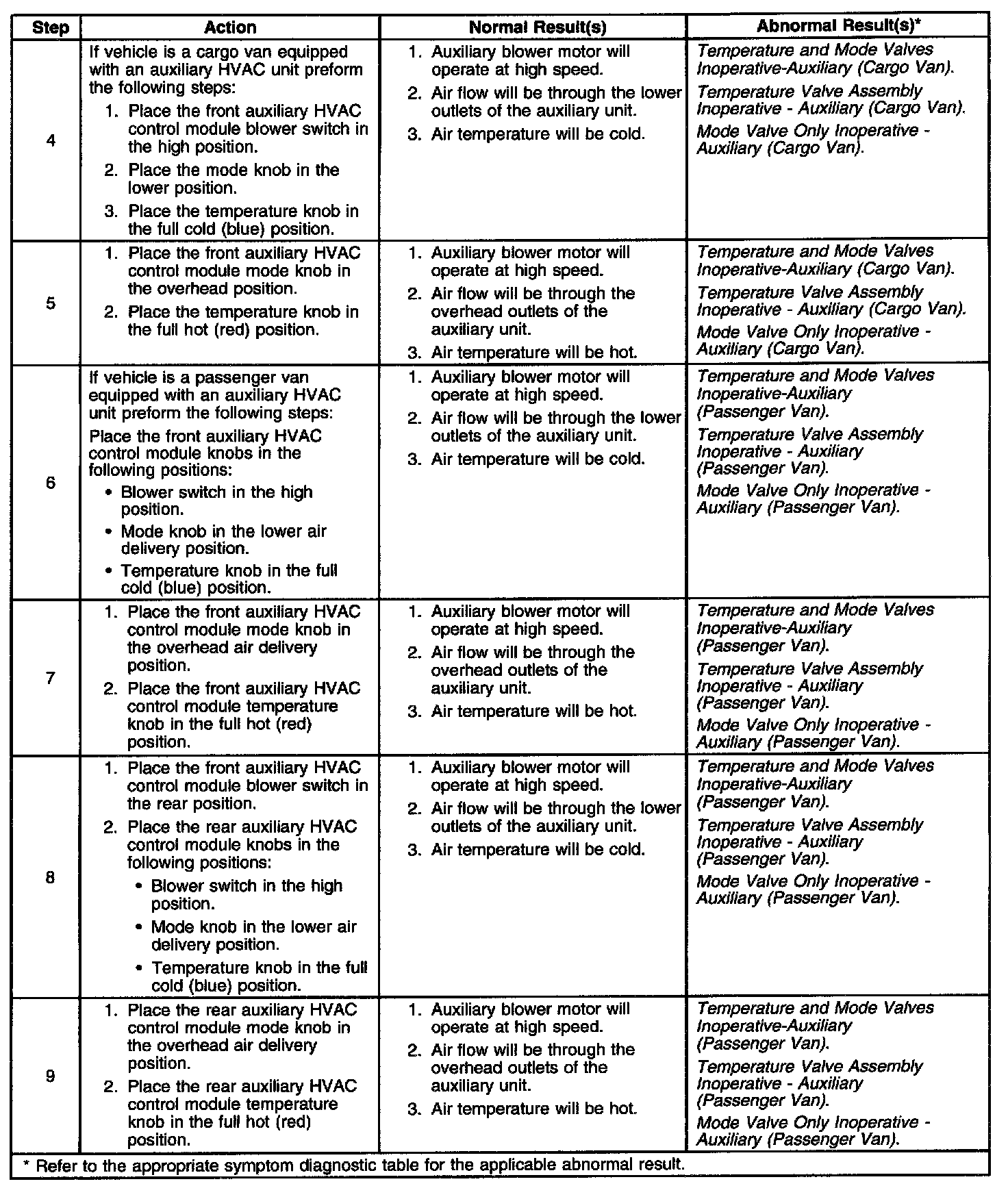

HVAC Air Delivery System Check (Part 2 Of 2):
