Heater Core Replacement - Auxiliary

REMOVAL PROCEDURE

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.




1. Disconnect the negative battery cable.
2. Remove the left rear quarter trim panel.
3. Remove the auxiliary heater case from the vehicle.

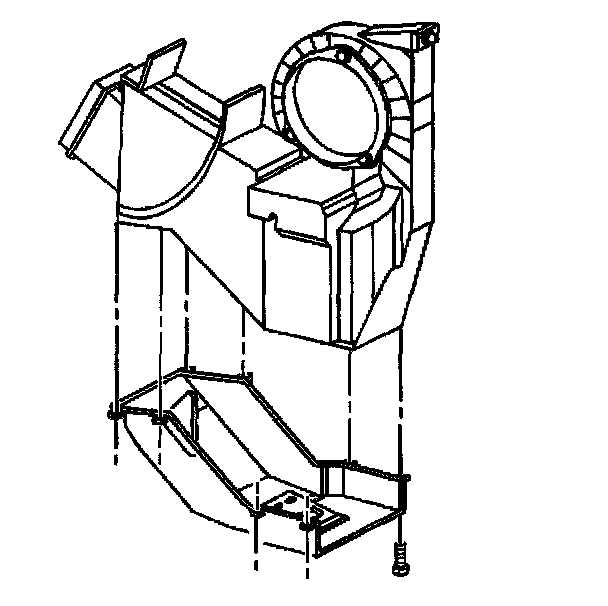

4. Remove the retainers from the bottom of the auxiliary heater case.

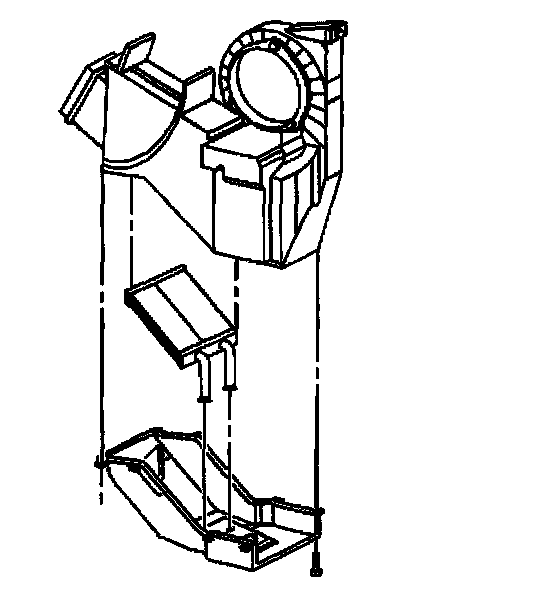

5. Remove the heater core from the case.

INSTALLATION PROCEDURE




1. Install the heater core into the case.
2. Install the retainers into the bottom of the auxiliary heater case.
3. Install the auxiliary heater case into the vehicle.
4. Install the left rear quarter trim panel.
5. Connect the negative battery cable.
